2014 Honda Foreman 4x4 Features

NAVIGATION
Features | Specifications

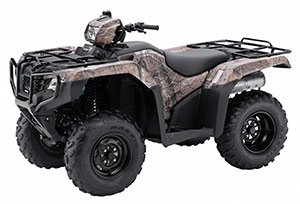

2014 Honda Foreman 4x4

2014 Honda Foreman 4x4

The manual-shift 2014 Honda Foreman 4x4 ATVs serve as tough and seasoned workhorses, whether the day calls for a 14-hour shift at the ranch or a pleasant weekend ride to that special fishing spot. Now,the Honda Foreman has a new chassis featuring longer-travel suspension elevates performance to a whole new level. Revised mapping for the Electronic Fuel Injection program gives the strong liquid-cooled 475cc single-cylinder OHV four-stroke engine improved power delivery and throttle response and increased fuel efficiency for greater range.

Also, a selectable locking front differential has been added to the Foreman's TraxLok selectable 2WD/4WD drive system to further expand its off-road capabilities when the going gets tough. New, aggressively styled bodywork improves mud protection, while combined carrier capacity increases to 264 pounds. The available Electric Power Steering (EPS) features revised settings for lighter steering effort, improved damping characteristics and more linear steering traits. All told, the FourTrax Foreman 4x4 is the perfect way to lighten the day's work or head out for that weekend adventure.

Honda Foreman 4x4 Features & Benefits

  • All-new double-cradle steel frame developed with Computer Aided Engineering features increased stiffness (up 20 percent) and reduced weight for even more precise handling and a smoother ride.
  • New front and rear suspension features an increase in travel to 7.3 inches at both ends plus new shocks for a plush and controlled ride.
  • Honda TraxLok 2WD/4WD system now offers three drive modes: 2WD; 4WD with TraxLok torque-sensing front differential; and now a new 4WD mode with locking front differential to optimize traction.
  • This new TraxLok system also features a Speed Override mode that can be engaged when the front differential is locked, which allows increased wheel speed under severe conditions such as deep mud.
  • Available Electric Power Steering (EPS) system incorporates new ECU mapping for improved linearity in steering response, reduced low-speed steering effort for enhanced maneuverability and decreased kickback traits for improved all-around steering action.
  • Load capacity for both front and rear carriers has been increased to 88 pounds in front, 176 pounds for the rear.
  • Heavy-duty trailer hitch with 848-pound towing capacity.
  • Twin-headlight system has been redesigned and now features 35-watt headlights with a more focused light distribution pattern for improved visibility after dark.
  • Assembled in Timmonsville, South Carolina, using domestically and globally sourced parts.
  • Transferable one-year limited warranty; extended coverage available with a Honda Protection Plan.

Honda Foreman 4x4 Engine / Drivetrain
  • Powerful liquid-cooled 475cc single-cylinder OHV four-stroke engine is longitudinally mounted in the frame allowing direct driveshaft alignment to front and rear wheels for improved drivetrain efficiency (see Technology Section).
  • Overhead-valve design creates a compact engine for excellent ground clearance while maintaining a broad, easy-to-use powerband.
  • Super-heavy-duty automatic clutch with a low-rpm engagement point for excellent driveability and towing capability.
  • New mapping for the Programmed Fuel Injection (PGM-FI) system improves power delivery and throttle response, and increases fuel efficiency for greater range.
  • Five-speed manual transmission with Reverse includes an ultra-low first gear.
  • Stainless-steel exhaust system includes a USDA-qualified spark arrester/muffler designed for quiet operation without servicing for long-lasting performance.

Honda Foreman 4x4 Chassis / Suspension
  • Adjustable spring preload now featured on all shocks allows suspension tuning to match varying loads and riding conditions.
  • New enclosed-axle type swingarm with optimized stiffness for improved toughness and durability, and excellent handling performance.
  • New rubber swingarm pivot bushings yield increased low-speed ride comfort and increased durability.
  • Rear brake is located inside the right rear wheel for improved durability and increased ground clearance.
  • All-new one-piece tank/side cover allows easy access (no tools required) for maintenance.
  • New, aggressively styled bodywork provides improved mud and water protection.
  • Revolutionary Electric Power Steering (EPS)-EPS model only.
  • New three-point mounting setup for the EPS system makes the entire steering mechanism more rigid for even more precise steering.
  • Increased AC generator output of 481 watts to allow powering more electrical accessories.
  • New Honda Phantom Camo™ blends into a wide range of field environments, and new Honda application processes provide better graphic durability and improved resistance to fuel spillage.
  • New meter display with added functions like a Maintenance Minder system that notifies when it is time for service.
  • Top assist light now operates independently of front headlights so it can be turned off while carrying a load on the front carrier.
  • New fuel pump is derived from Honda automobile technology. It mounts in the fuel tank for better heat isolation and offers increased filter life.
  • New plastic CV joint boots are more durable and tear-resistant.
  • New sealed steering knuckle bearings for extended durability.
  • Newly optimized rider triangle for added comfort.
  • A 20mm (0.8 inch) increase in seat foam thickness and softer seat foam increase rider comfort.
  • Dual front hydraulic disc brakes and sealed mechanical rear drum brake for strong stopping power.
  • Full-length synthetic lower skidplate with integrated front brush guard.
  • Ground clearance increased to 7.5 inches.

Honda Foreman 4x4 Genuine Accessories
Windscreen, Soft Rack Bag (front), Soft Rack Bag (rear), Fender Bag, Outdoor Storage Cover, Heated Grips, Plow Blade, Plow Push Tube, Plow Mount Kit, Winch Kit, Winch Mount Kit, Recoil Starter, 12V Power Outlet, Front A-Arm Guards, Aluminum Frame Skidplate, Side Pocket Net, Accessory Sub Harness
