2008 Honda ATV Model Information

2014 Honda Foreman Rubicon 500
Automatic Transmission Honda Rubicon

Honda Foreman Rubicon Features & Benefits

For years the Honda Foreman Rubicon has stood tall as a favorite among riders who demand an especially capable ATV, as it built up an iconic reputation for its off-road prowess. The Honda Rubicon 500 has earned its cred the hard way, through years of real-world use. Its unique continuously variable Hondamatic automatic transmission with true engine braking has proven to be efficient, maintenance-free and extremely rugged.

The Honda Foreman Rubicon 500 automatic transmission can be set in different modes for maximum performance or maximum torque, as well as in Electric Shift Program (ESP) mode that gives the rider push-button control. Add in a torque-sensitive front differential along with Honda’s TraxLok selectable 2WD/4WD system plus the option of Electric Power Steering (EPS), and it’s easy to see why so many off-road enthusiasts continue to stick with the Rubicon. New color for 2014 includes White with Black wheels.

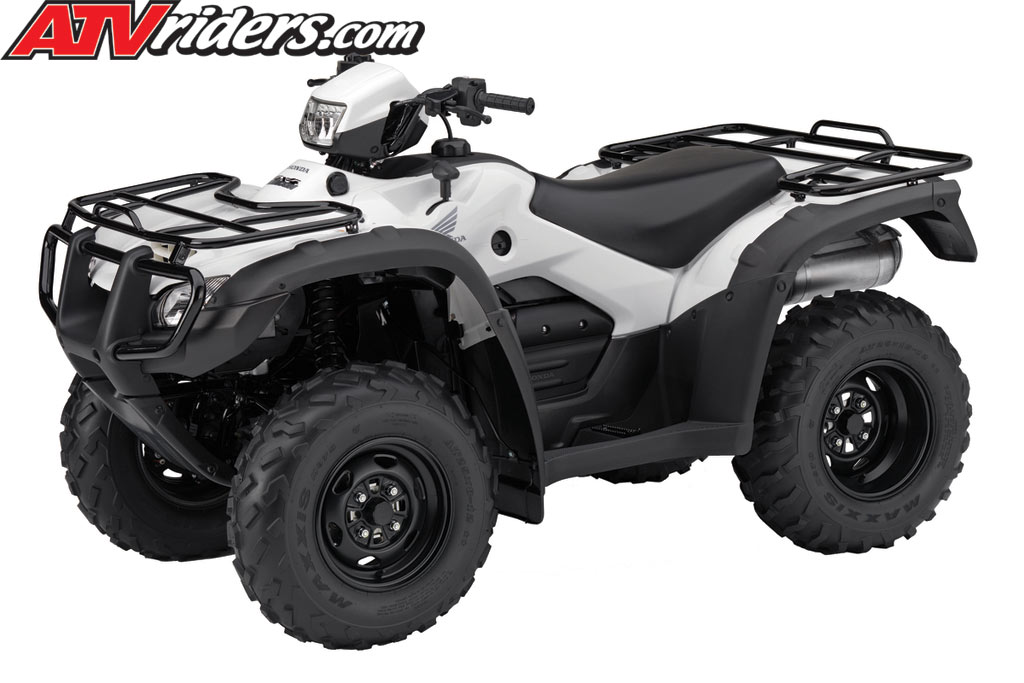

2014 Honda Foreman Rubicon

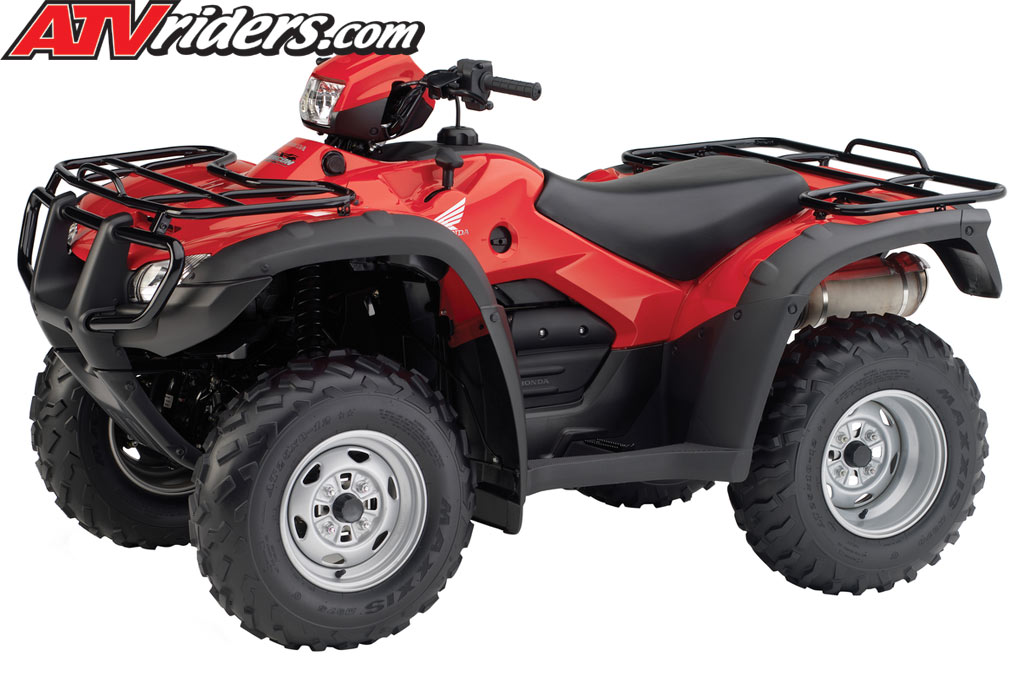

2014 Honda Foreman Rubicon

2014 Honda Foreman Rubicon 500

Honda Foreman Rubicon 500 Specifications

Model: TRX500FA / TRX500FGA (with EPS and GPS)
Engine Type: 499cc liquid-cooled OHV dry-sump longitudinally mounted single-cylinder four-stroke
Bore and Stroke: 92.0mm x 75.0mm
Induction: 36mm constant-velocity carburetor
Ignition: CD with electronic advance
Starter: Electric with auxiliary recoil
Clutch:
Transmission: Fully automatic hydro-mechanical, continuously variable with electronic controls
Driveline: Direct front and rear driveshafts with TraxLok and Torque-Sensitive Front Differential
Suspension: Front: Independent double-wishbone; 6.7 inches travel
Rear: Swingarm with dual shock absorbers; 6.7 inches travel
Brakes: Front: 180mm front discs with single-piston calipers
Rear: Sealed mechanical drum
Tires: Front: 25 x 8-12
Rear: 25 x 10-12
Length: 83.0 inches
Width: 46.8 inches
Height: 46.4 inches
Seat Height: 33.9 inches
Ground Clearance: 7.5 inches
Wheelbase: 50.6 inches
Turning Radius: 10.8 feet
Towing capacity: 850 pounds
Fuel Capacity: 4.0 gallons, including  0.7-gallon reserve
Colors White, Olive, Red
Curb Weight*: 630 pounds (TRX500FA) / 648 pounds (TRX500FGA)

*Includes all standard equipment, required fluids and full tank of fuel--ready to ride.
Meets current CARB and EPA off-road emissions standards.
Recommended for riders 16 years of age and older.
