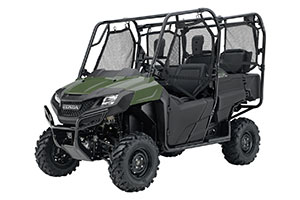

2014 Honda Pioneer
700 4 Specs
Four Seat Honda Pioneer 700 4
2014
Honda Pioneer 700 4 Specs |
ENGINE |
Engine
Type |
675cc liquid-cooled OHV
single-cylinder four-stroke |
Bore
And Stroke |
102.0mm x 82.6mm |
Compression
Ratio |
9.2:1 |
Induction |
Fuel Injection (PGM-FI), 40mm throttle
body |
Ignition |
Full-transistorized with electronic
advance |
DRIVE
TRAIN |
Clutch |
Automatic |
Transmission |
Automotive-style with hydraulic torque
converter, three forward gears and Reverse.
Three drive modes include 2WD, 4WD and
4WD with differential lock |
Driveline |
Direct front and rear driveshafts |
CHASSIS
/ SUSPENSION / BRAKES |
Front
Suspension |
Independent double-wishbone;
7.9 inches travel |
Rear
Suspension |
Independent double-wishbone; 9.1 inches
travel |
Front
Brake |
200mm hydraulic disc |
Rear
Brake |
170mm hydraulic disc |
Front
Tires |
25 x 8-12 |
Rear
Tires |
25 x 10-12 |
DIMENSIONS |
Length |
114.8 inches |
Width |
60.0 inches |
Height |
78.3 inches |
Wheelbase |
76.8 inches |
Bed
Capacity |
1000 pounds |
Towing
Capacity |
1500 pounds |
Ground
Clearance |
10.5 inches |
Turning
Radius |
14.8 feet |
Curb
Weight |
1396 pounds |
Fuel
Capacity |
8.2 gallons, including 1.2-gallon
reserve |
| OTHER |
Note |
Recommended for Drivers
16 years of age and older. |
Available
Colors |
Red, Olive, Honda Phantom Camo™ |
Model
Id |
SXS700M4 |
FACTORY
WARRANTY INFORMATION |
Duration |
One Year |
Description |
Transferable limited warranty; extended
coverage available with a Honda Protection
Plan |
