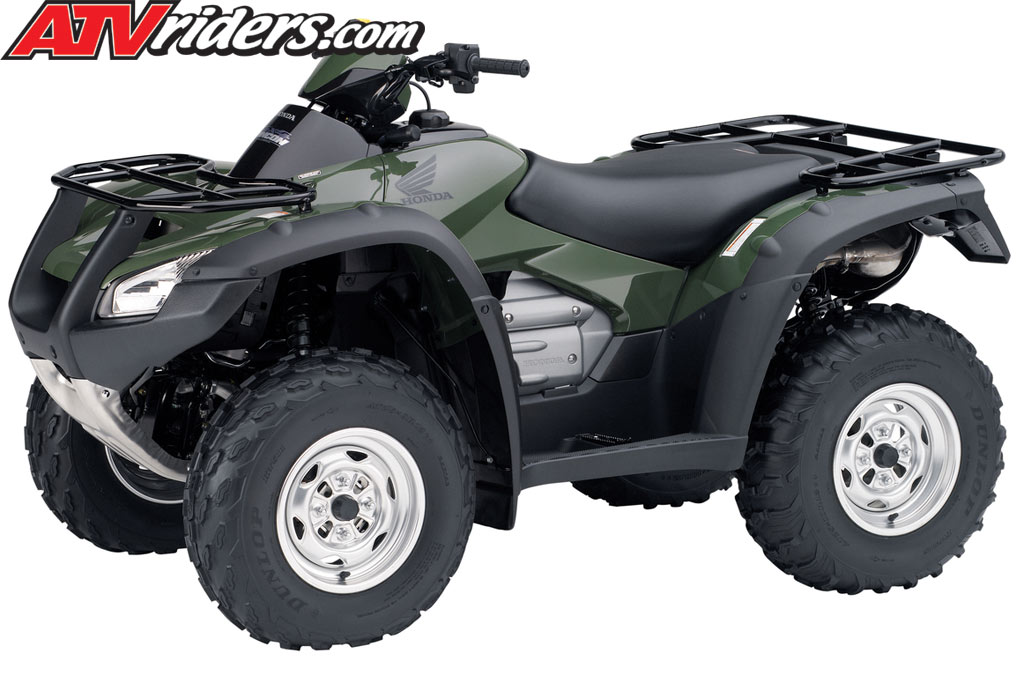

2014 Honda Rincon 4x4

Honda Rincon 680 4x4 Features & Benefits

The legendary Honda Rincon 680 4x4 tops Honda’s line of ATVs, thanks to stellar features that include a powerful 675cc engine, independent rear suspension, electronic fuel injection, automotive-style Honda automatic transmission that features a hydraulic torque converter, along with front and rear disc brakes and more. This popular choice comes with a host of features that all come together to place the Honda Rincon in a class of one. New color for 2014 includes Beige with Black wheels.

2014 Honda Rincon
2014 Honda Rincon

2014 Honda Rincon 4x4

Honda Rincon 680 4x4 Specifications

Model: TRX680FA
Engine Type: 675cc liquid-cooled OHV semi-dry-sump longitudinally mounted single-cylinder four-stroke
Bore and Stroke: 102.0mm x 82.6mm
Induction: Electronic fuel injection (PGM-FI), 40mm throttle bodies
Ignition: Full-transistorized type with electronic advance
Starter: Electric with auxiliary recoil
Transmission: Automatic with hydraulic torque converter, three forward gears, Reverse and electronic controls
Driveline: Direct front and rear driveshafts with TraxLok® and Torque-Sensitive Front Differential
Suspension Front: Independent double-wishbone; 6.9 inches travel
Rear: Independent double-wishbone; 8.0 inches travel
Brakes Front: Dual hydraulic 180mm disc
Rear: Single hydraulic disc
Tires Front: 25 x 8-12 radial
Rear: 25 x 10-12 radial
Length: 83.2 inches
Width: 46.8 inches
Height: 47.5 inches
Seat Height: 34.5 inches
Ground Clearance: 10.0 inches
Wheelbase: 50.8 inches
Fuel Capacity: 4.3 gallons, including 1.2-gallon reserve
Turning Radius: 10.8 feet
Colors: Beige, Olive, Red
Curb Weight*: 648 pounds
*Includes all standard equipment, required fluids and full tank of fuel--ready to ride.
