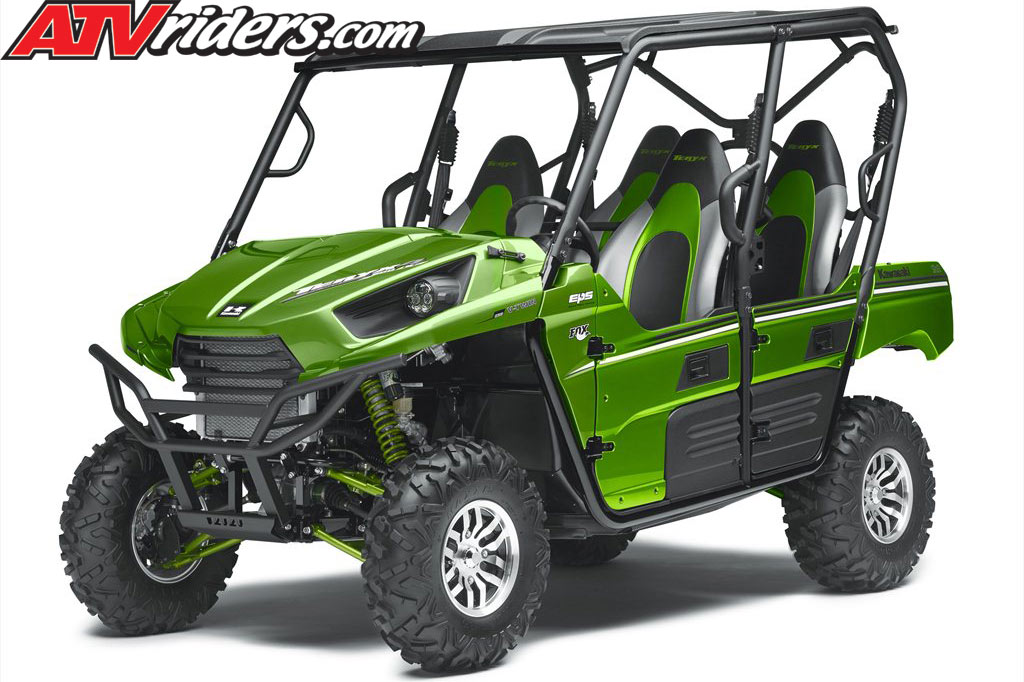

2014 Kawasaki TERYX4 750 EPS LE 4x4 SxS / UTV

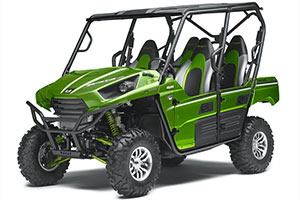

2014 Kawasaki TERYX4 750 EPS LE 4x4 SxS / UTV

2014 Kawasaki Teryx4 750 EPS LE 4x4 SxS Specifications
Engine Liquid-cooled, 90-degree, four-stroke V-twin
Valve System SOHC, four valves per cylinder
Displacement 783cc
Starting System Electric
Bore x Stroke 85 x 66mm
Compression Ratio 10.7:1
Fuel System DFI, 2 x Mikuni 36mm throttle bodies
Ignition TCBI w/ electronic advance
Transmission Continuously variable belt-drive transmission with high and low range, plus reverse, and Kawasaki Engine Brake Control
Final drive Selectable four-wheel drive with Variable Front Differential Control, shaft
Frame type Double-X design using large-diameter, thin-walled, high-tensile tubular steel
Front suspension / wheel travel Dual A-arm w/ new piggyback reservoir coil-over Fox Podium shocks, with adjustable spring preload and 24-way compression damping / 8.0 in.
Rear suspension / wheel travel Independent Rear Suspension (IRS) w/ new piggyback reservoir coil-over Fox Podium shocks, with adjustable spring preload and 24-way compression damping / 8.3 in.
Front Tire Size Maxxis Bighorn 2.0 26x9-12
Rear Tire Size Maxxis Bighorn 2.0 26x11-12
Front brakes Dual hydraulic discs with 2-piston calipers
Rear Brakes Sealed, oil-bathed, multi-disc
Overall length 124.8 in.
Overall width 61.6 in.
Overall height 79.4 in.
Wheelbase 85.7 in.
Ground clearance 11.1 in.
Lighting (2) 35W headlights, (2) 8W taillight, 27W stoplight
Cargo Bed Capacity 249 lbs., 47.6 W x 17.9 L x 8.7 in. H
Towing Capacity 1,300 lbs.
Curb weight 1580.3 lbs.
Fuel capacity 7.9 gal.
Instruments Multi-function Digital Meter with speedometer, fuel gauge, clock hour meter, odometer, dual trip meter and parking brake, CVT belt, R/N/P/4WD, water temp and oil pressure indicators
Color Choices Candy Lime Green, Candy Burnt Orange
Warranty 6 months base warranty
MSRP $16,999
