2012

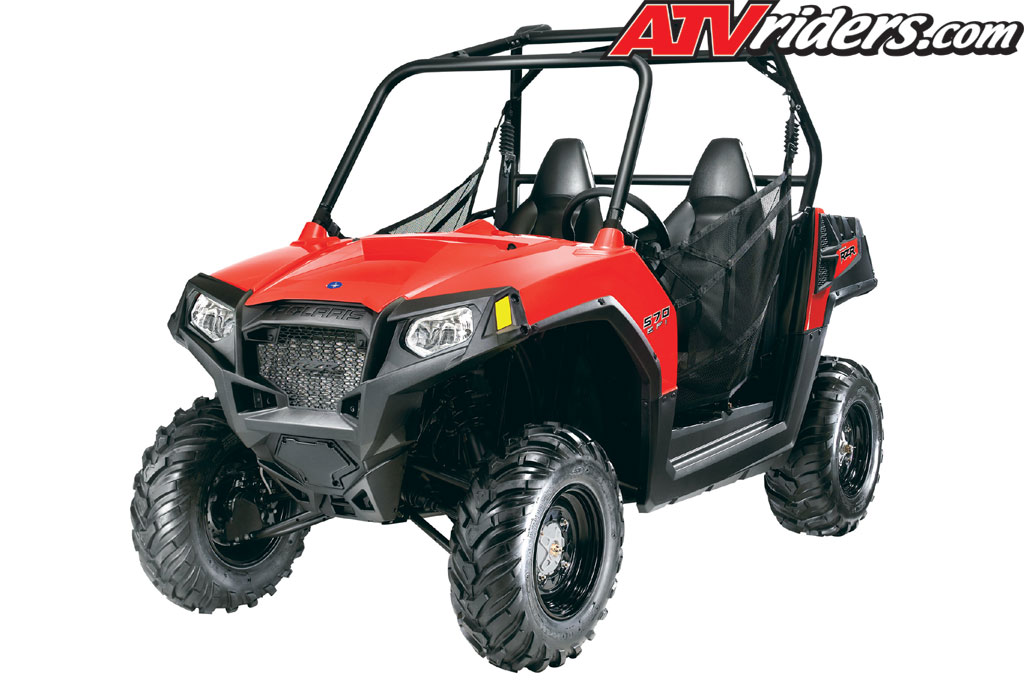

Polaris Ranger RZR 570 SxS / UTV Specifications
2012
Polaris Ranger RZR 570 SxS / UTV Specifications |
Engine Type |
4-Stroke DOHC Single Cylinder |
Displacement |
567cc |
Fuel System |
Electronic Fuel Injection |
Cooling |
Liquid |
Transmission/Final Drive |
Automatic PVT P/R/N/L/H; Shaft |
Drive System |
On-Demand
True AWD/2WD |
Engine Braking System/
Active Decent Control |
Available on Limited Edition |
Front Suspension |
Dual A-Arm with Anti-Sway Bar 9"
(22.9 cm)
Travel |
Rear Suspension |
Dual A-Arm, Rolled with Anti-Sway
Bar 9.5" (24
cm) Travel |
Front/Rear Brakes |
4-Wheel Hydraulic Disc with Dual-Bore
Front Calipers |
Parking Brake |
Park in Transmission |
Front Tires |
25 x 8-12; Ancla |
Rear Tires |
25 x 10-12; Ancla |
Wheels |
Stamped Steel |
Wheelbase |
77" (196 cm) |
Dry Weight |
970 lb (429 kg) |
Overall Vehicle Size |
(L x W x H)
107.5" x 50" x 69"
(273 x 127 x 175.2 cm) |
Ground Clearance |
10" (25 cm) |
Fuel Capacity |
7.25 gal (27.4 L) |
Bed Box Dimension |
20" x 40" x 9" |
Rear Box Capacity
|
300 lb |
Payload Capacity |
740 lb (335.6 kg) |
Hitch Towing Rating
|
1,500 lb (680.4 kg) |
Cargo System |
Lock & Ride |
Lighting |
Halogen, 50W |
Electronic Power Steering |
Available on Limited Edition |
Instrumentation |
Digital Gauge, Speedometer,
Odometer, Tachometer, Tripmeter, Hour
Meter, Clock, Gear Indicator, Fuel
Gauge, Hi-Temp/Low-Batt
Lights, DC Outlet |
Colors |
Indy Red |
|
|
|
www.polarisindustries.com
2100 Highway 55
Medina, MN 55340
(763) 417-8650
