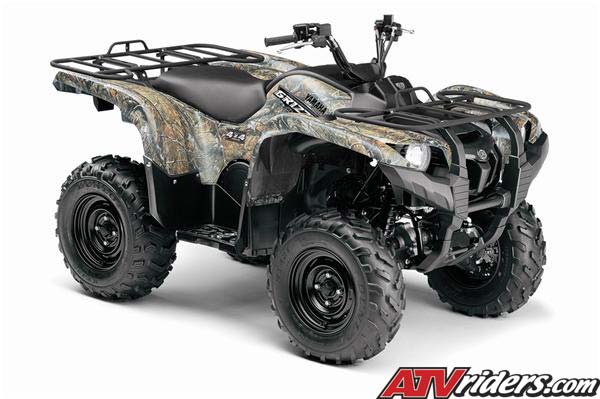

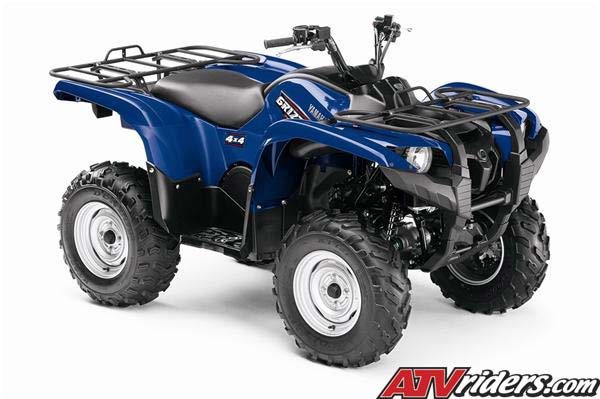

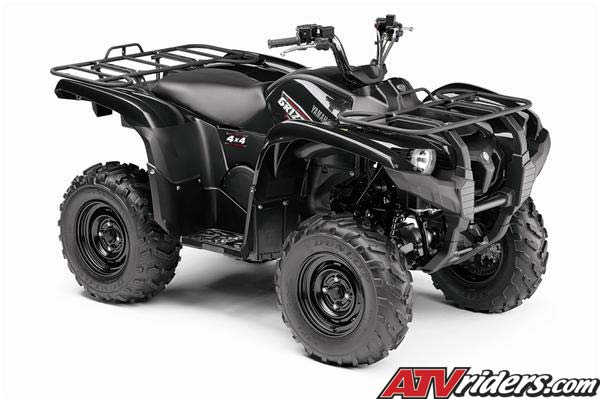

2009 Yamaha Grizzly 700 FI
Auto. 4x4 Utility ATV Info
Grizzly
700R FI ATV Key Features
|
- Most powerful Grizzly
ever: 686cc liquid-cooled, four-stroke
engine and light weight add up to the
best power-to-weight ratio of any utility
model in the industry.
- Electronic fuel injection
means instantaneous cold starts and
optimal performance in all conditions
and at all altitudes.
- Industry-exclusive,
fully automatic Ultramatic® transmission
is the most advanced drive system in
ATV-ing. An automatic centrifugal clutch
maintains constant belt tension for
reduced belt wear and industry-exclusive
all-wheel downhill engine braking.
- Industry-exclusive,
three-position On-Command® In/Out
4WD feature lets you switch between
2WD, limited-slip 4WD and fully locked
differential 4WD— all with the
simple push of a button.
- Fully independent
long-travel four-wheel suspension with
WideArc A-arms up front and fi ve-way
preload-adjustable shocks provides maximum
ground clearance for unparalleled comfort
over rough terrain.
- Trick digital instrument
panel boasts a multifunction LCD display
with speedometer, odometer, dual tripmeter,
hourmeter, 4WD status, transmission
position, clock and fuel gauge.
|
Grizzly
700R FI ATV Engine
|
- RaptorTM-based four-valve
combustion chamber design produces a
potent combination of low-rev torque,
right-now throttle response and high
horsepower.
- Compact engine design
features a 35-degree cylinder angle
for ground clearance and lower seat
height for quick steering and maneuverability.
- Electronic fuel injection
provides a perfect fuel/air mixture
regardless of temperature or altitude,
and makes cold starts a snap.
- Gear-driven crankshaft
balancer shaft and new-design rubber-damper
engine mounts reduce vibration.
- Ceramic-composite
cylinder liners provide outstanding
durability and heat dissipation; forged
piston is light and strong and rides
a carburized, chrome-moly connecting
rod.
- Two-lobe overhead
cam and a pair of needle-roller rocker
arms reduce friction by 50 percent for
increased fuel efficiency and torque.
- Mikuni® fuel injection
with 44mm bore and throttle position
sensor means easy cold starts and flawless
fuel delivery in nearly any condition.
- Pushbutton electric
start with seven-disk torque-limiting
damper assembly protects the starter
motor.
- Straight driveshaft
layout to the front differential eliminates
U-joints for reduced friction, vibration
and maintenance.
- Stainless steel exhaust
system features aluminum heat shields
and a screen-type spark arrestor for
great power with minimum noise output.
- High-capacity aluminum
radiator with fan-assist delivers maximum
cooling efficiency and is positioned
high in the frame for optimal protection.
- Automatic cam chain
tensioner reduces engine maintenance
and helps extend engine life.
- Five-position shift
lever with H, L, N, R and P gates provides
positive Ultramatic transmission operation.
- Override button allows
engine to make maximum rpm in full Diff
Lock mode.
- Electronic servo-activated
2WD/4WD/Diff Lock via the On-Command®
system.
- Sealed drive case
keeps out water and debris to help prevent
belt from slipping.
|
Grizzly
700R FI ATV Chassis/Suspension
|
- Comfortable chassis
provides outstanding handling and maneuverability.
- WideArc front suspension
A-arms provide outstanding ground clearance.
- Five-way preload-adjustable
shocks provide a controlled, comfortable
ride, whatever the load or trail conditions.
- Four-wheel hydraulic
disc brakes serve up consistent, long-lasting
braking power under all sorts of nasty
conditions.
- 5.3-gallon fuel tank
is located under the seat for excellent
mass centralization and handling; there’s
a 4.8-liter waterproof storage compartment
under there, too.
- 11.8 inches of ground
clearance and full-length composite
skidplate deliver maximum underbelly
protection while enhancing terrainability.
- 25x8-12 front and
25x10-12 rear Dunlop® tires provide
responsive steering and handling and
excellent comfort.
- Rugged injection-molded
front bumper and CV joint guards protect
against rock and debris damage.
|
|
- An analog speedometer
shows your velocity at a glance.
- LCD instrument display
contains fuel injection information,
as well as bar-type fuel gauge, odometer,
trip meter, clock, and Diff Lock indicator.
- Rugged steel cargo
racks with special, extra-durable wrinkle
paint finish can pack a total of 286
pounds combined (99 front, 187 rear).
- Center-mounted, heavy-duty
trailer hitch comes standard and can
tow more than 1200 pounds.
- Large, specially designed
seat is extra plush and widely contoured
for all-day rider comfort.
- Dual 35-watt multireflector
halogen bulb headlights with high/ low
beams light up the night.
|
