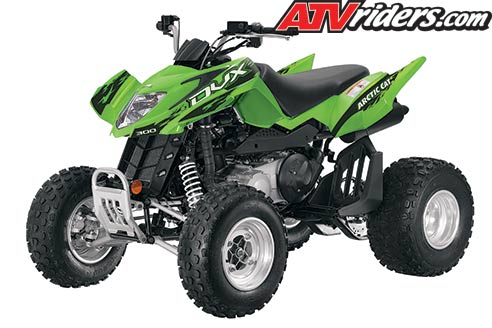

2015 Arctic Cat DVX 300 Specs

Displacement (cc)	270cc
Engine Type	SOHC, 4-Stroke, 4-Valve
Bore & Stroke (mm)	72.7x65.2
Cooling System	liquid w/fan
Transmission	Automatic CVT with Forward, Neutral & Reverse
Power Steering	NA
Drive System	2 WD
Overall Size	66x43.5x44.5 (167x110.5x113)
Wheel Base	46.4 (117.9)
Suspension Travel Front	5 (12.7)
Suspension Travel Rear	5 (12.7)
Ground Clearance	10.5 (26.7)
Suspension Type - Front	Double A-Arm
Suspension Type - Rear	Swing Arm
Front Brakes	Hydraulic Disc
Rear Brakes	Hydraulic Disc
Suspension Type - Rear	Swing Arm
Tire Front	Kenda Klaw XCF / 21x7-10
Tire Rear	Kenda Klaw XCF / 20x11-9
Wheels	Aluminum
Max Fuel Capacity	3.3 (12.5)
Rack/Box Capacity	0
Towing Capacity)	0
Hitch Type	None
Alternator Capacity	12.5 Amps
Instrumentation	Neutral / Reverse LED
Lighting	Single Front Headlight / Single Rear Taillight
Dry Weight (lbs)	425 (192.8)
Available Colors	Lime Green
Additonal Features	Removable Fenders
