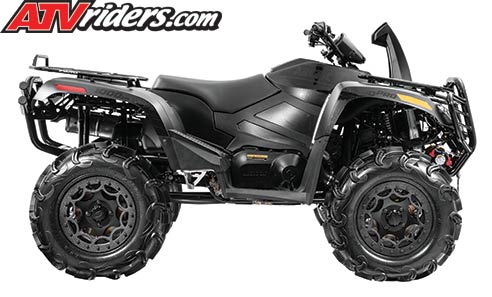

2015 Arctic Cat MudPro 1000 Specs

Displacement (cc)	951 cc
Engine Type	SOHC, 4-Stroke, 4 Valve w / EFI
Bore & Stroke (mm)	92x71.6
Cooling System	liquid w/fan
Transmission	Automatic CVT with EBS Hi / Lo Range, Neutral, Reverse & Park
Power Steering	Electronic Power Steering (EPS)
Drive System	2/4 WD + Electric Front Differential Lock
Overall Size	94.5x47.5x51.8 (240x120.7x131.6)
Wheel Base	58 (147.3)
Suspension Travel Front	10/25.4
Suspension Travel Rear	10/25.4
Ground Clearance	11 (27.9)
Suspension Type - Front	Double A-Arm
Suspension Type - Rear	Double A-Arm
Front Brakes	Hydraulic Disc
Rear Service Brake	Hydraulic Disc
Tire Front	Maxxis Zilla / 28x9R14
Tire Rear	Maxxis Zilla / 28x11R14
Wheels	Aluminum Beadlock
Max Fuel Capacity	5.7 (21.6)
Rack/Box Capacity	100 (45.4) / 200 (90.7)
Towing Capacity)	1050lbs (476.3kg)
Hitch Type	Rear 2" Receiver
Alternator Capacity	28 Amps
Instrumentation	Digital
Lighting	Dual Halogen Headlights / Dual Rear LED Taillights
Dry Weight (lbs)	851 (386)
Available Colors	Matte Black Paint
Additonal Features	3000-lb. Winch, Automotive-Style Paint, Front & Rear SpeedRacks, Snorkel Air Intake
