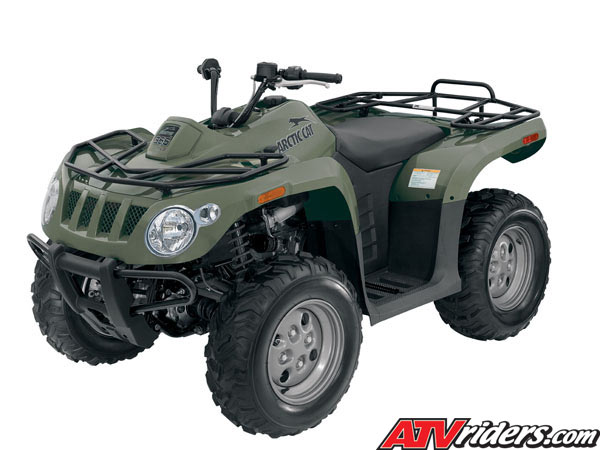

Do you really need a reason
to have the time of your life? All you need
is a carefree spirit and a sporty 366 4x4.
This trail hound is more about fun and less
about price.
Arctic
Cat 366 4x4 ATV Engine
The newest designed engine
in the Arctic Cat line is a single-cylinder,
air/oil cooled 366cc four-stroke. The automatic
transmission combined with the lightweight
chassis is a laugh-riot every time you go
for a ride.
The plastic bodywork calls attention to
the 366 with sculpted fenders that are narrower
to maneuver through the tight woods, but
still protect you from mud and water spray.
Integrated full-length plastic floorboards
enhance sure-footed traction.The seat is
lower for increased comfort and rider control,
while the handlebars aid in steering precision
and comfortable ergonomics.
The ultra-tough chassis is feather-weight
with A-arm fully independent rear suspension
(FIS) and double A-arm front, with preload
adjustable shocks and 7-inches of suspension
travel. Ground clearance is 10-inches which
coupled with new 24” front and rear
Maxxis tires on 12” rims give riders
the confidence to tackle any terrain.
SpeedRacks offer dozens of accessory attachment
options. Going from 2WD to 4WD is as simple
as pressing an electronic shift button,
and a 2-in. “automotive style”
receiver hitch, digital instrument pod (MPH,
odometer, dual trip meters, hour meter,
and clock and fuel level) and Start-In-Gear
capability complete the package.
So now you don’t have to break the
bank to break the boredom
Arctic Cat 366 4x4 Key Features
Digital Instrument
Pod - Instrument pod displays
10 or more critical operation information
indicators including: clock/hour meter,
mode button, set/reset button, odometer/trip
meter, gear position, speedometer, drive
select, high beam, battery condition,
temperature and oil pressure.
Protection and
Low-Maintenance - Fenders have
narrow design for tighter woods riding
while still maintaining water and mud
protection as well as good looks, a high-density
injection-molded skid plate doesn’t
rip or rust, the 366 is outfitted with
Zero-maintenance suspension bushings,
sealed drive shafts (front and rear),
and constant-velocity (CV) joints
Quick Access
Panel - Removal of the front
access panel allows easy access to the
fuses, which is conveniently located under
the panel
Standard Tools
- Seat latch allows for easy installation
and removal to gain access to the organized
tools underneath the seat
Gearing
- 3.1 Gears in the front and rear gear
cases help to increase low end torque
Winches
- Winch mount available as an accessory;
easy winch and winch solenoid plate. Winch
wiring installation time is greatly reduced
due to the location of the winch components
Tires
- Maxxis tires have been specifically
designed for the 366 (24x8-12 front, 24x10-12
rear) for improved traction, durability
and ride handling.
Arctic
Cat 366 4x4
ATV Engine:
366cc, 4-stroke, single cylinder, air/oil
cooled engine
34mm Keihin carburetor with electronic
automatic choke
Air/Oil-cooling system with high-capacity
oil cooler
Duramatic Automatic Transmission, with
dynamic engine braking and long-life maintenance
free belt
Arctic
Cat 366 4x4
ATV Chassis/Suspension:
Lightweight Chassis
- At 100lbs
lighter than the 400 4x4 Auto this formidable
chassis will leave you with a smile on
your face ride after ride.

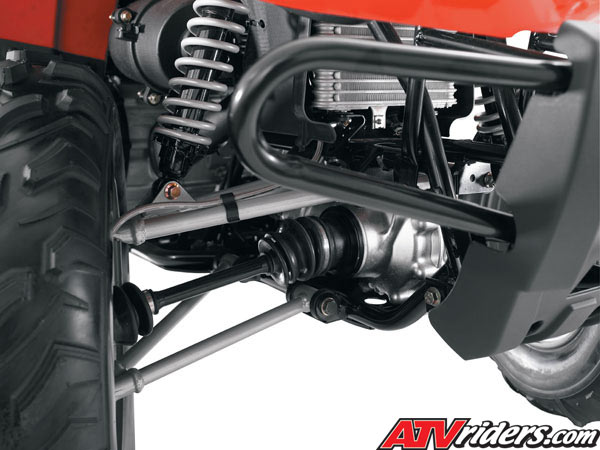

Arctic
Cat 366 4x4 Utility ATV Front
Suspension
Adjustable Preload
Shocks -
Set the spring preload (5 rear positions,
5 front positions) on the shocks to tailor
the ride to individual riding styles,
terrains and loads
On-The-Fly Electric
Shift 2-to 4-Wheel Drive -
4x4/4x2 switch is located on right-side
handlebar for quick, convenient shifting
in-and-out of four-wheel drive
Front and Rear
Racks -
Industry leading weight capacity and overall
cargo carrying surface area allows 75
lb carrying capacity on the front rack
and 150 lbs. on the rear SpeedRack
SpeedRack Technology:
• Allows very quick installation
and removal of a wide variety of Arctic
Cat exclusive accessories without the
need for
tools, bloody knuckles or swearing
• SpeedRack and its accessories
add value to the machine and also enhance
the efficiency of your hunting, fishing,
farming
or utility chores
2-Inch Automotive
Style Receiver Hitch - This
feature allows the consumer to remove
the hitch from their 2” automotive
receiver and install it into the ATV’s
receiver hitch
Floating Hydraulic
Disc Brakes - Low-maintenance,
positive stopping power in either dry
or wet conditions
Arctic
Cat 366 4x4 ATV
Additional Features:
Automatic Transmission
- With Hi/Lo-Range allows responsive
acceleration and engine braking. Transmission
also features start-in-gear to get you
going faster.
