2010 BRP

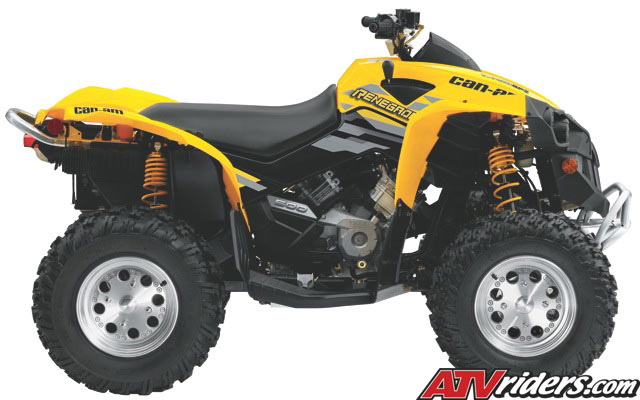

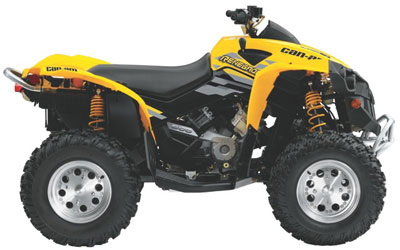

Can-Am Renegade 500 EFI
4x4 Sport-Utility ATV
Can-Am
Renegade 500 Sport-Utility
ATV Specifications:
|
ENGINE |
Type |
499.6cc, V-twin,
liquid-cooled, SOHC, 8-valve (4-valve /
cyl) |
Bore
& Stroke |
82 x 47 mm |
Fuel
Delivery |
46mm Throttle Body, 2 Siemens
VDO injectors |
Starting
System |
Electric |
Transmission |
CVT, sub-transmission with
high, low, park, neutral & reverse |
Drive
Train |
Selectable
2x4/4x4 shaft driven with Visco-Lok†
front differential |
CHASSIS |
Frame
|
SST |
Front
Suspension Type |
RS-Type
Double A-arm, forged aluminum upper arm/
Motion Control Shocks |
Travel |
8.5 in (216 mm) |
Rear
Suspension Type |
RS-Type
TTI independent, Motion Control shocks |
Travel |
9 in (228.6 mm) |
Front
Brake |
2 hydraulic
discs |
Rear
Brake |
1 inboard hydraulic disc |
Tires
/Front |
ITP Holeshot
ATR 25 x 8 x 12 in |
Tires
/Rear |
ITP Holeshot ATR 25 x 10
x 12 in |
Wheels |
Center-cast
aluminum |
DIMENSIONS |
L
x W x H |
86 x 46 x 45 in (2,184
x 1,168 x 1,143 mm) |
Wheelbase
|
51 in
(1,295 mm) |
Dry
Weight |
614 lbs ( 279 kg) |
Ground
Clearance |
11 in
(305 mm) |
Seat
Height
|
34.5 in (877 mm) |
Rack
Capacity |
Rear:
35 lbs (16 kg) |
Towing
Capacity |
1,300 lbs (590 kg) |
Fuel
Capacity |
4.3 US
gal (16.3L) |
FEATURES |
Instrumentation |
Multi-function gauge: Speedometer,
tachometer, odometer, trip and hourmeter,
fuel, gear position, 4x4 indicator, diagnostics,
auto shut off |
Anti-theft |
D.E.S.S.
(digital encoded security system) |
Storage |
Rear storage 1 US gal (3.7L) |
Electrical |
Prewired
for winch |
Lighting |
4 fender mounted Projector
Beam headlamps (60W) with tail light / brake
light |
DC
Outlet |
Lighter-type
in console, Standard connector at the back
(15A) |
Color |
Yellow, Viper
Red |
Price: |
$8,049 |
www.Can-Am.brp.com
