ENGINE |

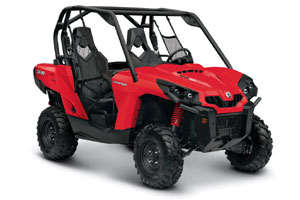

COMMANDER
8 00 EFI 4X4
|
| Type |
799.9
cc, V-twin, liquid-cooled, SOHC,
8-valve (4-valve / cyl) 85 HP
Rotax V-Twin |
| Bore
& Stroke |
91 x 75 mm |
| Fuel
Delivery |
iTC
with EFI, 54 mm Throttle Body,
2 Siemens‡ VDO injectors |
| Starting
System |
Electric |
| Transmission |
CVT,
sub-transmission with high,
low, park, neutral & reverse,
Standard Engine braking |
| Drive
Train |
Selectable
2w/4w shaft driven with Visco-lok†
front differential |
CHASSIS |
Frame
|
Steel
Frame |
| Roll
Cage |
2
inch diameter, high strength
steel, ROPS Approved |
| Front
Suspension Type |
Double
A-arm with drive-control geomety
/ Motion Control Shocks |
| Travel |
10
in |
| Rear
Suspension Type |
TTI
independent with external sway
bar / Motion Control Shocks |
| Travel |
10
in |
| Front
Brake |
Dual
214mm ventilated disc brakes
with hydraulic twin-piston calipers |
| Rear
Brake |
Single
214mm ventilated disc brake
with hydraulic twin-piston caliper |
| Tires
/Front |
27
x 9 x 12 in Carlisle Black Rock |
| Tires
/Rear |
27
x 9 x 11 in Carlisle Black Rock |
| Wheels |
12"
steel wheels |
DIMENSIONS |
| L
x W x H |
118.3
x 58.6 x 72 in / 3,004 x 1489
x 1829 mm |
Wheelbase
|
75.8
in / 1,924 mm |
| Dry
Weight |
1295
lbs / 585 kg |
| Ground
Clearance |
11
in (35 cm) |
| Cargo
Box Capacity |
Total
: 600lbs / 272kg - Upper 400lbs
/ 181kg - Lower 200lbs / 91kg |
| Towing
Capacity |
1,500
lbs (680 kg) |
| Fuel
Capacity |
10
US gal (38L) |
| Cockpit
Storage |
Glove
Box: 4.5 gal / 17.2 L - Under
Driver Seat: 3.5 gal / 13.1L |
FEATURES |
| Instrumentation |
Multi-function
guage: Speedometer, tachometer,
odometer, trip/hour, fuel, gearing,
sport mode, seat belt, 4x4,
diagnostics, clock, auto shut-off |
| Interior |
Removeable
Free- Standing seats, adjustable
tilt steering, passenger grab
bars, dual cup holders |
| Anti-theft |
D.E.S.S
Digital Encoded Security System |
| Electrical |
650-watt
magneto - easily power accesories
like GPS units, extra lighting,
or speaker systems - prewired
for winch |
| Lighting |
4
fender mounted 60-watt projector
headlamps with tail light /
brake light |
| DC
Outlet |
Lighter
type in console, standard connector
in the back (15A) |
| Standard
Colors |
Yellow |
| Price:
|
$12,999
|
