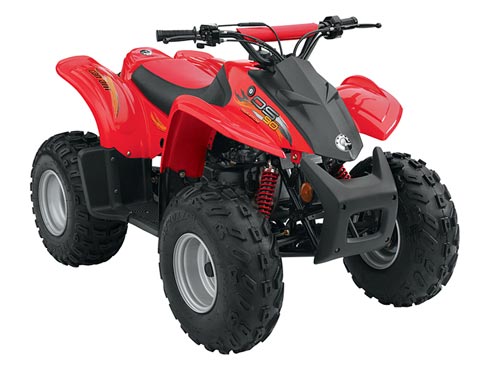

2007 Can-Am DS 90
Youth Mini ATV
- Specifications
Can Am DS90 Mini Sport ATV Specifications:
DS90 ENGINE
Type
90cc, 4-stroke, single, forced air-cooled
Bore & Stroke
50 x 41 mm
Fuel Delivery
Carburetion, Mikuni VM-16
Starting System
Electric & kick-start
Transmission
Automatic CVT
Drive Train
Chain driven/solid axle
DS90 CHASSIS
Frame
DS 90
Front Suspension Type
Independent A-arm
Travel
1.38 in (35 mm)
Rear Suspension Type
Single shock
Travel
2 in (50 mm)
Front Brake
Double drum
Rear Brake
Drum
Tires /Front
20 x 7 x 8 in (508 x 178 x 203 mm)
Tires /Rear
19 x 8 x 8 in (483 x 203 x 203 mm)
Wheels
Steel
DS90
DIMENSIONS
L x W x H
60 x 35 x 35.4 in (1,525 x 890 x 900 mm)
Wheelbase
38 in (955 mm)
Dry Weight
249 lbs (113 kg)
Ground Clearance
8 in (203 mm)
Seat Height
27.6 in (700 mm)
Fuel Capacity
1.6 US gal (6L)
DS90 FEATURES
Color
Viper Red
www.Can-Am.brp.com
