ENGINE |
OUTLANDER
400 H.O. 4X4
|

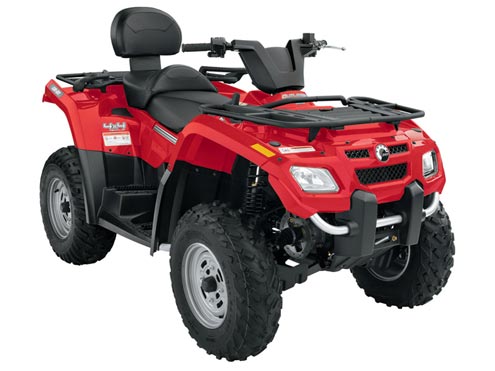

OUTLANDER
MAX 400 H.O. 4X4
|
| Type |
400cc,
4-stroke, single,
liquid-cooled, 4-valve SOHC |
400cc,
4-stroke, single,
liquid-cooled, 4-valve SOHC |
| Bore
& Stroke |
91
x 61.5 mm |
91
x 61.5 mm |
| Torque |
32
Nm @ 5,500 RPM |
32
Nm @ 5,500 RPM |
| Fuel
Delivery |
Carburetion,
Mikuni BSR 33 |
Carburetion,
Mikuni BSR 33 |
| Starting
System |
Electric
with auxiliary recoil |
Electric
with auxiliary recoil |
| Transmission |
CVT,
sub-transmission with high, low, park,
neutral & reverse |
CVT,
sub-transmission with high, low, park,
neutral & reverse |
| Drive
Train |
Selectable
2x4/4x4 shaft driven
with Visco-Lok† front differential |
Selectable
2x4/4x4 shaft driven
with Visco-Lok† front differential |
Outlander
Chassis
|
Frame
|
SST |
SST |
| Front
Suspension Type |
MacPherson |
MacPherson |
| Travel |
7
in (178 mm) |
7
in (178 mm) |
| Rear
Suspension Type |
TTI
independent |
TTI
independent |
| Travel |
8
in (203 mm) |
8
in (203 mm) |
| Front
Brake |
2
inboard hydraulic discs |
2
inboard hydraulic discs |
| Rear
Brake |
1
inboard hydraulic disc |
1
inboard hydraulic disc |
| Tires
/Front |
25
x 8 x 12 in (635 x 203 x 305 mm) |
25
x 8 x 12 in (635 x 203 x 305 mm) |
| Tires
/Rear |
25
x 10 / 11(XT) x 12 in
(635 x 254 / 279(XT) x 305 mm) |
25
x 10 / 11(XT) x 12 in
(635 x 254 / 279(XT) x 305 mm) |
| Wheels |
Steel
(Camo: painted black steel) |
Steel |
Outlander Dimensions
|
| L
x W x H |
86
x 46 x 45 in
(2,184 x 1,168 x 1,143 mm ) |
94
x 46 x 45 in
(2,387 x 1,168 x 1,143 mm) |
Wheelbase
|
49
in (1,244 mm |
57
in (1,447 mm) |
| Dry
Weight |
607
lbs (276 kg) |
657
lbs (298 kg) |
| Ground
Clearance |
9.3
in (236 mm) |
9.3
in (236 mm) |
Seat
Height
|
35
in (889 mm) |
35
in (889 mm) |
| Rack
Capacity |
Front:
100 lbs (45 kg)
Rear: 200 lbs (90 kg) |
Front:
100 lbs (45 kg)
Rear: 200 lbs (90 kg) |
| Towing
Capacity |
1,100
lbs (500 kg) |
1,100
lbs (500 kg) |
| Fuel
Capacity |
4.2
US gal (16L) |
54.2
US gal (16L) |
Outlander Features
|
| Instrumentation |
Digital gauge:
Speedometer,
odometer, trip and hourmeter,
gear position, 4x4 indicator.
Fuel gauge |
Digital gauge:
Speedometer,
odometer, trip and hourmeter,
gear position, 4x4 indicator.
Fuel gauge |
| Storage |
Rear
storage 5.3 US gal (20L) |
Rear
storage 5.3 US gal (20L)
CRS (Convertible Rack System) |
| Electrical |
Prewired
for winch |
Prewired
for winch |
| Lighting |
2
fender mounted headlamps
(35W) with tail light / brake light |
2
fender mounted headlamps
(35W) with tail light / brake light |
| DC
Outlet |
Lighter-type
in console, Standard connector at the
back (15A) |
Lighter-type
in console, Standard connector at the
back (15A) |
| XT
Package Content Available |
BRP
XL2500 winch by Warn‡,
roller fairlead, wired remote control,
cast aluminum rims (except Camo),
aggressive tread Carlisle‡ ACT
radial tires, heavy duty front &
rear bumpers, handlebar guards |
BRP
XL2500 winch by Warn‡,
roller fairlead, wired remote control,
cast aluminum rims, aggressive tread
Carlisle‡ ACT radial tires, heavy
duty front & rear bumpers, handlebar
guards |
| Color |
Yellow,
Laurentian Green,
Viper Red, Camo |
Yellow*,
Laurentian Green,
Viper Red |
| |
|
*Available
with XT package only |
