ENGINE |
OUTLANDER
650 H.O. EFI 4X4 |

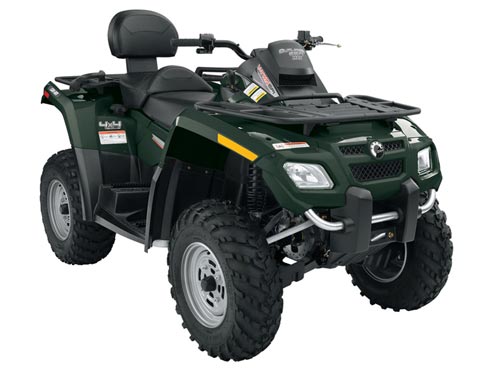

OUTLANDER
MAX 650 H.O. EFI 4X4 |
| Type |
650cc,
4-stroke, V-twin,
liquid-cooled, 8-valve SOHC |
650cc,
4-stroke, V-twin,
liquid-cooled, 8-valve SOHC |
| Bore
& Stroke |
82
x 62 mm |
82
x 62 mm |
| Torque |
58
Nm @ 5,500 RPM |
58
Nm @ 5,500 RPM |
| Fuel
Delivery |
EFI,
46mm Throttle Body,
2 Siemens‡ VDO injectors |
EFI,
46mm Throttle Body,
2 Siemens‡ VDO injectors |
| Starting
System |
Electric |
Electric |
| Transmission |
CVT,
sub-transmission with high, low, park,
neutral & reverse |
CVT,
sub-transmission with high, low, park,
neutral & reverse |
| Drive
Train |
Selectable
2x4/4x4 shaft driven
with Visco-Lok† front differential |
Selectable
2x4/4x4 shaft driven
with Visco-Lok† front differential |
Outlander
Chassis |
Frame
|
SST |
SST |
| Front
Suspension Type |
Double
A-arm,
Forged Aluminum upper arm |
Double
A-arm,
Forged Aluminum upper arm |
| Travel |
8
in (203 mm) |
8
in (203 mm) |
| Rear
Suspension Type |
TTI
independent |
TTI
independent |
| Travel |
9
in (229 mm) |
9
in (229 mm) |
| Front
Brake |
2
inboard hydraulic discs |
2
inboard hydraulic discs |
| Rear
Brake |
1
inboard hydraulic disc |
1
inboard hydraulic disc |
| Tires
/Front |
26
x 8 x 12 in (660 x 203 x 305 mm) |
26
x 8 x 12 in (660 x 203 x 305 mm) |
| Tires
/Rear |
26
x 10 x 12 in (660 x 254 x 305 mm) |
26
x 10 x 12 in (660 x 254 x 305 mm) |
| Wheels |
Steel
(Camo: painted black steel) |
Steel
(Camo: painted black steel) |
Outlander
Dimensions
|
| L
x W x H |
86
x 46 x 45 in
(2,184 x 1,168 x 1,143 mm ) |
94
x 46 x 45 in
(2,387 x 1,168 x 1,143 mm) |
Wheelbase
|
51
in (1,295 mm) |
59
in (1,499 mm) |
| Dry
Weight |
649
lbs (295 kg) |
699
lbs (318 kg) |
| Ground
Clearance |
12
in (305 mm) |
12
in (305 mm) |
Seat
Height
|
34.5
in (877 mm) |
34.5
in (877 mm) |
| Rack
Capacity |
Front:
100 lbs (45 kg)
Rear: 200 lbs (90 kg) |
Front:
100 lbs (45 kg)
Rear: 200 lbs (90 kg) |
| Towing
Capacity |
1,300
lbs (590 kg) |
1,300
lbs (590 kg) |
| Fuel
Capacity |
5.3
US gal (20L) |
5.3
US gal (20L) |
Outlander Features
|
| Instrumentation |
Multi-function
gauge:
Speedometer, tachometer,
odometer, trip and hourmeter,
fuel, gear position, 4x4 indicator,
diagnostics, auto shut off |
Multi-function
gauge:
Speedometer, tachometer,
odometer, trip and hourmeter,
fuel, gear position, 4x4 indicator,
diagnostics, auto shut off |
| Anti-theft |
D.E.S.S.
(digital encoded security system) |
D.E.S.S.
(digital encoded security system) |
| Storage |
Rear
storage 5.3 US gal (20L) |
Rear
storage 5.3 US gal (20L)
CRS (Convertible Rack System) |
| Electrical |
Prewired
for winch |
Prewired
for winch |
| Lighting |
2
fender mounted headlamps
(35W) with tail light / brake light |
2
fender mounted headlamps
(35W) with tail light / brake light |
| DC
Outlet |
Lighter-type
in console, Standard connector at the
back (15A) |
Lighter-type
in console, Standard connector at the
back (15A) |
| XT
Package Content Available |
BRP
XL2500 winch by Warn‡,
roller fairlead, wired remote control,
cast aluminum rims (except Camo),
aggressive tread Carlisle‡ ACT
radial tires, heavy duty front &
rear bumpers, handlebar guards |
BRP
XL2500 winch by Warn‡,
roller fairlead, wired remote control,
cast aluminum rims (except Camo),
aggressive tread Carlisle‡ ACT
radial tires, heavy duty front &
rear bumpers, handlebar guards |
| Color |
Yellow,
Laurentian Green,
Viper Red, Camo |
Yellow,
Laurentian Green,
Viper Red |
