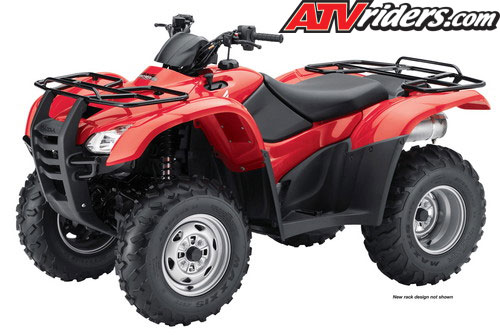

2012 Honda Rancher 420 4x4 ES Utility ATV

Honda Rancher 420 4x4 ES Utility ATV Features & Benefits

The FourTrax Rancher 4x4 ES comes factory-ready with loads of features that make this remarkable ATV a real winner. Honda's highly regarded Electric Shift Program (ESP®) makes gear shifts as easy as touching a button and there's also selectable 4WD/2WD TraxLok®, a torque-sensitive front differential, fuel injection and more. Opt for the addition of Honda's easy-steering Electric Power Steering (EPS) and you've got yourself one capable partner for work or play - or both.

New for 2012

New Black wheels on Olive models.


2012 Honda Rancher 420 4x4 ES Utility ATV

Honda Rancher 420 4x4 ES Utility ATV Specifications

Model:	TRX420FE
Engine Type:	420cc liquid-cooled OHV wet-sump longitudinally mounted single-cylinder four-stroke
Bore and Stroke:	86.5mm x 71.5mm
Induction:	Keihin 34mm throttle-body fuel-injection system
Ignition:	Full transistor with electronic advance
Starter:	Electric with optional auxiliary recoil
Clutch:	Automatic
Transmission:	ESP five-speed with Reverse
Driveline:	Direct front and rear driveshafts
Suspension:	Front: Independent double-wishbone; 6.3 inches travel Rear: Swingarm with single shock; 6.3 inches travel
Brakes:	Front: Dual hydraulic disc Rear: Sealed mechanical drum
Tires:	Front: 24 x 8-12 Rear: 24 x 10-11
Length:	80.9 inches
Width:	46.1 inches
Height:	45.1 inches
Seat Height:	32.4 inches
Ground Clearance:	6.5 inches
Wheelbase:	49.2 inches
Turning Radius:	10.5 feet
Fuel Capacity:	3.5 gallons, including 1.0-gallon reserve
Colors:	Red, Olive, Natural Gear® Camouflage
*Curb Weight:**	586 pounds
*Includes all standard equipment, required fluids and full tank of fuel--ready to ride. Meets current EPA and CARB off-road emissions standards. Recommended for riders 16 years of age and older.
