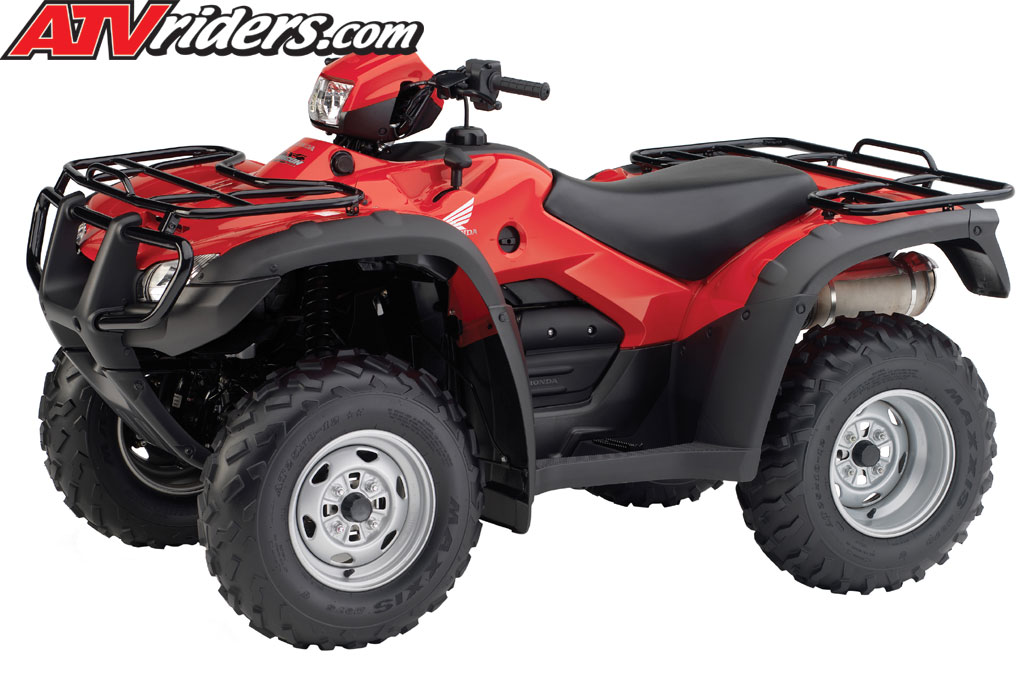

Model: |
TRX500FA / TRX500FGA (with
EPS and GPS) |
Engine Type: |
499cc liquid-cooled OHV
dry-sump longitudinally mounted single-cylinder
four-stroke |
Bore and Stroke: |
92.0mm x 75.0mm |
Induction: |
36mm constant-velocity
carburetor |
Ignition: |
CD with electronic advance |
Starter: |
Electric with auxiliary
recoil |
Clutch: |
|
Transmission: |
Fully automatic hydro-mechanical,
continuously variable with electronic controls |
Driveline: |
Direct front and rear driveshafts
with TraxLok and Torque-Sensitive Front
Differential |
Suspension: |
Front: Independent double-wishbone;
6.7 inches travel
Rear: Swingarm with dual shock absorbers;
6.7 inches travel |
Brakes: |
Front: 180mm front discs
with single-piston calipers
Rear: Sealed mechanical drum |
Tires: |
Front: 25 x 8-12
Rear: 25 x 10-12 |
Length: |
83.0 inches |
Width: |
46.8 inches |
Height: |
46.4 inches |
Seat Height: |
33.9 inches |
Ground Clearance: |
7.5 inches |
Wheelbase: |
50.6 inches |
Turning Radius:
|
10.8 feet |
Towing capacity: |
850 pounds |
Fuel Capacity: |
4.0 gallons, including
0.7-gallon reserve |
Colors |
Red, Olive, Natural Gear
Camouflage |
Curb Weight*: |
630 pounds (TRX500FA) /
648 pounds (TRX500FGA) |
*Includes
all standard equipment, required fluids
and full tank of fuel--ready to ride.
Meets current CARB and EPA off-road emissions
standards.
Recommended for riders 16 years of age
and older.
