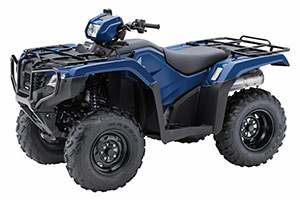

| Model: |
TRX500FE1 / TRX500FE2 |
| Engine Type: |
475cc liquid-cooled OHV longitudinally mounted single-cylinder four-stroke |
| Bore and Stroke: |
92.0mm x 71.5mm |
| Compression Ratio: |
9.5:1 |
| Induction: |
Programmed Fuel Injection (PGM-FI), 36mm throttle body |
| Ignition: |
Full-transistorized with electronic advance |
| Starter: |
Electric with optional auxiliary recoil |
| Clutch: |
Automatic |
| Transmission: |
ESP five-speed with Reverse |
| Driveline: |
Direct front and rear driveshafts with TraxLok® and locking front differential |
| Suspension |
Front: Independent double-wishbone; 7.3 inches travel
Rear: Swingarm with single shock; 7.3 inches travel |
| Brakes |
Front: Dual hydraulic 190mm discs
Rear: Sealed 160mm mechanical drum |
| Tires |
Front: 25 x 8-12
Rear: 25 x 10-12 |
| Length: |
82.8 inches |
| Width: |
47.4 inches |
| Height: |
48.0 inches |
| Seat Height: |
34.2 inches |
| Ground Clearance: |
7.5 inches |
| Wheelbase: |
49.9 inches |
| Turning Radius: |
10.5 feet |
| Fuel Capacity: |
3.9 gallons, including 1.3-gallon reserve |
| Colors: |
Red, Olive, Blue, Honda Phantom Camo |
| Curb Weight*: |
630 pounds (TRX500FE1) / 646 pounds (TRX500FE2) |
