Lightweight OHV air-cooled
229cc engine is longitudinally mounted
to allow direct driveshaft alignment to
rear wheels for more efficient power transfer.
Two-valve cylinder-head
design features performance-optimized
valve timing, a 31.5mm-diameter intake
valve and a 27mm-diameter exhaust valve
to produce a broad, usable powerband.
22mm carburetor with
light throttle effort offers immediate
engine response.
Hand-operated Honda
SportClutch(TM) enables the rider to experience
manual clutch actuation with the advantage
of no stalling when coming to a stop.
A unique buffer plate
in the carburetor float chamber helps
maintain consistent fuel flow when riding
across varied terrain.
Solid-state CD ignition
with electronic advance and 8750-rpm engine
rev limiter.
Closed crankcase vent
system safeguards against engine oil contamination.
Rubber-mounted engine
reduces vibration.
Automatic cam-chain
tensioner requires no maintenance.
High-efficiency oil
cooler supplements the 2-quart capacity
wet sump, providing lower operating temperature
over a wide range of riding conditions
for maximum performance and increased
engine life.
Five-speed transmission
features sport-riding ratios, reverse
and the no-stall SportClutch.

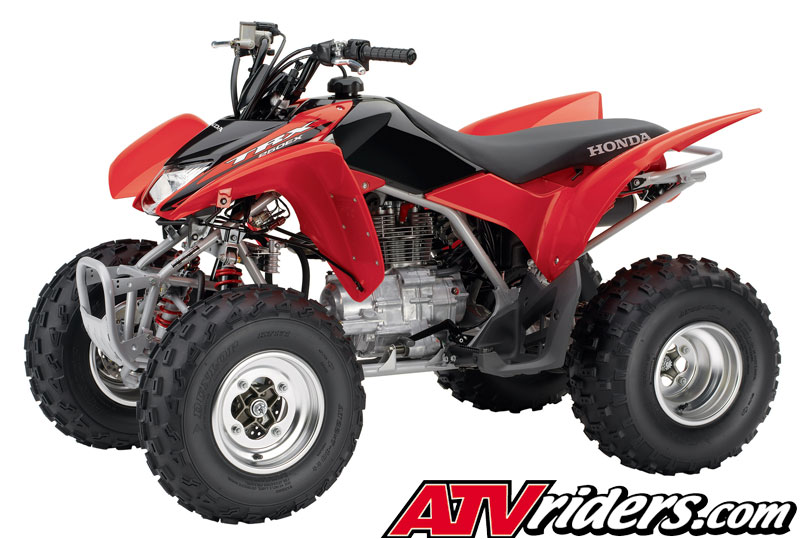

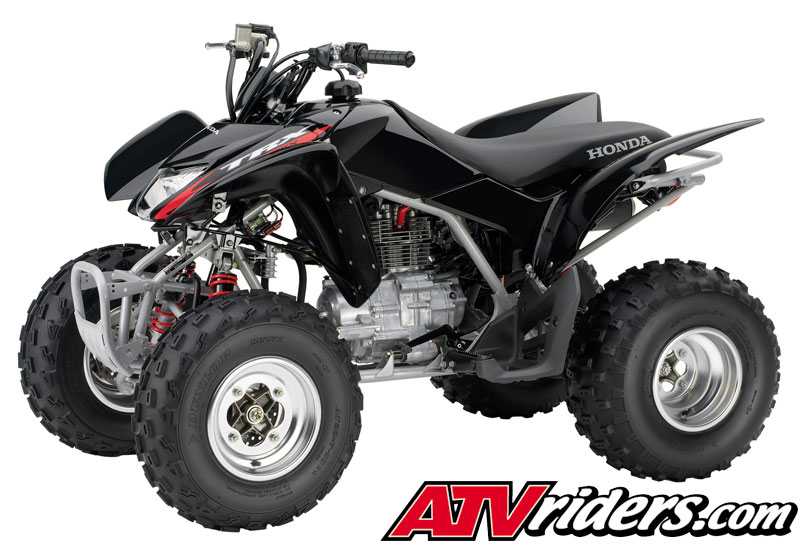

TRX250EX
ATV Chassis/Suspension
27mm front shocks combined
with a 32mm rear shock provide bump absorption
and rider comfort.
Lightweight, double-cradle
steel chassis is designed to withstand
the demands of recreational riding.
Independent double-wishbone
front suspension provides an exceptional
5.9 inches of travel.
Steel swingarm and single
rear shock absorber provide 5.7 inches.
Dual hydraulic 174mm
front disc brakes and fully sealed rear
mechanical drum brake provide superb and
consistent braking power.
22 x 7-10 front and
22 x 10-9 rear tires feature an aggressive,
TRX(TM)400EX-derived knobby tread pattern
for excellent traction.
Lightweight aluminum
wheels reduce unsprung weight for superb
handling.
Additional
Features
Engine design produces
low emissions and meets California Air
Resources Board (CARB) off-road emissions
standards.
TRX450R-inspired bodywork.
Ergonomic seat is designed
for recreational riding, providing superb
comfort and excellent rider maneuverability.
Ergonomic layout and
rider controls provide a comfortable operating
position for a wide range of riding styles
and rider sizes.
Large, lightweight plastic
fuel tank with 2.7-gallon capacity.
Snorkel-type air-intake
system is specially designed to provide
cool, clean air in all riding.
Single-headlight system
features a twin-filament high/low 39w/39w
bulb.
LED tail- and brakelight.
Maintenance-free battery.
Reusable, washable foam
air filter.
Neutral and reverse
indicator lights.
Durable, comfortable,
easy-to-use hand and foot controls.
Keyed ignition switch
for added security.
Easy-to-use parking
brake.
Standard tool kit includes
a tire-pressure gauge.
Assembled in Timmonsville,
South Carolina.
Transferable six-month
limited warranty; extended coverage available
with a Honda Protection Plan.
Purchase of a new, previously
unregistered Honda unit by an individual
retail user in the United States qualifies
the owner for a one-year complimentary
membership in the Honda Rider's Club of
America(TM) (HRCA(R)). Benefits include
online access to the Honda Common Service
Manual, six issues of the bimonthly Honda
Red Rider(TM) magazine, travel discounts,
trip routing, MSF reimbursement, plus
access to the HRCA Web site (www.hrca.honda.com).
