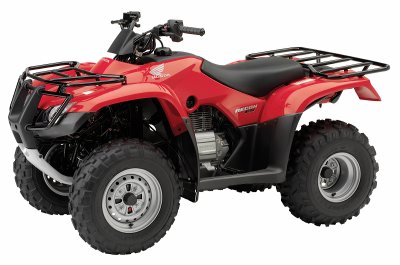

| Model: |
TRX250TE (with
ESP) / TRX250TM |
| Engine
Type: |
229cc air-cooled
OHV longitudinally mounted single-cylinder
four-stroke |
| Bore
and Stroke: |
68.5mm x 62.2mm |
| Carburetion:
|
22mm |
| Ignition:
|
CD with electronic
advance |
| Starter: |
Electric with
auxiliary recoil |
| Clutch:
|
Automatic |
| Transmission:
|
ESP five-speed
with Reverse / Five-speed with
Reverse |
| Driveline:
|
Direct rear
driveshaft |
| Suspension |
Front: Independent
double-wishbone; 5.1 inches
travel
Rear: Swingarm with single
shock; 4.9 inches travel |
| Brakes |
Front: Dual
sealed hydraulic drum
Rear: Sealed mechanical drum |
| Tires |
Front: 22
x 7-11
Rear: 22x 10-9 |
| Length:
|
75.0 inches |
| Width:
|
40.7 inches |
| Height: |
42.1 inches |
| Seat
Height: |
31.2 inches |
| Ground
Clearance: |
6.0 inches |
| Wheelbase:
|
44.5 inches |
| Turning
Radius: |
8.5 feet |
| Dry
Weight: |
425 pounds
(TRX250TE) / 418 pounds (TRX250TM) |
| Fuel
Capacity: |
2.4 gallons,
including 0.6-gallon reserve |
| Colors: |
Red, Olive,
Yellow |
| Recommended
for riders 16 years of age and
older. |
