| Model: |

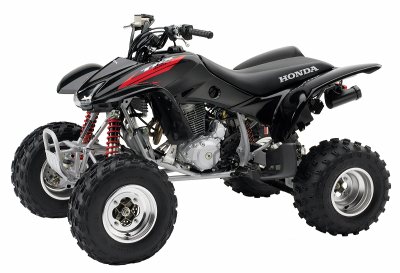

TRX400EX |
| Engine Type: |
397cc RFVC air-cooled
dry-sump single-cylinder
four-stroke |
| Bore and Stroke: |
85mm x 70mm |
| Carburetion: |
38mm piston-valve
with accelerator pump |
| Ignition: |
CD with electronic
advance |
| Starter: |
Electric |
| Clutch: |
Manual |
| Transmission: |
Five-speed with Reverse |
| Driveline: |
O-ringšsealed
chain |
| Suspension |
Front: Independent
double-wishbone with
Showa shocks, five-position
spring preload adjustability;
8.2 inches travel
Rear: Pro-Link fully
adjustable single
Showa shock; 9.1 inches
travel |
| Brakes |
Front: Dual hydraulic
174mm discs
Rear: Single 220mm
disc |
| Tires |
Front: 22 x 7-10
knobby radial
Rear: 20 x 10-9 knobby
radial |
| Length: |
72.2 inches |
| Width: |
45.3 inches |
| Height: |
43.7 inches |
| Seat Height:
|
31.9 inches |
| Ground Clearance: |
4.3 inches |
| Wheelbase: |
48.4 inches |
| Turning Radius:
|
10.5 feet |
| Dry Weight: |
386 pounds |
| Fuel Capacity:
|
2.6 gallons, including
0.4-gallon reserve |
| Colors: |
Red, Black |
| For
highly experienced riders
16 years of age and
older. |
