The world's best all-around ATV
includes a strong 397cc engine,
plus Honda's renowned automatic
transmission--and you can even include
an integrated GPS system as well.
New Blue color

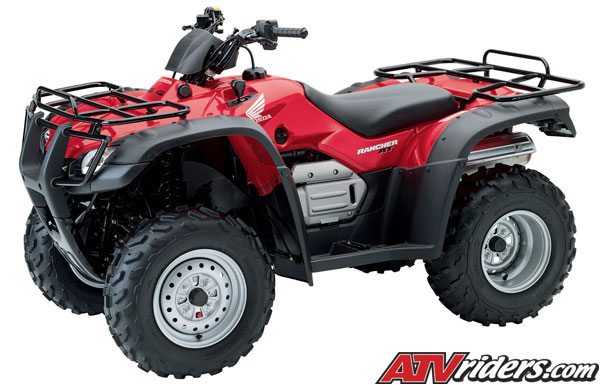

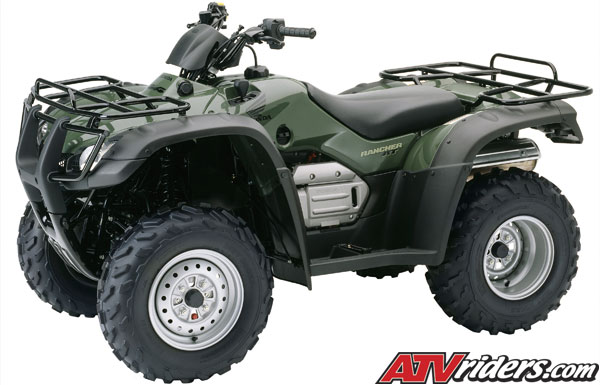

joins Red and Olive on the TRX(TM)400FA.
Honda
Rancher AT Unique Features
Powerful 397cc
air-cooled OHV four-stroke engine
uses Honda's proven longitudinal-mounting
system for superior drivetrain
efficiency.
SUV styling for
a rugged, adventurous look.
GPScape(R) model
features GPS unit with easy-to-read
LCD display.
GPScape is contained
within the standard meter assembly
and features storage for up to
100 waypoints, digital-compass
function indicating travel direction
and an automatic compensating
clock. When traveling or returning
to a designated waypoint, GPScape
will tell the rider distance and
direction from present location.
Honda
Rancher AT Engine/Drivetrain
Powerful, rugged
397cc OHV air-cooled longitudinally
mounted engine eliminates 90-degree
power transfers and allows direct
driveshaft alignment to both front
and rear wheels for improved drivetrain
efficiency.
Overhead-valve
design provides compact engine
dimensions for improved ground
clearance, while maintaining a
broad, easy-to-use powerband.
Unique dry-sump
oiling system places the oil tank
inside the engine cases, lowering
engine height and allowing optimum
engine placement for excellent
ground clearance and superb handling.
Engine design
produces low emissions and meets
California Air Resources
Board (CARB)
off-road emissions standards.
Integral 20-watt
electric carburetor heater improves
driveability, ensures smooth operation
and provides dependable starting
in cold conditions.
CD ignition with
electronic advance for excellent
performance and reliability.
Rubber-cushion
engine mounting and gear-driven
counterbalancer reduce vibration.
Standard oil
cooler with cooling fan ensures
optimal engine lubrication under
difficult operating conditions.
Closed crankcase
vent system safeguards against
engine oil contamination.
Convenient electric
starting with auxiliary recoil
starter and an automatic internal
decompression system.
Stainless-steel
exhaust header and muffler for
superior corrosion resistance.
Powerful 322-watt
AC generator.
Reusable foam
air filter.
Traxlok(R) system
for convenient selection of 2WD
or 4WD depending on the conditions.
Torque-sensitive
front differential reduces torque
steer for less steering effort.
The Hondamatic
automatic transmission utilizes
variable hydraulic pressure and
mechanical torque amplification
to provide seamless power delivery
and excellent acceleration. Engine
power drives a hydraulic pump.
The pump, in turn, drives a hydraulic
motor with variable fluid capacity.
Utilizing pump and motor pistons
and a variable-pitch motor-side-swash
plate, hydraulic capacity and
pressure are varied, producing
continuously variable output speed.
In addition, torque is increased
as output-shaft speed is reduced.
The Hondamatic
is fully sealed, compact and maintenance-free,
with no belts to wear out and
replace.
The Hondamatic
features true engine braking,
unlike conventional belt-drive
designs.
Honda's exclusive
Electric Shift Program (ESP(TM))
allows the rider the option to
"shift" the Hondamatic
with the touch of a thumb using
two push buttons mounted on the
left handlebar.
Honda
Rancher AT Chassis/Suspension
Rugged frame
and suspension provide 7.2 inches
of ground clearance.
Steering-mechanism
design features light effort and
a tight turning radius of 10.8
feet.
Independent double-wishbone
front suspension uses premium
shock absorbers to provide 5.9
inches of suspension travel for
a plush, comfortable ride.
Steel swingarm
and single rear shock absorber
provide 5.9 inches of suspension
travel for superb comfort and
compliance.
Triple-sealed
front hydraulic drum brakes and
sealed mechanical rear drum.
Tough, large-diameter
24x8-12 front and
24x10-11 rear tires provide excellent
ground clearance while maintaining
precise handling.
Additional
Features
Multifunction
LCD digital instrumentation that
is compact, tough and waterproof,
featuring large readouts for gear
position, speedometer, odometer,
resettable tripmeter and hourmeter/
clock. Instrument housing includes
indicator lights for Reverse,
Neutral, oil-temperature warning
and Traxlok selection.
Waterproof accessory
socket provides 12-volt, 10-amp
power with a built-in temperature-type
fuse.
Large cargo racks
front and rear carry payloads
of 66 and 133 pounds, respectively.
Heavy-duty trailer
hitch with 850-pound towing capacity.
Large, lightweight
plastic fuel tank with 3.8-gallon
capacity.
Fuel gauge is
standard equipment.
Snorkel-type
air intake system is specially
designed for water crossings.
Unique Honda-designed
floorboards allow the rider's
feet to grip the footrests, while
keeping mud and debris away.
Unique rear-opening
storage compartment allows access
when rack is loaded.
Combination tail-
and brakelight.
Thickly padded
seat provides all-day comfort.
Standard over-fenders
give excellent mud protection.
Twin-headlight
system with 30-watt bulbs features
multireflector lenses for optimal
light distribution.
USDA-qualified
spark arrester/muffler.
Constant-velocity-joint
boot guards help prevent damage
to boot covers.
Tough 12-amp-hour
maintenance-free battery.
Durable, comfortable,
easy-to-use controls.
Keyed ignition
switch for added security.
Tough engine
skidplate for underside engine
protection.
Easy-to-use parking
brake.
Top-mounted choke
lever for simple operation.
Handlebar switches,
controls and warning labels feature
easy-to-understand graphic symbols.
Standard tool
kit includes a tire-pressure gauge.
GVWR is 1068
pounds.
Assembled in
Timmonsville, South Carolina.
Transferable
six-month limited warranty; extended
coverage available with a Honda
Protection Plan.
