The all-new 420cc
fuel-injected Rancher 2WD models--available
with manual shifting or Honda's
exclusive Electric Shift Program--are
here and ready to take the legendary
Rancher to a new level of performance.
New, larger 420cc
liquid-cooled engine for increased
power.
New fuel-injection
system for consistent performance
at high altitude, improved cold-weather
starting, and increased power.
New dual front
disc brakes for improved braking
performance in all conditions.
New body style
incorporates flowing fenders with
integrated headlights and
LED taillight
for a rugged adventurous look.
New Blue color.

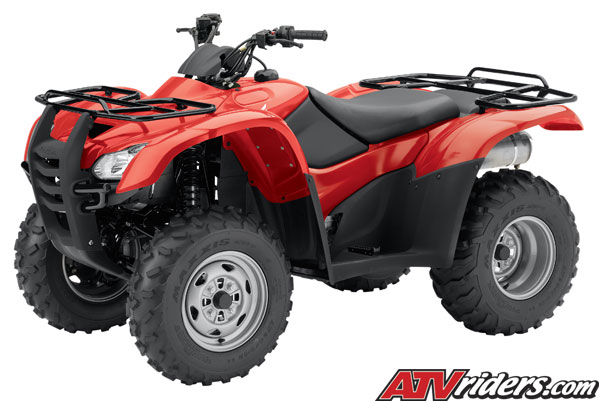

Honda
Rancher ES ATV Unique Features
Brand-new, rugged
OHV liquid-cooled fuel-injected
420cc longitudinally mounted engine
allows direct driveshaft alignment
to rear wheels for improved drivetrain
efficiency.
Large radiator
with cooling fan ensures optimal
engine cooling under difficult
operating conditions.
Closed crankcase
vent system safeguards against
engine oil contamination.
ES model features
Electric Shift Program (ESP(TM))
for push-button upshifting and
downshifting. The rider shifts
simply and precisely with the
press of the upshift or downshift
button mounted on the left handlebar.
An onboard electronic control
module (ECM) monitors information
from four sensors--engine rpm,
countershaft speed, gear position
and shift spindle angle--to control
the speed of the electric shift
motor's gear and clutch engagement.
Gear engagement speed varies according
to rider style: The transmission
shifts more quickly when riding
style turns sporty. A neutral
lockout at speeds greater than
2 mph ensures available engine
braking when descending hills.
To maintain smooth shifting, the
transmission cannot be shifted
from Neutral to First gear or
Reverse gear at engine speeds
above 3000 rpm. ESP is not battery-dependent,
operating whenever the engine
is running. Should the rider ever
need to shift manually, the Rancher(R)
ES is also equipped with an auxiliary
shift lever in the tool kit.
Unique Honda-designed
floorboards on all Ranchers allow
the rider's feet to grip the footrests
while keeping mud and debris away.
Honda
Rancher ES ATV Engine/Drivetrain
All-new 420cc
longitudinally-mounted engine
boasts more horsepower and torque
and eliminates 90-degree power
transfers.
Overhead-valve
design provides compact engine
dimensions for improved ground
clearance while maintaining a
broad, easy-to-use powerband.
Keihin fuel-injection
system provides crisp performance
and ensures trouble-free operation
in cold conditions and changing
altitudes.
Rubber-cushion
engine mounting and gear-driven
counterbalancer reduce vibration.
Super-heavy-duty
automatic clutch with a low engagement
point for excellent driveability
and towing capability.
Five-speed transmission
with Reverse includes an ultra-low
first gear.The manual-shift model
uses a foot-operated pedal. The
Rancher ES model incorporates
Honda's exclusive ESP for easy
shifts with the push of a handlebar-mounted
button.
Convenient electric
starting with optional recoil
starter and an automatic internal
decompression system.
Washable air
filter for easy maintenance and
consistent performance.
Stainless-steel-exhaust
header and muffler for superior
corrosion resistance.
Three-chamber
muffler baffling uses no packing
material that can blow out.
Provides long-lasting
performance.
Full transistor
ignition with electronic advance
for excellent performance and
reliability.
Powerful, new
300-watt AC generator.
Large 7.2-liter
airbox with reusable foam air
filter provides more air to the
engine for increased performance.
Honda
Rancher ES ATV Chassis/Suspension
Rugged frame
and suspension provide an exceptional
6.5 inches of ground clearance.
Steering-mechanism
design features light effort and
a tight turning radius of 8.9
feet.
Independent double-wishbone
front suspension uses premium
shock absorbers to provide 6.3
inches of suspension travel for
a plush, comfortable ride.
Steel swingarm
and single rear shock absorber
provide 6.3 inches of suspension
travel for superb comfort and
compliance.
Tough, large-diameter
24x8-12 front and wide 24x10-11
rear tires provide added ground
clearance while maintaining precise
handling.
Dual hydraulic
front disc brakes and sealed mechanical
rear drum brakes for strong stops.
Additional
Features
Engine design
produces low emissions and meets
EPA and California AirResources
Board (CARB) off-road emissions
standards.
ES model has
multifunction LCD digital instrumentation
that is compact, tough and waterproof,
featuring large readouts for gear
position, speedometer, odometer,
resettable tripmeter and hourmeter.
Instrument housing includes indicator
lights for Reverse, Neutral, oil-temperature
and fuel-injection.
Combination LED
stop- and taillight.
Optional waterproof
accessory socket provides 12-volt,
10-amp power with a built-in temperature-type
fuse.
Large cargo racks
front and rear allow payloads
of 66 and 133 pounds, respectively.
Heavy-duty trailer
hitch with towing capacity of
850 pounds.
Large, lightweight
plastic fuel tank with 3.7-gallon
capacity.
Fuel gauge is
standard equipment.
Snorkel-type
air-intake system is specially
designed to resist water.
Under-seat storage
compartment allows access when
rack is loaded.
Thickly padded
seat provides all-day comfort.
Large fenders
give excellent mud protection.
Twin-headlight
system with 30-watt bulbs features
multireflector lenses for optimal
light distribution.
USDA-qualified
spark arrester/muffler designed
for quiet operation without wool
packing for long-lasting performance.
Tough 12-amp-hour
maintenance-free battery.
Durable, comfortable,
easy-to-use controls.
Keyed ignition
switch for added security.
Full-length synthetic
lower skidplate with integrated
front brush guard.
Easy-to-use parking
brake.
Handlebar switches,
controls and warning labels use
easy-to-understand graphic symbols.
Standard equipment
includes a tire-pressure gauge.
GVWR is 1034
pounds (TRX420TE)/1032 pounds
(TRX420TM).
FourTrax(R) Rancher
ES (TRX420TE) and FourTrax Rancher
(TRX420TM) assembled in Timmonsville,
South Carolina.
Transferable
six-month limited warranty; extended
coverage available with a Honda
Protection Plan.
Purchase of a
new, previously unregistered Honda
ATV by an individual retail user
in the United States qualifies
the owner for a one-year complimentary
membership in the Honda Rider's
Club of America(R) (HRCA(R)).
Benefits include online access
to the Honda Common Service Manual,
six issues of the bimonthly Honda
Red Rider(TM) magazine, travel
discounts and trip routing, plus
access to the HRCA Web site (www.hrca.honda.com).
Look for the HRCA support team
at select off-road events across
the country. For details on the
HRCA, dealers should call (310)
783-3958, 8:30 a.m. to 5 p.m.
Pacific Time.
