2007

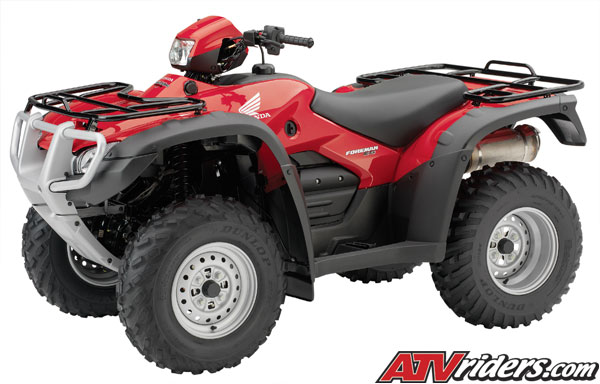

Honda FourTrax Foreman 4x4 ES ATV
w/ Electric Power Steering
With Honda's
latest longitudinally mounted 475cc
engine, versatile Traxlok 2WD/4WD
system and new Electric Power Steering,
this Foreman offers top-of-the-line
features at an affordable price.
Honda's
revolutionary Electric Power
Steering (EPS(TM)) system
offers
speedand
ATV
Electronic Power
Steering Video
torque-sensitive
steering assistance for
increased control and comfort
under tough conditions.
Front and
rear suspension are revised
specifically for the Foreman
with EPS.
EPS is
a unique system consisting
of an ECU-programmed electric
steering assistance motor
and multiple sensors. These
sensors measure the handlebar
torque applied by the operator
as well as the ATV's speed
to determine the correct
amount of steering assistance
required for all conditions.
More assistance is provided
in rough terrain and at
low speeds to decrease the
amount of steering effort
required, while less assistance
is provided at higher speeds
and in smooth terrain. This
innovative technology also
decreases bumpsteer and
kickback through the handlebar
in all conditions. The sophisticated
Showa system includes separate
ECU programming for 2WD
and 4WD modes, while spring-loaded
steering-motor gears minimize
play to increase steering
feel and feedback at higher
speeds.
Traxlok(R)
enables the rider to shift
between 2WD and 4WD with
the simple push of a switch
and provides quiet, smooth
engagement with shift-on-the-fly
capability.
Torque-sensitive
front differential reduces
torque steer for less steering
effort and, when combined
with EPS, provides unmatched
4WD steering effort and
precision.
Dual front
disc-brake calipers feature
a patented built-in scraper
system to remove mud and
snow from inside the front
wheel. This helps to prevent
buildup of debris between
caliper and rim and ensures
consistent braking performance.
Brake pads
feature thick, long-wear
material with improved mud
durability, feel and control.
Pads have an internal scraper
that gives audible warning
when pad life is low.
Standard-equipment
oil cooler.
Foreman
4x4 ES EPS Engine/Drivetrain
Powerful four-stroke
475cc OHV air-cooled longitudinally
mounted engine allows direct driveshaft
alignment to both front and rear
wheels for improved drivetrain
efficiency.
The overhead-valve
arrangement features angled valves
in a hemispherical combustion
chamber for straighter intake
and exhaust flow for improved
engine performance.
Rubber-cushion
engine mounting and gear-driven
counterbalancer reduce vibration.
Snorkel-type
air-intake system is specially
designed to resist water intrusion.
Integral electric
carburetor heater system improves
driveability and ensures smooth
operation in cold conditions.
Closed crankcase
vent system safeguards against
engine oil contamination.
USDA-qualified
spark arrester/muffler is constructed
of stainless steel.
Traxlok is easily
engaged by pushing a switch on
the right handlebar. An electromagnetic
mechanical clutch unit located
on the center of the propeller
shaft engages 4WD with a quiet
two-way roller clutch. Traxlok
ensures smooth operation by employing
a magnetic switching mechanism
that engages when front and rear
wheel speeds vary by less than
6 mph. A 4WD indicator light on
the LCD meter shows "actual"
4WD/2WD engagement status.
Electric Shift
Program (ESP(TM)) provides push-button
upshifting and downshifting. The
rider shifts simply and precisely
with the press of the upshift
or downshift button mounted on
the left handlebar. An onboard
electronic control module (ECM)
monitors information from four
sensors--engine rpm, countershaft
speed, shift drum angle and shift
spindle angle--to control the
speed of the electric shift motor's
gear and clutch engagement. Gear-engagement
speed varies according to rider
style: The transmission shifts
more quickly when riding style
turns sporty. A neutral lockout
at speeds greater than 2 mph ensures
available engine braking when
descending hills. For smooth shifting,
the transmission cannot be shifted
from Neutral to First gear or
Reverse gear at engine speeds
above 3000 rpm. ESP is not battery-dependent,
operating whenever the engine
is running. Should the rider ever
need to shift manually, the ES
model is also equipped with an
auxiliary shift lever in the tool
kit.
Super-heavy-duty
automatic clutch for excellent
driveability and towing capacity.
Convenient five-speed
transmission with Reverse.
Maintenance-free
shaft drive with torque-sensing
front differential routes power
directly from the longitudinally
mounted engine without inefficient
directional changes.
Convenient electric
starter with auxiliary recoil
starter features an automatic
internal decompression system.
Wet-sump engine
carries a large 3.2-quart capacity.
CD ignition with
electronic advance for excellent
performance and reliability.
Reusable foam
air filter.
Foreman

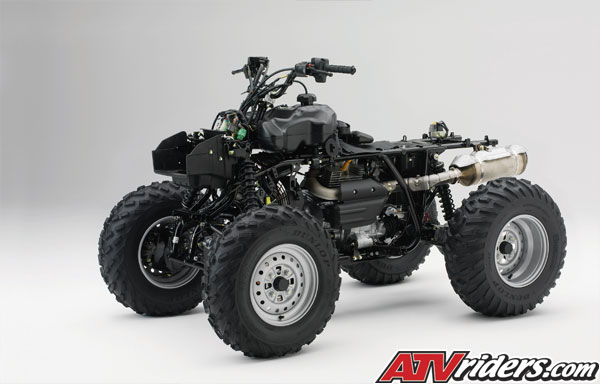

4x4 ES EPS Chassis/Suspension
Rugged frame
and suspension provide an exceptional
7.5 inches of ground clearance.
Independent double-wishbone
front suspension uses KYB shock
absorbers to give 6.7 inches of
travel.
Steel swingarm
and dual KYB rear shock absorbers
give 6.7 inches of travel.
Rugged, large-diameter
25x8-12 front, 25x10-12 rear tires
provide added ground clearance
while maintaining precise handling.
Dual 180mm front
hydraulic disc brakes combine
with sealed 180mm mechanical rear
drum for excellent stopping capabilities.
Additional
Features
Engine design
produces low emissions and meets
EPA and California Air Resources
Board (CARB) off-road emissions
standards.
Water-resistant
left-side glove-box compartment.
Large cargo racks
front and rear allow payloads
of 66 and 133 pounds, respectively.
Heavy-duty trailer
hitch with towing capacity of
850 pounds.
Large, lightweight
plastic fuel tank with 4.2-gallon
capacity.
Unique rear-opening
storage compartment allows access
when rack is loaded.
Triple headlight
system with single 45-watt upper
light and dual 30-watt lower lights
with multi-reflector lenses for
optimal light distribution plus
a 21-watt stopand taillight.
Multi-function
LCD digital meter is compact,
tough and waterproof, featuring
large readouts for fuel gauge,
gear position, speedometer, odometer,
tripmeter, hourmeter/clock and
oil-change reminder. Meter housing
includes lights for Reverse, Neutral,
oil temperature and front differential
indicator.
Waterproof accessory
socket provides 12-volt, 10-amp
power with a built-in temperature-type
fuse.
Uniquely designed
floorboards allow the rider's
feet to grip the footrests while
helping to keep mud and debris
away.
Standard over-fenders
give excellent mud protection.
Thickly padded
seat provides all-day comfort.
Large mud flaps
keep dirt and debris off of the
rider.
Two-piece boot
guards help prevent damage to
CV-joint boots.
Maintenance-free
battery.
Durable, comfortable,
easy-to-use controls.
Keyed ignition
switch for added security.
Triple skid plates.
Easy-to-use parking
brake.
Top-mounted choke
lever for simple operation.
Handlebar switches,
controls and warning labels use
easy to understand graphic symbols.
Standard equipment
includes a tire-pressure gauge.
Assembled in
Timmonsville, South Carolina.
Transferable
six-month limited warranty; extended
coverage available with a Honda
Protection Plan.
