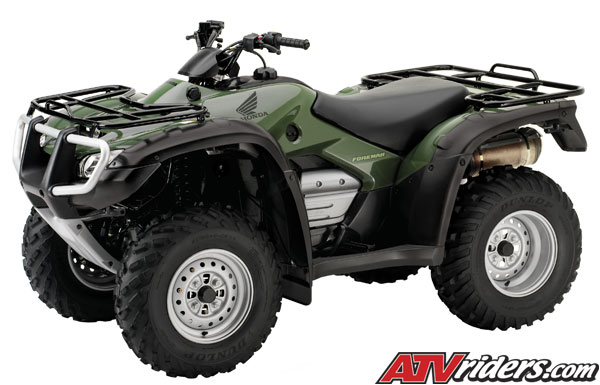

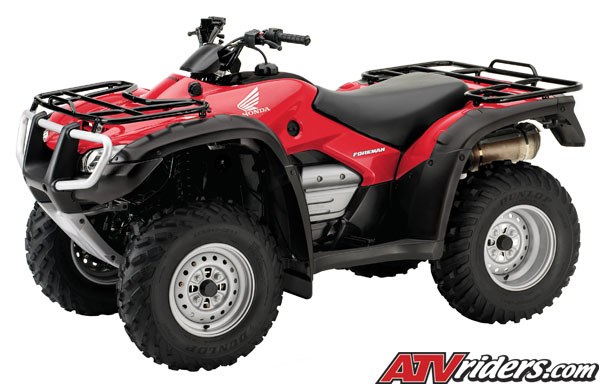

2007 Honda FourTrax Foreman Utility
ATV Model Info
This powerful
two-wheel-drive ATV, now also available
in yellow, features a durable 475cc
engine and Honda's patented dual
oil cooler system for even greater
durability.
SUV styling features
flowing fenders with integrated
headlights and taillights for
a rugged, adventurous look.
Dual front disc
brake calipers feature a patented
built-in scraper system to remove
mud and snow from inside the front
wheel to help prevent build-up
of debris between caliper and
rim to ensure consistent braking
performance.
Brake pads feature
thick, long-wear material with
improved mud durability, feel
and control. Pads feature internal
scraper that gives audible warning
when pad life is low.
Patented oil
cooling system features dual oil
coolers for greater cooling capacity.
This engine's
overhead valve arrangement features
angled valves in a hemispherical
combustion chamber for straighter
intake and exhaust flow for improved
engine performance.
Patented oil
cooling system features dual oil
coolers for greater cooling capacity.
The first cooler is located in
the traditional position in front
of the engine. The second cooler
is mounted higher in a protected
position under the front fender
away from mud and debris and is
fed a cool supply of air through
a front fender duct. Oil is first
routed to the lower cooler then
to the second high-mounted cooler
before returning to the engine.
Rubber-cushion
engine mounting and gear-driven
counterbalancer reduce vibration.
Snorkel-type
air intake system is specially
designed for water crossings.
Integral electric
carburetor heater system improves
driveability and ensures smooth
operation in cold conditions.
Closed crankcase
vent system safeguards against
engine oil contamination.
USDA-qualified
spark arrester/muffler is constructed
of stainless steel.
Super-heavy-duty
automatic clutch for excellent
driveability and towing capacity.
Convenient five-speed
transmission with Reverse.
Convenient electric
starter, with auxiliary recoil
starter and an automatic internal
decompression system.
Wet sump with
large 3.2-quart capacity.
CD ignition with
electronic advance for excellent
performance and reliability.
Reusable foam
air filter.
Honda
Foreman ATV Chassis/Suspension
Rugged frame
and suspension provide an exceptional
7.5 inches of ground clearance.
Independent double-wishbone
front suspension uses KYB shock
absorbers to give 6.7 inches of
travel.
Steel swingarm
and dual KYB rear shock absorbers
give 6.7 inches of travel.
Rugged, large-diameter
25 x 8-12 front, 25 x 10-12 rear
tires provide added ground clearance
while maintaining precise handling.
Dual 180mm front
hydraulic disc brakes and sealed
180mm mechanical rear drum.
Additional
Features
Engine design
produces low emissions and meets
California Air Resources
Board (CARB)
off-road emissions standards along
with 2006 EPA Standards.
Water-resistant
left-side glove-box compartment.
Large cargo racks
front and rear allow payloads
of 66 and 133 pounds, respectively.
Heavy-duty trailer
hitch with towing capacity of
850 pounds.
Large, lightweight
plastic fuel tank with 4.2-gallon
capacity.
Unique rear-opening
storage compartment allows access
when rack is loaded.
Powerful, 326W
AC generator.
Triple headlight
system with single 45W upper light
and dual 30W lower lights with
multi-reflector lenses for optimal
light distribution plus a 21W
stop- and taillight.
Waterproof accessory
socket provides 12-volt, 10-amp
power with a built-in temperature-type
fuse.
Uniquely designed
floorboards allow the rider's
feet to grip the footrests while
keeping mud and debris away from
the rider's feet.
Standard over-fenders
give excellent mud protection.
Thickly padded
seat provides all-day comfort.
Large mud flaps
keep dirt and debris off of the
rider.
Maintenance-free
battery.
Durable, comfortable,
easy-to-use controls.
Keyed ignition
switch for added security.
Triple skid plates.
Easy-to-use parking
brake.
Top-mounted choke
lever for easy operation.
Handlebar switches,
controls and warning labels use
internationally approved
ISO graphic symbols.
Standard tool
kit includes a tire-pressure gauge.
GVWR is 485 pounds.
Assembled in
Timmonsville, South Carolina.
Transferable
six-month limited warranty; extended
coverage available with a
Honda Protection
Plan.
Ownership includes
one-year complimentary membership
for an individual in the Honda
Rider's Club of America(TM) (HRCA(R)).
Benefits include: discounts, travel
benefits, roadside assistance
for ATV transport vehicle while
ATV is being transported, one
year of Honda Red Rider ATV(TM)
magazine, access to HRCA Clubhouse
Web site (www.hrca.
honda.com) and access online
to Honda Common Service Manual.
For HRCA details, call 1-800-847-HRCA.
