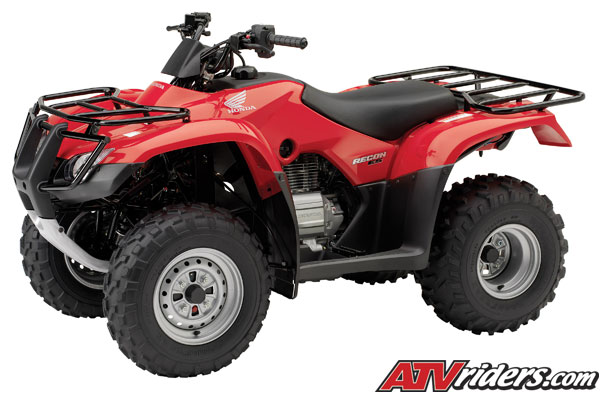

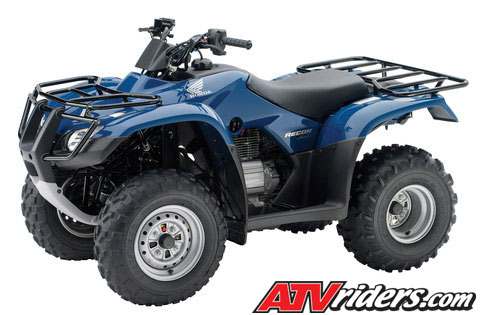

This rugged mid-size
ATV continues to be a best seller
thanks to its stylish appearance
and get-it-done credentials. The
Recon is available as a manual or
with push-button electric shift.
ES model
features Electric Shift
Program (ESP™) for
push-button upshifting and
downshifting (see Technology
Section).
Both the
Recon ES and Recon feature
the high-performance cylinder
head from the TRX250EX for
increased performance.
An oil
cooler is standard equipment
on both Recon ES and Recon
models, ensuring optimal
engine temperatures under
difficult operating conditions.
Both the
Recon and Recon ES have
uniquely designed floorboards,
which allow the rider's
feet to grip the footrests
while helping to keep mud
and debris away from the
rider's feet.
The Recon
ES features a gear indicator
in addition to the Neutral
and Reverse lights provided
on the Recon.
Honda
Recon ES ATV Engine/Drivetrain
Lightweight,
OHV air-cooled 229cc engine is
longitudinally mounted to allow
direct driveshaft alignment to
rear wheels for fewer frictional
losses.
22mm carburetor
with light throttle control offers
good engine response and excellent
fuel economy.
Overhead-valve
design offers a wide, easy-to-use
powerband and compact engine dimensions.
Closed crankcase
vent system safeguards against
engine oil contamination.
Rubber-cushion
engine mounting reduces vibration.
USDA-qualified
spark arrester/muffler is constructed
of stainless steel.
Convenient electric
starter with auxiliary recoil
starter.
Wet sump with
1.6-quart capacity.
CD ignition system
with electronic advance features
an rpm limiter for added durability.
Five-speed transmission
with Reverse and automatic clutch
on the Recon.
Honda
Recon ES ATV Chassis/Suspension
Plush front
and rear suspension for
comfortable all-day riding.
Lightweight
double-cradle steel chassis.
Maintenance-free
shaft drive routes power
directly from the longitudinally
mounted engine without inefficient
directional changes.
Independent
double-wishbone front suspension
gives 5.1 inches of travel.
Steel swingarm
and single rear shock absorber
give 4.9 inches of travel.
Dual sealed
front hydraulic drum brakes
and sealed mechanical rear
drum.
Tires feature
aggressive tread patterns
for excellent traction
Additional
Features
SUV styling
for a rugged, adventurous
look.
Meets current
EPA and CARB emissions levels.
Ergonomically
designed seating and control
layouts provide a comfortable
operating position for a
wide range of rider sizes.
Large cargo
racks front and rear allow
payloads of 33 and 66 pounds,
respectively.
Large,
lightweight plastic fuel
tank with 2.6 gallon-capacity.
Snorkel-type
air-intake system is specially
designed for water crossings.
Dual-headlight
system with 25-watt lights.
LED taillight
and brakelight.
Maintenance-free
battery.
Powerful
110-watt AC generator.
Washable
foam air filter for easy
maintenance and consistent
performance.
Neutral
and Reverse lights on standard-shift
model (TRX250TM).
Durable,
comfortable, easy-to-use
controls.
Keyed ignition
switch for added security.
Easy-to-use
parking brake.
Standard
tool kit includes a tire-pressure
gauge.
Assembled
in Timmonsville, South Carolina.
Transferable
one-year limited warranty;
extended coverage available
with a Honda Protection
Plan.
Purchase
of a new, previously unregistered
Honda USA-certified unit
by an individual retail
user in the United States
qualifies the owner for
a one-year complimentary
membership in the Honda
Rider's Club of America®
(HRCA®). Visit www.hrca.honda.com
for details
