The 420cc FourTrax
Rancher 4x4 cranks up your outdoor
adventures with a full list of features
including selectable 4WD/2WD TraxLok,
torque-sensitive front differential
and fuel injection, plus the option
of Honda's Electric Shift Program.

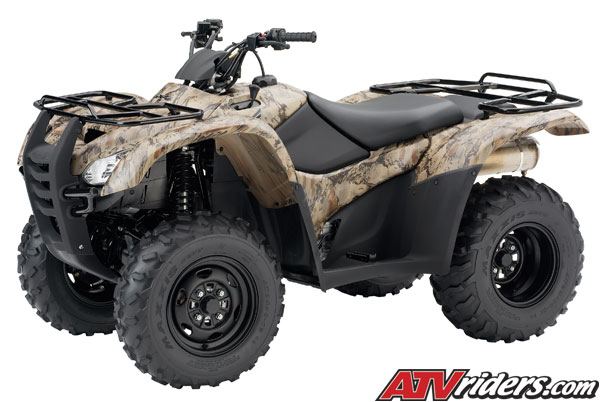

New Black color joins
Red, Olive and NaturalGear™
Camouflage.
Honda
Rancher 4x4 ES ATV Unique
Features
Rugged
OHV liquid-cooled, fuel-injected
420cc longitudinally mounted
engine allows direct driveshaft
alignment to both front
and rear wheels for maximum
drivetrain efficiency
Large radiator
with cooling fan ensures
optimal engine cooling under
difficult operating conditions.
Closed
crankcase vent system safeguards
against engine oil contamination.
ES model
features Electric Shift
Program (ESP™) for
push-button up shifting
and downshifting.
Specially-designed
floorboards on all Ranchers
allow the rider's feet to
grip the footrests while
helping to keep mud and
debris away.
Honda
Rancher 4x4 ES ATV Engine/Drivetrain
Powerful
420cc longitudinally mounted
engine eliminates 90-degree
power transfers and boasts
exceptional horsepower and
torque.
Overhead-valve
design provides compact
engine dimensions for improved
ground clearance while maintaining
a broad, easy-to-use powerband.
Keihin
fuel-injection system provides
crisp performance and ensures
trouble-free operation in
cold conditions and changing
altitudes.
Rubber-cushion
engine mounting and gear-driven
counterbalancer reduce vibration.
Super-heavy-duty
automatic clutch with a
low rpm engagement point
for excellent driveability
and towing capability.
Five-speed
transmission with Reverse
includes an ultra-low first
gear. The Rancher 4x4 model
shifts using a foot-operated
pedal. The Rancher 4x4 ES
model incorporates Honda's
exclusive Electric Shift
Program (ESP) for easy shifts
with the touch of a handlebar-mounted
button.
Traxlok
4WD/2WD selector lever allows
4WD when needed for the
tough stuff and 2WD when
conditions permit.
Convenient
electric starting, with
optional recoil starter
and an automatic internal-decompression
system.
Washable
air filter for easy maintenance
and consistent performance.
Stainless-steel
exhaust header and muffler
for superior corrosion resistance.
Three-chamber
muffler baffling uses no
packing material that can
blow out. Provides long-lasting
performance.
Full transistor
ignition with electronic
advance for excellent performance
and reliability.
Powerful
343-watt AC generator.
Large 7.2-liter
airbox with reusable foam
air filter provides more
air to the engine for increased
performance.
Honda
Rancher 4x4 ES ATV Chassis/Suspension
Rugged frame
and suspension provide an exceptional
6.5 inches of ground clearance.
Steering-mechanism
design features light effort and
a tight turning radius of 10.5
feet.
Independent double-wishbone
front suspension uses premium
shock absorbers to provide 6.3
inches of suspension travel for
a plush, comfortable ride.
Steel swingarm
and gas charged rear shock absorber
provide 6.3 inches of suspension
travel for superb comfort and
compliance.
Tough, large-diameter
24x8-12 front, and wide 24x10-11
rear tires provide excellent ground
clearance while maintaining precise
handling.
Dual front hydraulic
disc brakes and sealed mechanical
rear drum brakes for strong stops.
Additional
Features
Engine
design produces low emissions
and meets EPA and California
Air ResourcesBoard (CARB)
off-road emissions standards.
FE model
has multifunction LCD digital
instrumentation that is
compact, tough and waterproof,
featuring large readouts
for gear position, speedometer,
odometer, resettable tripmeter
and hourmeter. Instrument
housing includes indicator
lights for Reverse, Neutral,
oil-temperature, fuel-injection
and 4WD.
Optional
waterproof accessory socket
provides 12-volt, 10-amp
power with a built-in temperature-type
fuse.
Large cargo
racks front and rear carry
payloads of 66 and 133 pounds,
respectively.
Heavy-duty
trailer hitch with 850-pound
towing capacity.
Large,
lightweight plastic fuel
tank with 3.7-gallon capacity.
Fuel gauge
is standard equipment.
Snorkel-type
air-intake system is specially
designed to resist water.
Under-seat
storage compartment allows
access when rack is loaded.
Thickly
padded seat provides all-day
comfort.
Large fenders
give excellent mud protection.
Twin-headlight
system with 30-watt bulbs
features multireflector
lenses for optimal light
distribution.
Combination
LED stop- and taillight.
USDA-qualified
spark arrester/muffler designed
for quiet operation without
wool packing for long-lasting
performance.
Constant-velocity-joint
boot guards help prevent
damage to boot covers.
Tough 12-amp-hour
maintenance-free battery.
Durable,
comfortable, easy-to-use
controls.
Keyed ignition
switch for added security.
Full-length
synthetic lower skidplate
with integrated front brush
guard.
Easy-to-use
parking brake.
Handlebar
switches, controls and warning
labels use easy-to-understand
graphic labels.
Standard
equipment includes a tire-pressure
gauge.
GVWR is
1074 pounds (TRX420FE)/1071
pounds (TRX420FM).
Assembled
in Timmonsville, South Carolina.
Transferable
one-year limited
warranty; extended coverage
available with a Honda Protection
Plan.
Purchase
of a new, previously unregistered
Honda USA-certified unit
by an individual retail
user in the United States
qualifies the owner for
a one-year complimentary
membership in the Honda
Rider's Club of America®
(HRCA®). Visit www.hrca.honda.com
for details.
