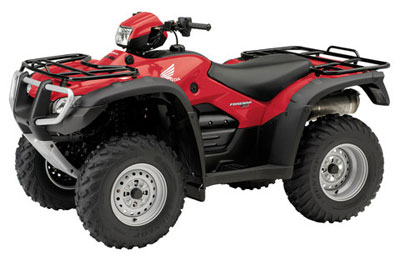

| Model: |
TRX500FE (with
ESP) / TRX500FM |
| Engine
Type: |
475cc air-cooled
OHV longitudinally mounted single-cylinder
four-stroke |
| Bore
and Stroke: |
92mm x 71.5mm |
| Compression
Ratio: |
8.5:1 |
| Carburetion:
|
36mm constant-velocity |
| Ignition:
|
CD with electronic
advance |
| Starter: |
Electric with
auxiliary recoil |
| Clutch: |
Automatic |
| Transmission:
|
ESP five-speed
with Reverse (TRX500FE)
Five-speed with Reverse (TRX500FM) |
| Driveline:
|
Direct front
and rear driveshafts with Traxlok
and torque-sensitive front differential |
| Suspension
|
Front: Independent
double-wishbone; 6.7 inches
travel
Rear: Swingarm with dual shocks;
6.7 inches travel |
| Brakes |
Front: Dual
hydraulic 180mm disc
Rear: Sealed 180mm mechanical
drum |
| Tires |
Front: 25
x 8-12
Rear: 25 x 10-12 |
| Length: |
83.0 inches |
| Width: |
46.8 inches |
| Height:
|
46.5 inches |
| Seat
Height: |
33.9 inches |
| Ground
Clearance: |
7.5 inches |
| Wheelbase: |
50.7 inches |
| Fuel
Capacity: |
4.1 gallons,
including 0.7-gallon reserve |
| Colors:
|
White, Olive,
NaturalGear Camouflage |
| Recommended
for riders 16 years of age and
older. |
