| Model: |

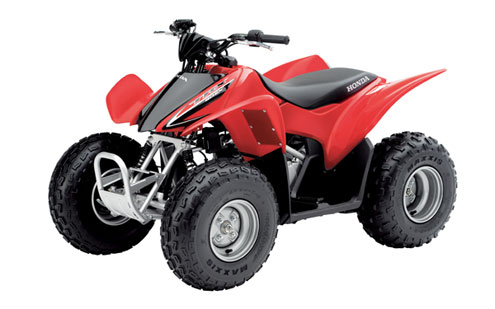

TRX90EX |
| Engine
Type: |
86cc
air-cooled SOHC single-cylinder
four-stroke |
| Bore
and Stroke: |
47mm
x 49.5mm |
| Carburetion:
|
15mm
piston-valve |
| Ignition: |
CDI |
| Starter:
|
Electric |
| Clutch:
|
Automatic |
| Transmission: |
Four-speed |
| Driveline: |
O-ring-sealed
chain |
| Suspension
|
Front:
Independent suspension;
2.6 inches travel
Rear:
Swingarm with single
shock; 2.6 inches travel |
| Brakes |
Front:
Dual sealed drum
Rear:
Sealed drum |
| Tires
|
Front:
20 x 7-8
Rear:
19 x 8-8 |
| Length: |
58.6
inches |
| Width:
|
35.2
inches |
| Height:
|
36.5
inches |
| Seat
Height: |
26.0
inches |
| Ground
Clearance: |
3.9 inches |
| Wheelbase:
|
38.7
inches |
| Turning
Radius: |
8.3
feet |
| Fuel
Capacity: |
1.7 gallons,
including 0.3-gallon reserve |
| Colors: |
Red,
White |
| Recommended
for riders 12 years of
age and older. |
