2011

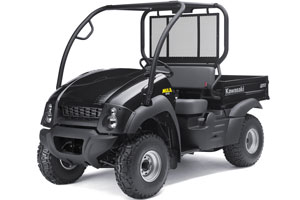

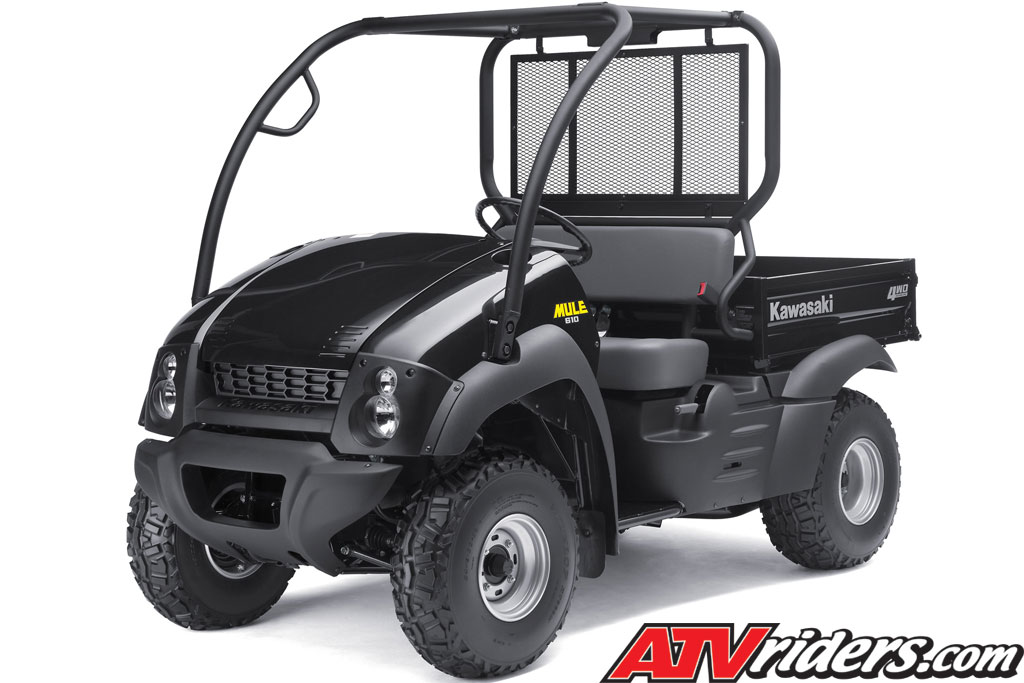

Kawasaki MULE 610 4x4
UTV Specifications
|
| Engine |
Four-stroke, air-cooled single |
|
|
|
|
|
|
|
|
|
| Air filter |
Snorkel-type with two-stage dry replaceable element |
|
| Oil filter |
Automotive-type spin-on canister |
|
| Ignition |
Magneto and transistor |
|
| Electrical |
12V DC, 14 amp-hour battery, alternator |
|
| Transmission |
Continuously variable transmission with high and low range, plus reverse |
|
| Final drive |
Shaft-driven selectable four-wheel drive, dual-mode rear differential |
|
| Exhaust |
Muffler with USFS-approved spark arrestor |
|
| Front Tire Size |
24x9-10 tubeless |
|
| Rear Tire Size |
24x11-10 tubeless |
|
| Front suspension / wheel travel |
MacPherson strut / 3.1 in. |
|
| Rear suspension / wheel travel |
Unit swing axle / 3.1 in. |
|
|
|
| Brakes |
Four-wheel hydraulic drums, triple sealed |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Roll over protective structure (ROPS) |
This structure meets ROPS requirements for wheeled tractors under SAE J1194, 7.1.1, 7.1.2, and 7.5. This structure also meets FMVSS 216 Roof Crush resistance requirement |
|
| Cargo bed dimensions (LxWxH) |
41.1 x 35.4 x 9.6 in. / 8.08 cu. ft. |
|
|
|
| Cargo Bed Capacity |
400 lbs. |
|
| Towing capacity |
1,100 lbs. |
|
|
|
| Top speed |
25 mph, governed |
|
| Instruments |
Oil temperature meter, hour meter, 35w headlights, taillight and stoplight |
|
| Color Choices |
Super Black, Dark Royal Red |
|
|
|
| Good Times™ Protection Plan |
12 or 24 months |
|
