The KAPS also features a high-flow cover that helps cool the CVT while providing superb splash protection and water-proofing. This reliable system is combined with a dependable, low-maintenance shaft drive to transmit power to a dual-mode rear differential that can be locked to maximize traction, or unlocked to minimize ground disturbance when making tight turns. The operator can also select four-wheel drive for extra pulling power in difficult conditions.

Helping the filter stay clean and last longer—especially in the rugged conditions for which this Kawasaki was built—the engine air and converter cooling air are drawn from the top of the cab frame, where there’s less dust.

Controls on the Mule 3010 4x4 Diesel are also easy to operate. The high/low-range, forward/reverse shift lever and the lever for selecting four-wheel drive operation are all placed within easy reach on the dash. The coolant temperature warning light is easy to see, and a push-button control activates the headlights. Other standard features include an hour meter, fuel gauge and horn.

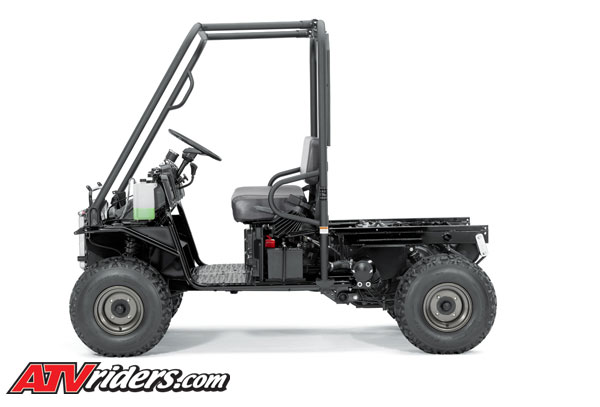

A ladder-type frame rides on a DeDion rear leaf-spring suspension

The chassis of the Mule 3010 4x4 Diesel is a ladder-type frame that rides on a DeDion rear leaf-spring suspension designed to carry heavy loads yet provide a smooth ride when the cargo bed is empty. MacPherson struts handle front suspension duties, while rack-and-pinion steering is light and maneuverable over rough terrain. Four hydraulically operated, self-adjusting drum brakes that are sealed to protect from water, mud and other debris provide stopping power, and 23-inch tires provide a comfortable ride and maximum traction over a variety of surfaces.

The Mule 3010 4x4 Diesel utility vehicle can carry up to 1,100 pounds in its steel cargo bed and can tow up to 1,200 pounds. Other standard features include a 5.3-gallon fuel tank, spin-on oil filter and a U.S. Forest Service-approved spark arrestor in its muffler.

Authentic Kawasaki Accessories are available through Kawasaki dealers.
