2011

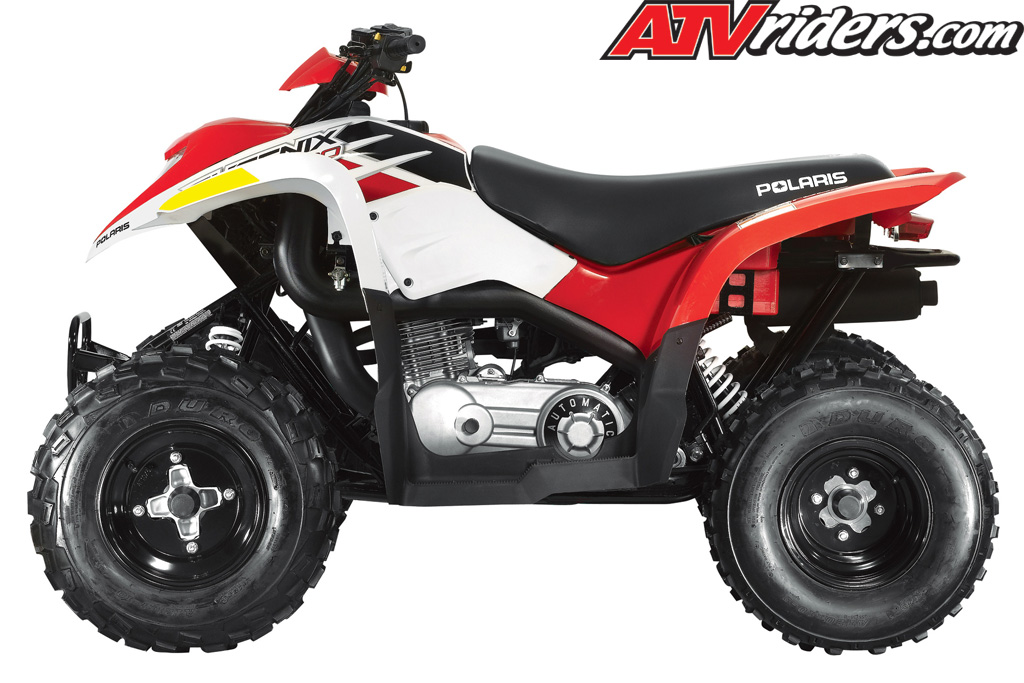

Polaris Phoenix 200 Youth Sport
ATV Specifications |
| Engine
Type |
4-Stroke
Single Cylinder |
| Displacement |
196cc |
| Fuel
System |
Carbureted |
| Cooling |
Air |
| Transmission/Final
Drive |
Automatic
PVT F/N/R; Shaft |
| Drive
System |
2WD |
Engine Braking System/
Active Descent Control |
Not
Equipped |
| Front
Suspension |
Dual
A-Arm with 7" (17.8 cm) Travel |
| Rear
Suspension |
Mono-Shock
Swingarm with 6.5" (16.5 cm) Travel |
| Front/Rear
Brakes |
Front
Hydraulic Disc; Rear Mechanical Drum;
(Independent front/rear brake levers
plus rear foot brake) |
| Parking
Brake |
Lockable
Hand Lever |
| Front
Tires |
21
x 7-10; Duro |
| Rear
Tires |
20
x 10-9; Duro |
| Wheels |
Stamped
Steel |
| Wheelbase |
45"
(114.3 cm) |
| Dry
Weight |
395
lb (179 kg) |
Overall Vehicle Size
(L x W x H) |
65
x 42 x 42"
(165.1 x 106.7 x 106.7 cm) |
| Ground
Clearance |
5.7"
(14.5 cm) |
| Seat
Height |
32"
(81.3 cm) |
| Fuel
Capacity |
2.5
gal (9.5 L) |
Bed Box Dimensions
(L x W x H) |
N.A. |
| Front/Rear
Rack Box Capacity |
N.A. |
| Payload
Capacity |
N.A. |
| Hitch
Towing Rating |
300
lb (136.1 kg) - with Accessory Hitch |
| Unbraked
Trailer Towing Capacity |
N.A.. |
| Hitch/Type |
Accessory/Drawbar |
| Cargo
System |
N.A. |
| Lighting |
Single
Li/Low Headlight; Single Rear Brakelight/Taillight |
| Electronic Power Steering |
N.A. |
| Instrumentation |
N/R
Light, Hi-Temp Light |
| Colors |
White/Red |
