2011 Polaris Sportsman 800 XP EFI 4x4 ATV Model Info

NAVIGATION

Introduction | Specifications

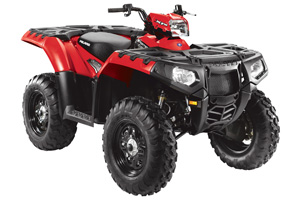

2011 Polaris Sportsman 800 XP EFI 4x4 ATV

Sportsman 800 XP EFI 4x4 ATV - Indy Red

Hardest Working Features

Hydraulic brakes with large discs
Polaris On-Demand, True All-Wheel Drive
Engine Braking with Active Descent Control
Highest rack capacity at 120 lbs. /54.4 kg. front and 240 lbs./108.9 kg rear and
100 tie-down points

Smoothest Riding Features

NEW! Approximate 12-pound weight reduction NEW! Improved Engine Braking System NEW! STX seat vinyl NEW! Maxxis® Tires Rolled IRS rear, Dual A-Arms with exclusive anti-kick-back steering in front	Highest pulling power and towing Highest suspension travel (9.0 in/22.9 cm front, 10.25 in/26 cm rear) Highest ground clearance at 12 in/30.5 cm Available in Indy Red, Sage Green and new Polaris® Pursuit Camo
Limited Edition & EPS Features & Benefits - New Features!

All the features of the Sportsman XP 850 with the addition of Electronic Power Steering (EPS).
Larger fuel tank– 5.25 gal/19.9 liters vs. 4.5 gal/17 liters
Carlisle 489 II tires
STX seat vinyl
Approximate 12-pound weight reduction
LUK engine coupler
Improved Engine Braking System
Available in Painted Crimson Red Metallic, Sagebrush Green, Stealth Black
Limited Editions: Orange Madness, Browning® Edition Pursuit

2011 Polaris Sportsman 850 XP Limited Edition EFI 4x4 ATVs

Sportsman 850 XP EPS LE - Pursuit Camo	Sportsman 850 XP EPS LE - Orange Madness

2011 Polaris Sportsman 800 XP EFI 4x4 ATV Specifications
Engine Type	4-Stroke Twin Cylinder
Displacement	760cc High Output (H.O.)
Fuel System	Electronic Fuel Injection
Cooling	Liquid
Transmission/Final Drive	Automatic PVT H/L/N/R; Shaft
Drive System	On-Demand True AWD/2WD/ VersaTrac Turf Mode
Engine Braking System/ Active Descent Control	Not Equipped
Front Suspension	Dual A-Arm 9.6" (24.4 cm) Travel
Rear Suspension	Dual A-Arm, IRS 9" (22.9 cm) Travel
Front/Rear Brakes	4-Wheel Hydraulic Disc with Dual-Bore Front Calipers
Parking Brake	Hand-Actuated
Front Tires	25 x 10-12; 489
Rear Tires	25 x 11-12; 489
Wheels	Stamped Steel
Wheelbase	76" (193 cm)
Dry Weight	1,237 lb (562 kg)
Overall Vehicle Size (L x W x H)	114 x 60 x 76" (290 x 152 x 193 cm)
Ground Clearance	12" (30.5 cm)
Seat Height	N.A.
Fuel Capacity	9 gal (34.1 L)
Bed Box Dimensions (L x W x H)	36.5 x 54 x 11.5" (93 x 137 x 29 cm)
Front/Rear Rack Box Capacity	N.A./1,000 lb (453.6 kg)
Payload Capacity	1,500 lb (680.4 kg)
Hitch Towing Rating	2,000 lb (907.2 kg)
Unbraked Trailer Towing Capacity	N.A.
Hitch/Type	Standard/2" Receiver
Cargo System	Lock & Ride
Lighting	55W low/ 60W high
Electronic Power Steering	Not Equipped
Instrumentation	Digital Gauge, Speedometer, Odometer, Tachometer, Tripmeter, Hour Meter, Clock, Gear Indicator, Fuel Gauge, Hi-Temp/Low-Batt Lights, DC Outlets (2)
Colors	Solar Red, Sage Green, Pursuit Camo
