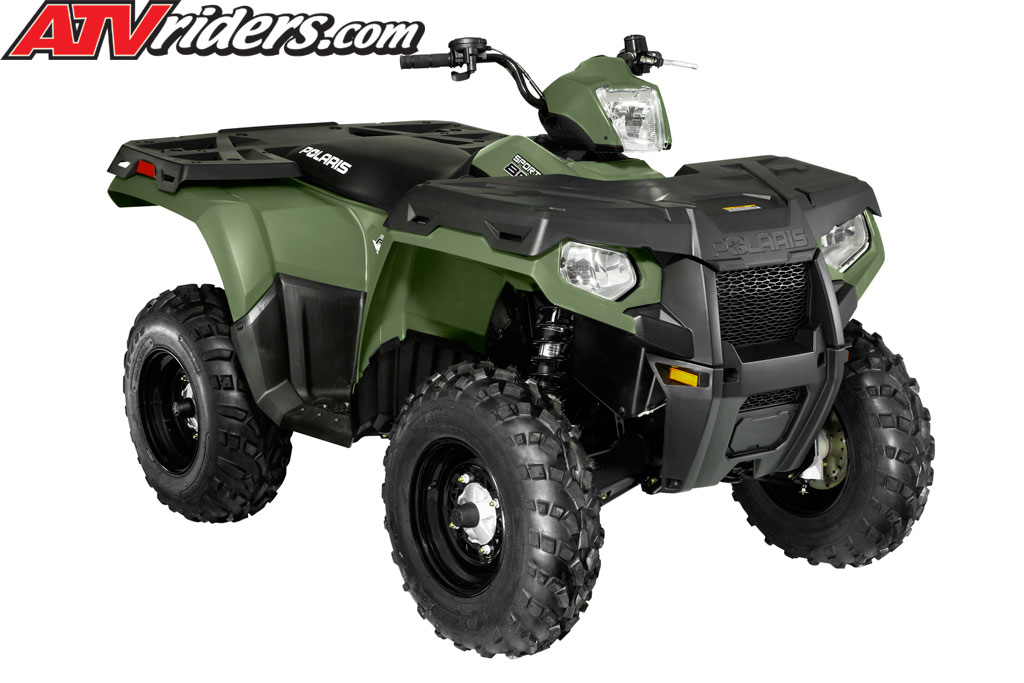

2014 Polaris Sportsman 800 EFI 4x4 ATV
Specifications |
| Engine
Type |
4-Stroke
Twin Cylinder |
| Displacement |
760cc |
| Fuel
System |
Electronic
Fuel Injected |
| Cooling |
Liquid |
| Transmission/Final
Drive |
Automatic
PVT P/R/N/L/H; Shaft |
| Drive
System |
On-Demand
True AWD/2WD |
Engine Braking System/
Active Descent Control |
Accessory/N.A.. |
| Front
Suspension |
MacPherson
Strut With 8.2" (20.8 cm) Travel |
| Rear
Suspension |
Dual
A-Arm, IRS 9.5" (24.1 cm) Travel |
| Front/Rear
Brakes |
Single
Lever 4-Wheel Hydraulic Disc with Hydraulic
Rear Foot Brake |
| Parking
Brake |
Park
in Transmission/Lockable Hand Lever |
| Front
Tires |
25
x 8-12; 489 |
| Rear
Tires |
25
x 10-12; 489 |
| Wheels |
Stamped
Steel |
| Wheelbase |
50.5"
(128.9 cm) |
| Dry
Weight |
741
lb (336 kg) |
Overall Vehicle Size
(L x W x H) |
83
x 48 x 48"
(210.8 x 121.9 x 121.9 cm) |
| Ground
Clearance |
11.25"
(28.6 cm) |
| Seat
Height |
33.75"
(85.7 cm) |
| Fuel
Capacity |
4.1
gal (15.5 L) |
Bed Box Dimensions
(L x W x H) |
N.A. |
| Front/Rear
Rack Box Capacity |
100
lb (45.4 kg)/200 lb (90.7 kg) |
| Payload
Capacity |
480
lb (w/180 lb person) / 217.7 kgw/81.6
kg person) |
| Hitch
Towing Rating |
1,500
lb (680.4 kg) |
| Unbraked
Trailer Towing Capacity |
1,914
lb (868.2 kg) |
| Hitch/Type |
Standard/1.25"
Receiver |
| Cargo
System |
Lock
& Ride |
| Lighting |
Dual
50w Low Beam Bumper Lights / Single
50w High Beam Pod Light |
| Electronic Power Steering |
N.A. |
| Instrumentation |
Digital
Gauge, Speedometer, Odometer, Tachometer,
Tripmeter, Gear Indicator, Fuel Gauge,
AWD Indicator, Hi-Temp/Low-Batt Lights,
DC Outlet |
| Colors |
Blue Fire LE, Sage Green |
