Gate-type shift lever is mounted on
the left side providing simple and precise
shifting in various riding conditions

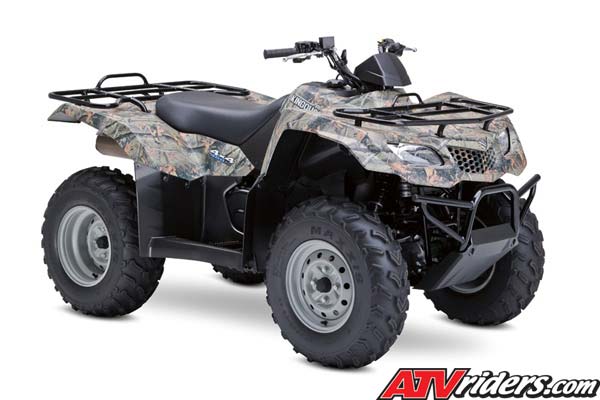

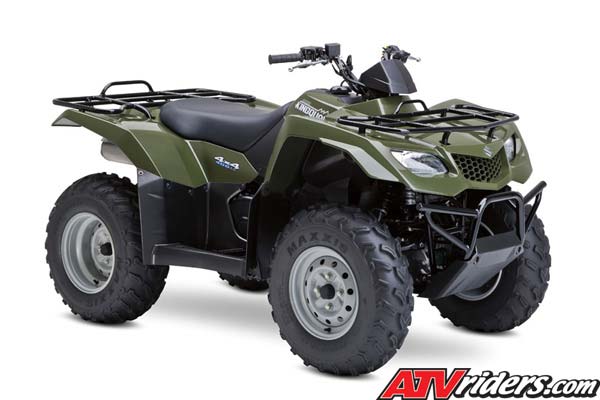

KingQuad
400 AS 4x4 ATV (Also Availiable in Red)
KingQuad 400
AS ATV Overview
Angular and aggressive
bodywork featuring high clearance fenders,
the distinctive KingQuad headlights
and grill, a T-shaped seat, and highlighted
by a large diameter steel tube bumper
Large 4.2-gallon fuel
tank for long riding range and improved
rider comfort
Large 190mm diameter
front disc brakes combined with front
brake calipers featuring 34mm-diameter
pistons for improved braking performance
25-inch Maxxis tires
featuring an aggressive dual stage tread
pattern for consistent traction and
a quiet ride are mounted on durable
steel wheels
Semi-Automatic version
of the KingQuad400 - combines comfort
and practical features with a sporty
feel and an aggressive look - the best
features and value in the mid-size class
KingQuad 400
AS ATV Engine
Dependable 376cc single-cylinder,
4-valve, 4-stroke engine is tuned for
high-torque output and quick acceleration,
and uses Suzuki's well-proven SACS air-oil
cooling system. Gear-driven balancer
shaft reduces vibration
Keihin™ CVK32
carburetor provides smooth throttle
response and high fuel efficiency -
throttle pulley system designed for
light throttle lever operation
Five-speed transmission
with automatic clutch, high/low range
and reverse - subtransmission and reverse
controlled by a single automotive-style,
fuel tank-mounted drive selection lever
Choose 2WD or 4WD
operation with convenient handlebar-mounted
control lever
Torque-sensing limited-slip
front differential provides maximum
traction and light steering in tight
turns
Electric and recoil
starting with "in gear" starting
capability - engine will start in any
transmission setting by pulling the
hand brake lever and pressing the starter
button
KingQuad 400
AS ATV Chassis/Suspension
Styled for a big, strong
appearance with high radius fenders,
a rugged-style grill and large front
bumper designed for easy winch installation
Compact instrument
display including speedometer, odometer,
tripmeter, and indicator lights for
neutral, reverse and oil temperature
12V/120W electrical
outlet mounted in left front fender
- standard automotive-style outlet fits
a wide range of electrical accessories
Twin 35/35W fender-mounted
multi-reflector headlights, plus large
5/21W combination taillight and brake
light as standard equipment
Durable steel frame
made of large diameter, thin-wall tubing
for maximum strength and minimal weight
Lightweight polyethylene
skid plate and bumper guard provide
maximum protection with minimal resistance
over rocks and other obstacles
Independent double
A-arm front suspension with class-leading
6.7 in. of wheel travel for a comfortable
ride on all types of terrain
Swingarm-style rear
suspension with oil-damped shock absorbers
provide 6.7 in. of wheel travel and
9.3 in. of ground clearance
High-capacity racks
and towing capacity, plus 4.0 liter
storage box now located and protected
under the seat
