Electronic fuel injection
features the Suzuki Dual Throttle Valve
System (SDTV) - maintains optimum air
velocity in the intake tract for smooth
low-to-mid rpm throttle response and
improved engine torque
Auto Fast Idling System
(AFIS), automatically sets throttle
valve opening during cold engine starts
by monitoring coolant temperature
Digital ignition system
provides optimum ignition timing with
separate maps for each cylinder
Semi-gear driven valve
system simplifies maintenance and minimizes
cam sprocket size and engine height
for optimum engine placement
Lightweight shim-under-bucket
valve system operates 36mm intake and
33mm exhaust valves, plus valve timing
with emphasis on low-rpm power
High-mounted stainless
steel exhaust system with aluminum mufflers
tuned to enhance engine torque output
PAIR - air injection
system reduces CO and HC emissions -
California model equipped with catalyst
in exhaust to further reduce emissions

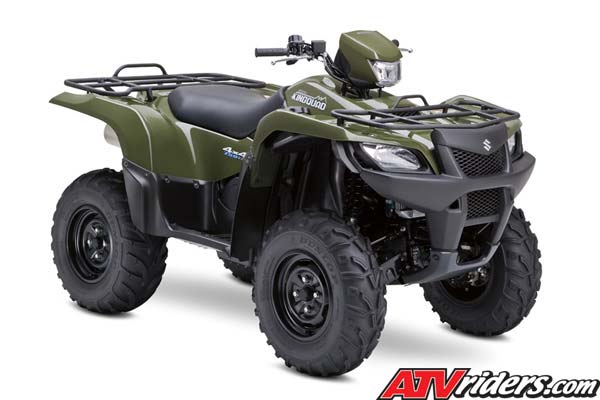

KingQuad 750AXi
ATV Chassis/Suspension
Black-painted frame
and swingarm for stylish appearance
Sport-styled front
fairing for wind protection, plus large
comfortable seat, engine guard, and
hand guards - fairing includes large
multi-reflector 60/55W headlights
Height-adjustable
windshield for increased wind protection
and comfort - can be adjusted to three
positions in a 50mm vertical range
Easy-to-read instruments
with large speedometer and tach dials,
plus LCD display for fuel level, engine
temperature, odometer, tripmeters and
clock
Standard hand guards
designed for maximum wind protection
Engine undercover
shaped for ample ground clearance and
sleek appearance
Large rear luggage
rack with rubber-padded platform to
help keep bags and luggage in place
Aluminum twin-spar
frame and aluminum swingarm are lightweight,
compact and rigid - bolt-on sub-frame
simplifies maintenance
Cartridge-style 43mm
front fork with adjustable preload provides
6.3 inches of wheel travel for a comfortable
ride
Link-type rear suspension
features a piggyback-style shock absorber
with adjustable rebound damping and
a knob-operated hydraulic preload adjuster
- 6.3 inches of wheel travel
Dual front disc brakes
with large 310mm rotors and twin-piston
calipers, plus single-disc rear brake
with 260mm rotor and single-piston caliper
Lightweight cast aluminum
wheels - F: 2.50 x 19 with 110/80R-19
radial tire, R: 4.0 x 17 with 150/70R-17
rear tire
Large 5.8 gallon fuel
tank for long-range operation
