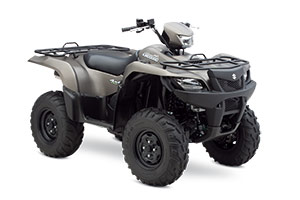

2014 Suzuki KingQuad 750 AXi Utility
ATV Specifications
|
|
2014
Suzuki KingQuad 750 AXi Utility ATV |
2014 Suzuki KingQuad 750 AXi Utility
ATV Specifications:
|
| ENGINE: |
|
| Bore Stroke |
104.0 mm (4.094 in) x 85.0 mm (3.346 in) |
| Compression Ratio |
10.0 : 1 |
| Engine |
722cc (44.1 cu. in), 4-stroke, liquid-cooled, DOHC |
| Fuel System |
Suzuki Fuel Injection |
| Ignition |
Electronic ignition (CDI) |
| Lubrication |
Wet sump |
| Starter |
Electric starter |
| CHASSIS: |
|
| 4WD |
4WD |
| Brakes Front |
Disc brake, twin |
| Brakes Rear |
Sealed oil-bathed multi-disc |
| Color |
Terra Green and Flame Red |
|
Curb Weight |
302 kg (666 lbs) |
| Final Drive |
Shaft drive |
| Fuel Tank Capacity |
17.5 L (4.6/3.8 US/Imp gal) |
| Ground Clearance |
270 mm (10.6 in) |
| Overall Length |
2115 mm (83.3 in) |
| Overall Width |
1210 mm (47.6 in) |
| Seat Height |
880 mm (34.6 in) |
| Suspension Front |
Independent, double wishbone, coil spring, oil damped |
| Suspension Rear |
Independent, double wishbone, coil spring, oil damped |
| Tires Front |
AT25 × 8-12, tubeless |
| Tires Rear |
AT25 × 10-12, tubeless |
| Transmission |
Automatic variable ratio (V-belt), with high-/low-range, and reverse |
| Wheelbase |
1280 mm (50.4 in) |
| WARRANTY: |
|
| Warranty |
12 month limited warranty. |
