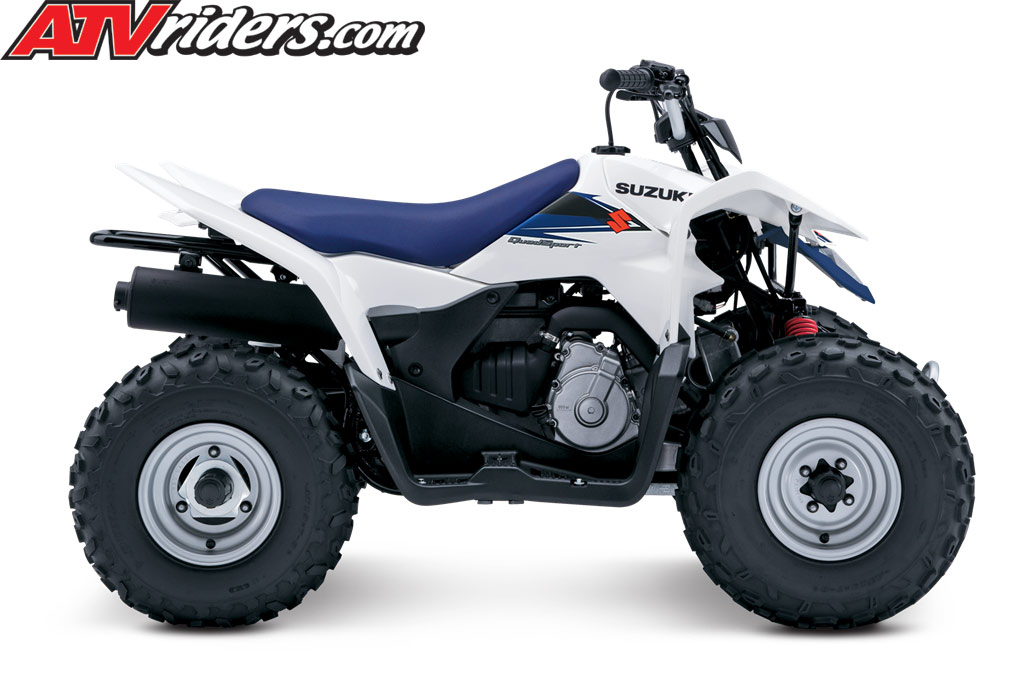

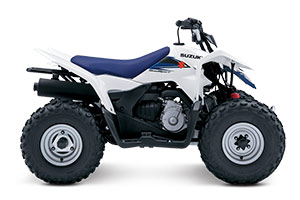

2014 Suzuki QuadSport Z90 Youth ATV
2014 Suzuki QuadSport Z90 Youth ATV
Specifications:
CHASSIS:
Brakes Front
Drum brake
Brakes Rear
Drum brake
Color
White
Curb Weight
127 kg (280 lbs)
Final Drive
RK530, 60 links
Fuel Tank Capacity
6.0 L (1.6/1.3 US/Imp gal)
Ground Clearance
150 mm (5.9 in)
Overall Length
1505 mm (59.3 in)
Overall Width
875 mm (34.4 in)
Seat Height
650 mm (25.6 in)
Suspension Front
Independent, swing axle, coil spring, oil damped
Suspension Rear
Swingarm type, coil spring, oil damped
Tires Front
AT19 × 7-8 tubeless
Tires Rear
AT19 × 7-8 tubeless
Transmission
Automatic
Wheelbase
1005 mm (39.6 in)
ENGINE:
Bore Stroke
45.5 mm (1.791 in) x 55.2 mm (2.173 in)
Compression Ratio
9.5 : 1
Engine
4-stroke, air-cooled
Fuel System
MIKUNI VM16, single
Ignition
Electronic ignition (CDI)
Lubrication
Wet sump
Starter
Electric and recoil
WARRANTY:
Warranty
12 month limited warranty.
