There's
no limit to how tough and versatile a middleweight
ATV can be. For proof, check out the 2006 Eiger
400 4x4 Automatic. The Eiger lets you quickly
and conveniently select two- or four-wheel drive
operation. And whether you have a long day of
work ahead or a long trail in front of you,
you'll appreciate your Eiger's load of technically
advanced features.

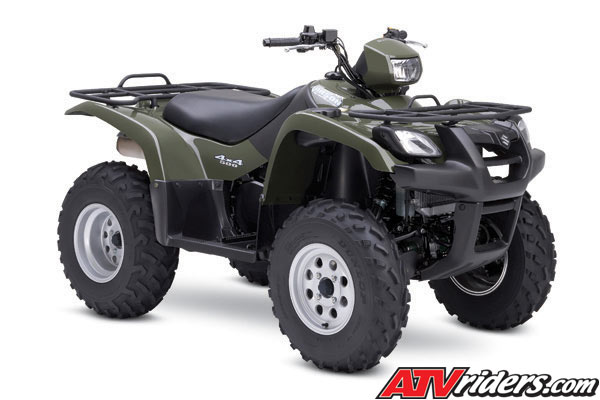

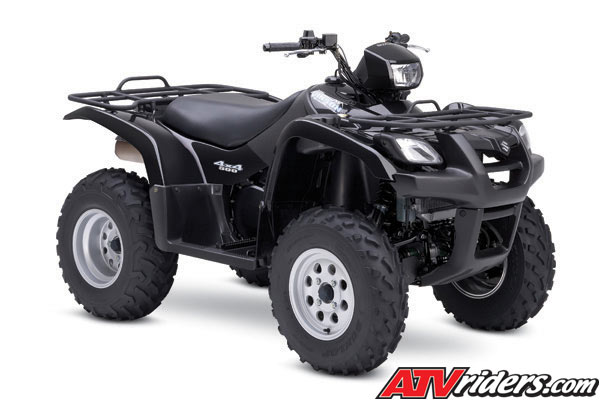

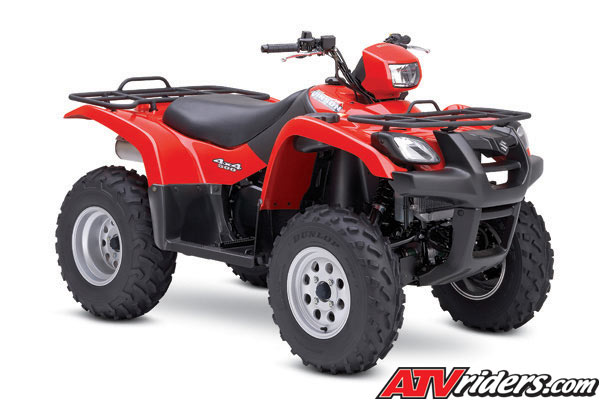

Vinson 500
4x4 Auto Engine
Dependable air/oil cooled,
single cylinder, 4-valve, 4-stroke engine
tuned for high torque output and quick acceleration.
Gear-driven balancer shaft reduces vibration
High capacity oil-cooler
ensures consistent engine operating temperature
with a thermostat-controlled electric fan
KeihinT CVK32 carburetor
provides smooth throttle response and high
fuel efficiency - includes throttle pulley
system designed for light throttle lever operation
V-belt CVT QuadMatic transmission
with high/low range and reverse - all controlled
by a single automotive-style, fuel tank-mounted
gear selection lever
Choose 2WD or 4WD operation
with convenient handlebar-mounted control
lever
Torque-sensing limited-slip
front differential provides maximum traction
and light steering in tight turns
Advanced engine brake system
minimizes free-wheeling to reduce downhill
speed
Electric and recoil starting
with "in gear" starting capability
- engine will start in any transmission setting
by pulling the hand brake lever and pressing
the starter button
CDI ignition and powerful
220 watt charging system with maintenance-free
battery
Vinson 500
4x4 Auto Chassis/Suspension
Styled for a big, strong
appearance with high radius fenders, a rugged-style
grill and large front bumper designed for
easy winch installation
Compact instrument display
including speedometer, odometer, tripmeter,
and indicator lights for neutral, reverse
and oil temperature
12V/120W electrical outlet
mounted in left front fender - standard automotive-style
outlet fits a wide range of electrical accessories
Standard pre-wired harness
for easy winch installation
Twin 30/30W fender-mounted
multi-reflector headlights, plus large 5/21W
combination taillight and brake light as standard
equipment
Durable steel frame made
of large diameter, thin-wall tubing for maximum
strength and minimal weight
Lightweight polyethylene
skid plate and bumper guard provide maximum
protection with minimal resistance over rocks
and other obstacles
Independent double A-arm
front suspension with class-leading 6.69 in.
of wheel travel for a comfortable ride on
all types of terrain
Swingarm-style rear suspension
with oil-damped shock absorbers provide 6.69
in. of wheel travel and 9.3 in. of ground
clearance
Large 190mm diameter front
disc brakes and water-resistant rear drum
brake for consistent braking performance under
all operating conditions
Durable pressed-steel wheels
and large 25" all-terrain tires
High-capacity racks and towing
capacity, plus 4.5 liter rear-mounted storage
box
Long-range operation with
4.0 gallon fuel tank
Key
Features
Mid-size 400cc utility model
that combines comfort and practical features
with a sporty feel and an aggressive look
- the best features and value in the mid-size
class
