Here
is an awesome recreational sport four-wheeler
with all the looks of a high-performance machine.

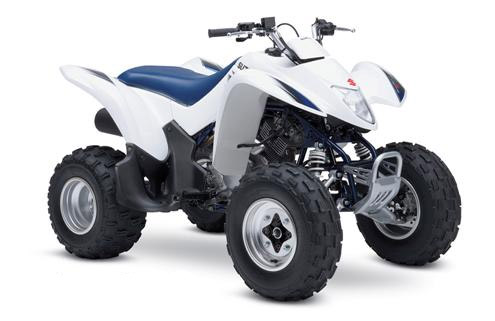

Check out the QuadSport Z250's Z400-inspired
graphics, radical fenders and aggressive stance.
It shouts sport performance - and has the power
to make good on the promise.
As a sporting middleweight,
the QuadSport Z250 combines agile responsiveness
with a smooth and torquey powerband. Count in
a wide range of features designed for comfort
and convenience, and you've got the perfect
choice for sport riders of all skill levels.
Engine
Single cylinder, SOHC, air-cooled,
4-stroke engine designed to produce smooth,
usable power over a wide rpm range
Cylinder head features screw/locknut
valve adjustment system for simplified maintenance,
plus a link-plate-type cam chain and automatic
tensioner to reduce mechanical noise
Power is enhanced by a Mikuni
BSR 29mm carburetor mated to a large capacity
airbox and a specially tuned exhaust system
for a throaty sound
Convenient electric start
system with Start-In-Gear feature
Electric start system and
CDI ignition are powered by compact maintenance-free
battery with 150 watt charging system
Five-speed transmission
with automatic clutch includes an easy-to-use
reverse gear system - place the transmission
in neutral - turn the fender-mounted knob
and depress the shift lever
Low-maintenance shaft final-drive
system is simple and reliable
Chassis/Suspension
Aggressive-styled bodywork
similar to the LT-Z400 - includes high-clearance
fenders, performance-inspired graphics and
vertically-mounted halogen headlight
Wide, T-shaped seat combines
comfort with a functional shape that allows
the rider to easily shift his/her weight
Single 40/40W, body-mounted
halogen headlight provides and exciting look
and bright illumination - large 5/21W tailight/brake
light combination is standard
Rugged steel-tube frame with
standard steel skid plate and tube-type bumper
Independent double A-arm
front suspension with preload-adjustable oil-damped
shock absorbers - provides 6.1 inches of wheel
travel for a comfortable ride over all types
of terrain
Swingarm-type rear suspension
features single shock absorber with five preload
adjustments and 6.1 inches of rear wheel travel,
plus 9.1 inches of ground clearance
Large diameter front disc
brakes with single-piston pin-slide calipers
and single cable-operated rear drum brake
Lightweight aluminum wheels
and rugged tires (F: 22x7-10, R: 20x10-9),
for high style and traction under a wide variety
of terrain conditions
Serrated-type footpegs for
high grip and comfort with additional built-in
mudguard protection
Convenient, 5-liter water-resistant
storage box
Large 2.8 gallon fuel tank
with vacuum-operated fuel petcock
Key
Features
Entry-level sport model
loaded with style, performance and rider-friendly
features
