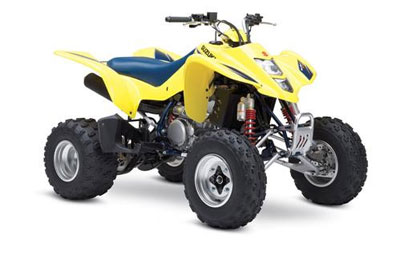

2008 Suzuki QuadSport Z400 ATV - Specifications

Specifications:

Engine:	398cc, 4-stroke, single cylinder, liquid-cooled, DOHC, 4-valve, TSCC
Bore Stroke:	90.0 x 62.6mm
Compression Ratio:	11.3:1
Fuel System:	Mikuni BSR36
Lubrication:	Dry sump
Ignition:	Digital/transistorized
Transmission:	5-speed, with reverse
Final Drive:	# 520 chain
Overall Length:	1830mm (72.0 in.)
Overall Width:	1165mm (45.9 in.)
Overall Height:	1160mm (45.7 in.)
Seat Height:	810mm (31.9 in.)
Ground Clearance:	265mm (10.4 in.)
Wheelbase:	1245mm (49.0 in.)
Dry Weight:	169kg (372 lbs.)
Suspension Front:	Independent, double A-arm, fully adjustable preload, compression & rebound damping, 8.5 inches of travel
Suspension Rear:	Linkage-type, gas/oil damped, fully adjustable spring preload, adjustable compression and rebound damping, 9.1 inches of travel
Brakes Front:	Dual hydraulic discs
Brakes Rear:	Single hydraulic disc
Tires Front:	AT 22 x 7-10
Tires Rear:	AT 20 x 10-9
Fuel Tank Capacity:	10 liters (2.6 gal.)
Color:	Yellow, White
