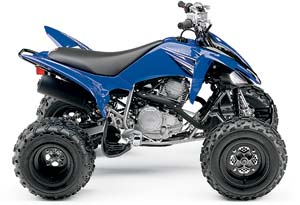

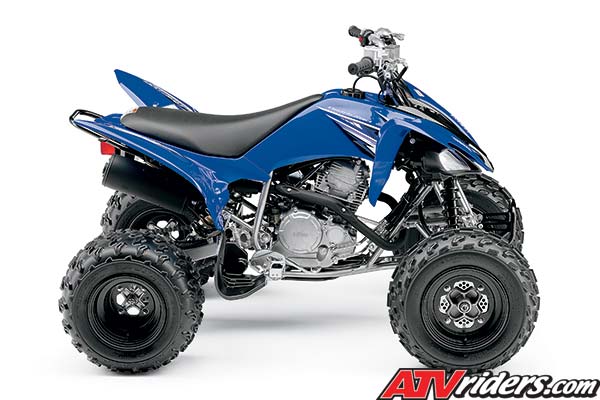

2009 Yamaha Raptor 250 Sport ATV - Specifications

Yamaha Raptor 350 ATV Specifications:

Engine
Type	249cc, 4-Stroke Single, Air / Oil Cooler, SOHC
Bore x Stroke	74mm x 58mm

Compression Ratio	9.5:1

Carburetion	Mikuni 29mm BSR

Ignition	DC - CDI

Starting System	Electric

Transmission	5-Speed Manual Clutch

Drive Train	2WD; Sealed O-Ring Chain, Eccentric Adjustment

Chassis

Suspension/Front	Independent Double Wishbone, 7.5” w/ 5-way Preload Adjustment.

Suspension/Rear	Swing Arm, 7.9”, and Threaded Preload Adjustment.

Brakes/Front	Dual hydraulic discs

Brakes/Rear	Hydraulic disc

Tires/Front	AT20x7-10

Tires/Rear	AT19x10-9

Dimensions
Length	64.0”

Width	42.1”

Height	40.9”

Seat Height	28.7”

Wheelbase	43.7”

Ground Clearance	3.9”

Fuel Capacity	2.4 Gallons

Dry Weight	313 Lbs

Other
Lighting	Dual 30W Krypton Multi-reflector Headlights & 21/5W Brake light
