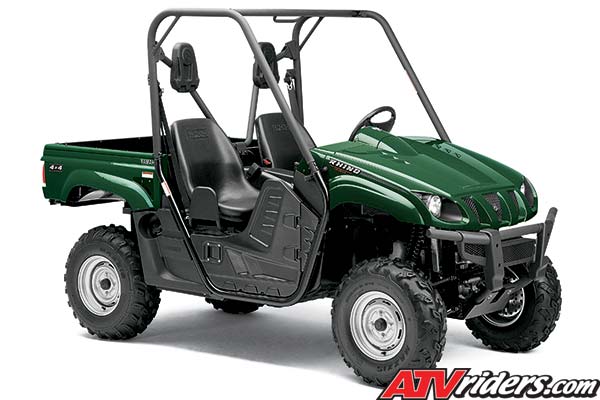

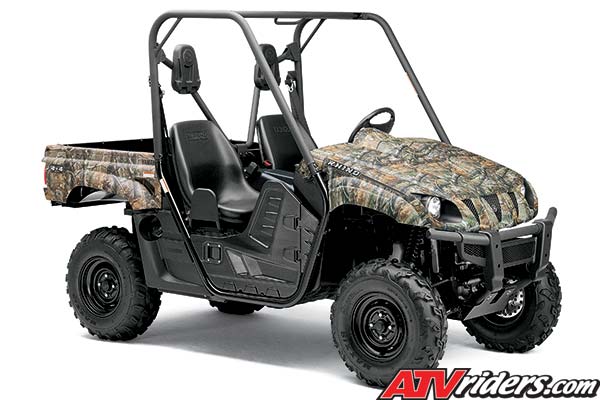

2009 Yamaha Rhino 450 Automatic
4x4 UTV Side X Side
Rhino
450 Side X Side UTV Key Features
|
- This groundbreaking off-road recreational
side-by-side is like nothing else on
the market—a way to get out there
in style and comfort with a friend and
your gear.
- Comfortable interior with automotive-type
controls: steering wheel, left-side
foot brake pedal/right-side foot accelerator
pedal, center-mounted console
shifter and parking brake lever, turn-to-start
ignition switch, indicator lights and
12-volt accessory outlet.
- 421cc liquid-/oil-cooled, four-stroke
engine and light weight add up to great
all-around performance, excellent terrainability
and great fuel effi ciency.
- Industry-exclusive fully automatic
Ultramatic® transmission with dual-range
(Hi/Lo) drive and reverse is the most
advanced drive system available.
Maintaining constant belt tension reduces
wear, gives great throttle response
and provides industry-exclusive all-wheel
downhill engine braking.
- Industry-exclusive three-position
On-Command® In/Out 4WD feature lets
you switch between 2WD, limited-slip
4WD and fully locked differential 4WD—
all with the simple push of a button.
- Fully independent four-wheel suspension:
double wishbones front and rear deliver
7.3 inches of wheel travel, and fi ve-way
preload-adjustable shocks
provide maximum tire contact and comfort
while navigating rough terrain.
- Thick bucket seats and that great
long-travel suspension system work together
to provide the smoothest ride in the
industry.
- Designed, engineered and assembled
in the USA.
|
Rhino
450 Side X Side UTV Engine
|
- Super-reliable overhead-cam 421cc
liquid-cooled engine produces abundant
low-rev torque, fat midrange and serious
top-end muscle
- Dual-range (Hi/Lo) drive with reverse
taps into more pulling power in low
and more performance in high than any
machine in its class.*
- Console-mounted dual-range (H/L/N/R)
shift lever.
- Mikuni® 33mm BSR carburetor and
high-output DC-CDI ignition serve up
great throttle response and excellent
fuel efficiency.
- Sealed drive case keeps out water
and debris, and a hand-operated side
cover drain lets out what little gets
in.
- Specially designed full stainless
steel-exhaust system features aluminum
heat shields and a screen-type spark
arrestor for superb power characteristics
with minimum noise output.
- Large-capacity aluminum radiator
and oil cooler with fan-assist delivers
maximum cooling efficiency and is positioned
high in the frame for optimal protection.
- Specially designed drive system air
intake vent prevents overheating and
keeps water and mud from entering drive
case.
- Easy-access, tool-free air filter
box.
|
Rhino
450 Side X Side UTV Chassis/Suspension
|
- CAD-designed steel frame is lightweight
and features outstanding durability
with superior rigidity for superb handling.
- Light, responsive rack-and-pinion
steering features a fully sealed steering
column and double U-jointed steering
linkage for smooth operation and class-leading
turning radius—even in 4WD.
- Large-diameter ventilated hydraulic
front disc brakes and shaft-mounted
hydraulic rear disc provide outstanding
stopping power in a variety of conditions.
- 12.1-inch ground clearance delivers
maximum underbelly protection while
enhancing terrainability.
- Low-maintenance front shaft drive
features gear case and electronic servo-activated
2WD/4WD/Diff lock via the On-Command®
system. Direct rear shaft drive eliminates
the U-joint for greater durability and
more efficient power transfer at all
rpm.
- Heavy-duty CV joint guards protect
against rock and debris damage.
- Stamped steel dump bed is rated to
haul 400 pounds of gear. Center-mounted
2-inch receiver trailer hitch comes
standard and can tow more than 1200
pounds.
|
|
- Comfortable passenger grab handles.
- Large, specially designed seats are
extra plush and supportive for all-day
driver and passenger comfort.
- Tough, rotomolded doors keep mud,
water and dirt on the trail where they
belong.
- Operator and passenger seat belts.
- Dual 30-watt multireflector Krypton
bulb headlights with high/low beams
feature stylishly sleek cat-eye design;
dual 5-watt/21-watt tail/brake lights.
- Large, 7.9-gallon fuel tank features
a fuel level gauge.
- Large style headrests offer good
looks and comfort.
- Tough wrinkle-finish coating on the
upper frame.
- Maintenance-free battery provides
power, even in cold weather.
- Assembled in Newnan, GA, USA.
- Optional digital instrument panel
boasts multifunction LCD display with
speedometer, odometer, dual tripmeter,
hourmeter, 4WD status, transmission
position and clock.
|
