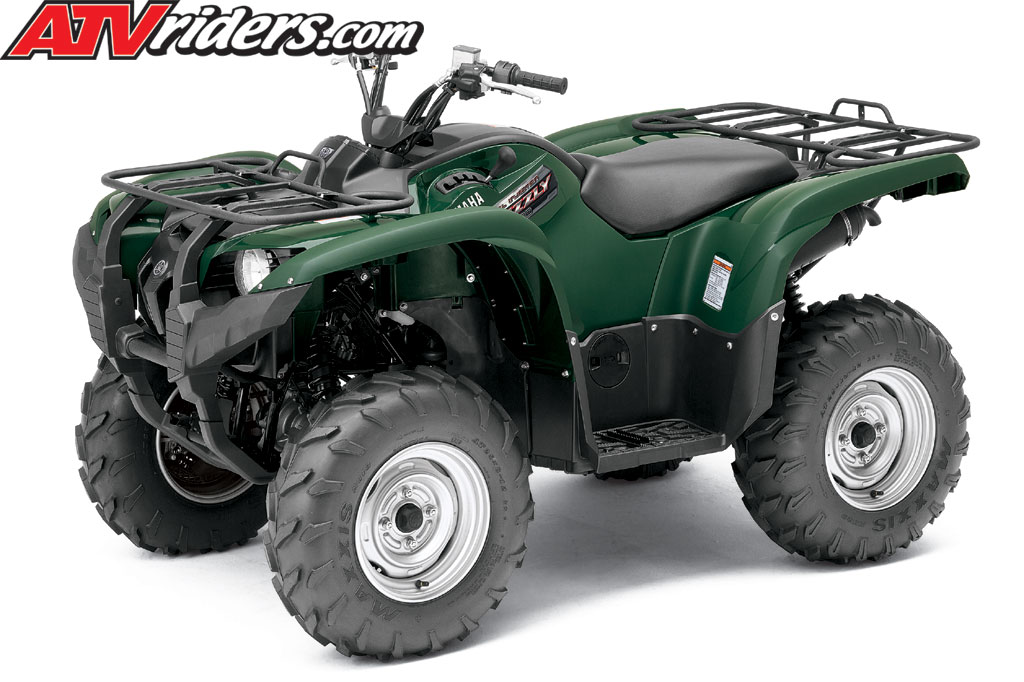

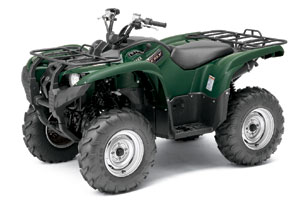

2012 Yamaha Grizzly 700 FI Auto 4x4 Utility ATV - Specifications

Yamaha Grizzly 700 FI ATV Specifications:

MSRP*	$8,899 (Hunter Green) Available from July, 2011 $8,899 (Steel Blue) Available from July, 2011 $9,349 (Realtree® AP™ Camouflage) Available from September, 2011

Engine:
Type	686cc, 4-Stroke Single, Liquid Cooled w/ Fan, SOHC

Bore x Stroke	102mm x 84mm

Compression Ratio	9.2:1

Carburetion	Yamaha Fuel Injection (YFI), 44mm

Ignition	32 Bit ECU

Starting System	Electric

Transmission	Yamaha Ultramatic® V-belt/H, L, N, R, P

Engine Braking	All wheel

Drive Train	Yamaha On-Command® pushbutton 3-way locking differential, 2WD, 4WD, locked 4WD; shaft


Chassis:

Suspension/Front	Independent double wishbone, 7.1” travel w/5-way preload adjustment

Suspension/Rear	Independent double wishbone, 9.5” travel w/5-way preload adjustment

Brakes/Front	Dual hydraulic disc

Brakes/Rear	Dual hydraulic disc

Tires/Front	AT25 x 8-12

Tires/Rear	AT25 x 10-12


Dimensions:
L x W x H	81.3" x 46.5" x 48.8"

Seat Height	35.6"

Wheelbase	49.2"

Turning Radius	126"

Ground Clearance	11.8"

Fuel Capacity	5.3 gal.

Dry Weight	600 lb.

Rack Capacity	99 lb. front/187 lb. rear

Towing Capacity	1,322 Lbs.


Other:
Instrumentation	Digital LCD Multi-function display. Speedo, Odo, Dual Trip, Hour, Clock, Fuel, and Gear Position

Lighting	Dual 35W Halogen Multi-reflector Headlights & 21/5W Brake light
