2013 Yamaha Raptor 125 Sport ATV -
Specifications
NAVIGATION
Introduction
|
Specifications

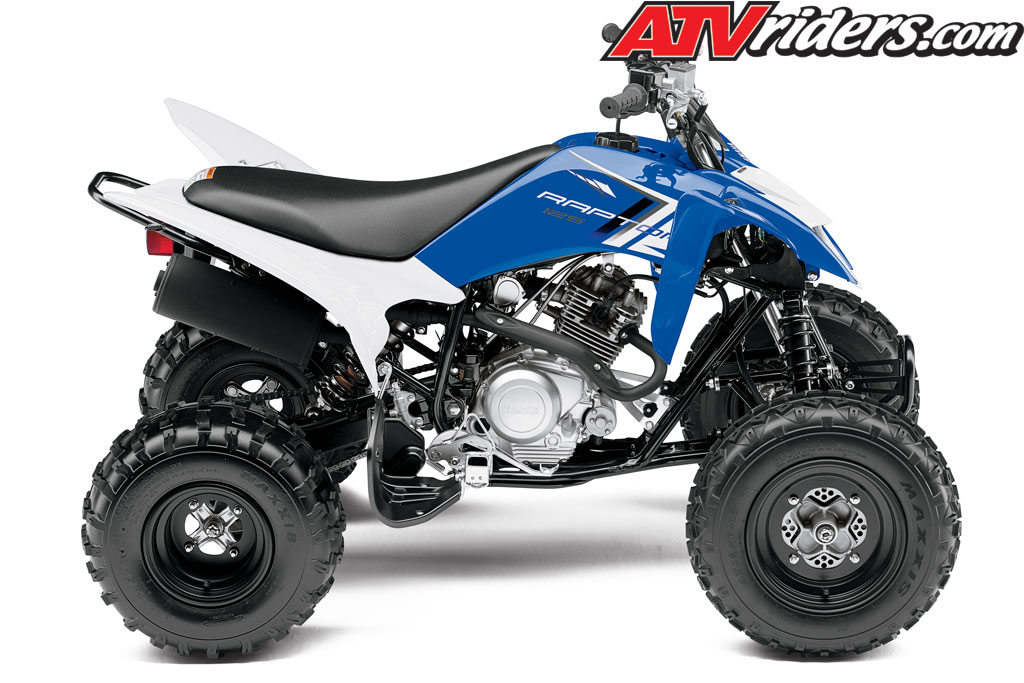

2013 Yamaha Raptor 125 ATV - Yamaha Blue / White
2013 Yamaha Raptor 125 ATV - White w/ choice of graphics
2013 Yamaha Raport 125 ATV Specifications:
Engine
Type
124cc air-cooled 4-stroke: SOHC; single
Bore x Stroke
54.0 x 54.0mm
Compression Ratio
10:0:1
Carburetion
Mikuni® 29mm BSR
Ignition
DC-CDI
Starting System
Electric
Transmission
5-Speed Manual Clutch
Drive Train
2WD; sealed O-ring chain, eccentric adjustment
Chassis
Suspension/Front
Independent double wishbone; 5-way preload-adjustable shocks, 7.5-in travel
Suspension/Rear
Swingarm: 7.9-in travel
Brakes/Front
Dual hydraulic disc
Brakes/Rear
Hydraulic disc
Tires/Front
Maxxis® AT19 x 6-10
Tires/Rear
Maxxis® AT18 x 9-8
Dimensions
L x W x H
63.4 x 40.0 x 39.8 in
Seat Height
28.1 in
Wheelbase
43.7 in
Ground Clearance
3.3 in
Fuel Capacity
2.4 gal.
Wet Weight
299 lb
Other
Lighting
Single 35/36.5W headlight & 21W/5W brakelight
Color
Team Yamaha Blue/White; White w/choice of graphics
