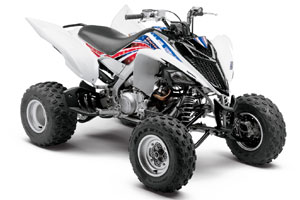

2013 Yamaha Raptor 700 Sport ATV

New aggressive styling enhances the Raptor 700’s menacing looks.
New Maxxis® tires deliver class leading traction.
Twin piston rear brake calipers are added all around for excellent
stopping power.
The Raptor 700 is proudly assembled in the U.S.A., alongside Yamaha’s 4x4 and Side x Side utility vehicles.

New aggressive styling makes the Raptor 700 as menacing as it really is. The mighty Raptor 700 is ready to go whether the destination is the dunes,
trails or the track.
Powered by our most potent big-bore Raptor en ever – 686cc of liquid cooled, fuel-injected po The engine produces big torque right off idle, transitioning into a fat mid-range and monstrous top-end.
Big power and lightweight, a combination makes any ATV rider take notice, is standard on Raptor 700, with a hybrid steel aluminum frame and
Controlled-Fill aluminum sub-frame and cast aluminum swingarm combining to produce a super-strong structure and the lightest ATV in its class.
A thick comfortable seat provides excellent com while the dual counterbalancers, electric start and reverse keep things nice and civilized
needed, but when it comes time to pull the tri the big-bore Raptor 700 stands tall.
The YFZ inspired handling of the Raptor 700 incredible to experience blasting through the wo Thanks to the 9.1 inches of front travel and inches out back, the trail bumps smooth out w the rider keeps things under control. With combination of power, solid handling, and a great suspension this machine has to be experienced t fully appreciated.

Forged lightweight piston, connecting rod and crankshaft in the 686cc engine are light and strong, for a hard-hitting, quick-revving powerplant that revs all the way to 9000 rpm. Dual counterbalancers keep it smooth.
Yamaha Fuel Injection (YFI) means consistently excellent engine performance in a wide range of conditions, elevations and temperatures.
Competition-spec dry-sump lubrication system boosts usable horsepower and keeps overall engine size more compact.
Digital TCI w/16-bit electronic control unit controls fuel injection and ignition systems for consistent performance and fantastic throttle response.
Reliable pushbutton electric start in any gear adds extra convenience.
Race-bred five-speed transmission with reverse, along with Raptor 700’s monstrous powerband, means there’s a choice of gears in just about all situations.
YZ-spec ratchet shifter ensures smooth, resistance-free shifting under power. Heavy-duty clutch features extra-sturdy basket and plates designed to harness the Raptor 700’s power. Easy-to-reach oil filter and tool-free air filter provide added convenience.

State-of-the-art chassis combines a steel front section with an aluminum rear section and detachable subframe to create a super-strong structure.
Compact, CAD-designed chassis creates the ideal wheelbase for light, quick, super-accurate steering.
YZ-style piggyback rear shock gives 10.1-inch wheel travel
along with preload adjustment.
Twin aluminum-piston front disc brakes deliver tremendous stopping power. Discs are drilled, which helps reduce unsprung weight for excellent suspension compliance.
New twin piston rear brake calipers are added for excellent stopping
power on the trail or in the dunes.
Cast aluminum swingarm carries an eccentric quick-adjust drive chain mechanism that takes most of the work out of that task.
Handlebar-mounted flip-type parking brake lever and rear brake caliper.
High-performance 21x7-10 front and 20x10-9 rear Maxxis® tires with a specially designed tread pattern deliver superb, class-leading traction for razor-sharp handling in a variety of terrain and conditions.
Lightweight aluminum wheels help enhance suspension performance by reducing unsprung weight.
Race-inspired 45mm serrated foot pegs provide excellent boot traction.
Controlled-fill aluminum subframe is light and strong. So is the composite front grab bar.bar.

Additional Features

Inner rolled wheels reduce weight while maintaining strength.
Long, YZ-style seat allows maximum rider comfort and movement with superb sport-riding ergonomics.
Multireflector 30-watt Krypton headlights set back in the front cowl add the perfect no-compromises sporting accent, and an LED taillight provides great visibility.
Large-capacity, 2.9-gallon fuel tank and Yamaha Fuel Injection (YFI) mean more time on the trail between fill-ups.
Thumb throttle lever has a smooth shape for a feel riders
