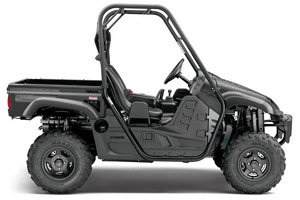

Yamaha Rhino 700 Tactical Black SE 4x4 SxS / UTV Specifications:

MSRP*	$12,099 (Tactical Black) Available from June 2012
Engine:
Type	686cc, 4-Stroke Single, Liquid Cooled w/ Fan, SOHC
Bore x Stroke	102mm x 84mm
Compression Ratio	9.2:1
Carburetion	Yamaha Fuel Injection (YFI) , 41mm
Ignition	32 Bit ECU
Starting System	Electric
Transmission	Yamaha Ultramatic V-Belt / H,L,N,R
Drive Train	Yamaha On-Command push button 3-way locking differential, 2WD, 4WD, locked 4WD; Shaft
Chassis:
Suspension/Front	Independent Double Wishbone, 7.3” w/ 5-way Preload Adjustment
Suspension/Rear	Independent Double Wishbone, 7.3” w/ 5-way Preload Adjustment.
Brakes/Front	Dual hydraulic disc, twin piston
Brakes/Rear	Hydraulic Disc, Self Adjusting, Shaft Mounted
Tires/Front	AT25x8-12 NHS
Tires/Rear	AT25x10-12 NHS
Dimensions:
L x W x H	113.6 x 56.6 x 73 in
Wheelbase	75.2”
Turning Radius	153.5”
Ground Clearance	12.1"
Fuel Capacity	7.9 gal.
Dry Weight	1124 Lbs.
Bed Capacity	400 lb.
Towing Capacity	1212 lb.
Other:
Instrumentation	Digital LCD Multi-function display. Speedo, Odo, Dual Trip, Hour, Clock, Fuel, and Gear Position
Lighting	Dual 30W Krypton Multi-reflector Headlights & Dual 21/5W Brake light
