2014 Yamaha Grizzly 450 4x4 Utility ATV Info

NAVIGATION

Features & Benefits | Grizzly 450 EPS | Specifications

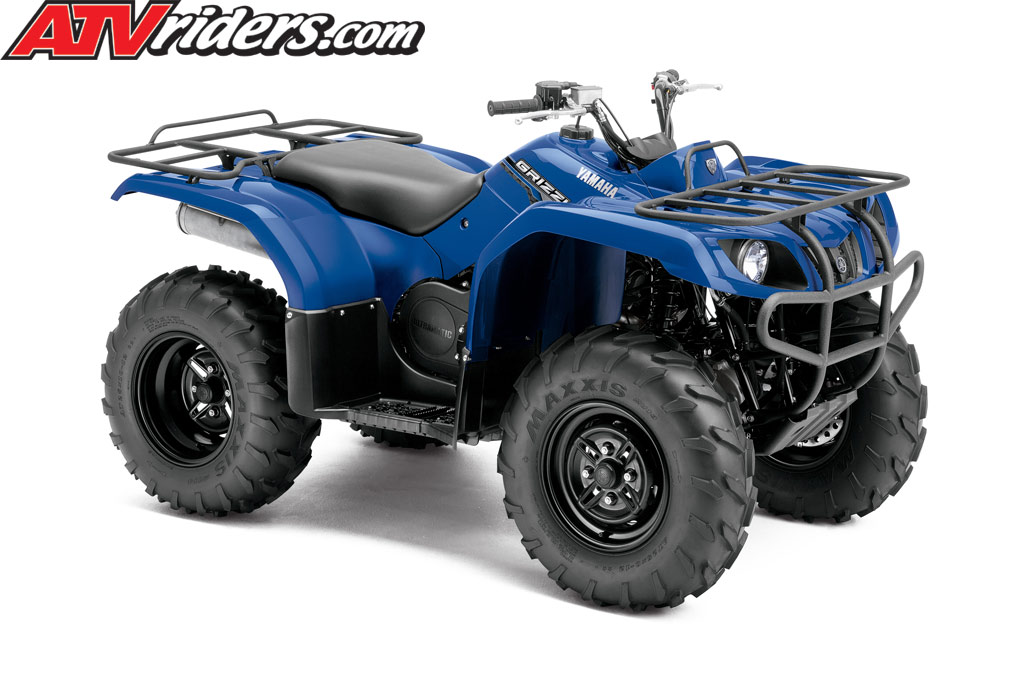

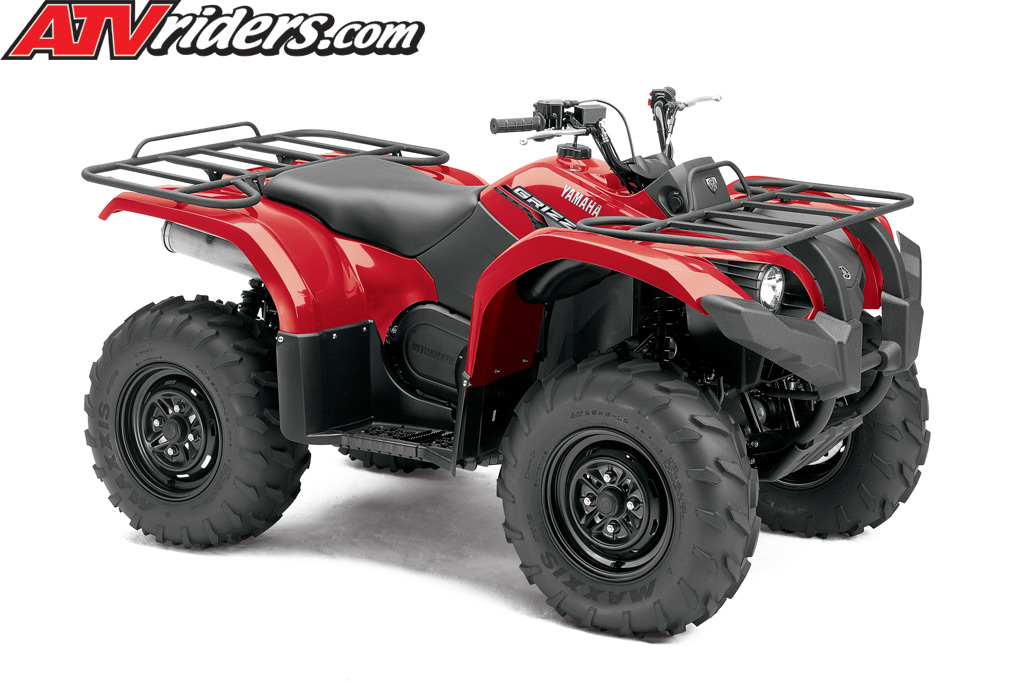

2014 Yamaha Grizzly 450 4x4 Utility ATV - Green	2014 Yamaha Grizzly 450 4x4 Utility ATV - Red	2014 Yamaha Grizzly 450 4x4 Utility ATV - Blue

Yamaha Grizzly 450 4x4 Utility ATV Key Features

The Yamaha Grizzly 450 Automatic 4x4 EPS has many of the same great features as big brothers Grizzly 700 and 550, including four-wheel independent suspension, and powered by a fuel-efficient, liquid-cooled engine.
Ultramatic transmission with dual-range (Hi/Lo) drive and reverse is the most advanced drive system available. An automatic centrifugal clutch maintains constant belt tension for reduced belt wear and uses a sprag clutch for all-wheel downhill engine braking in 4WD mode and reverse.
Three-position On-Command In/Out 4WD feature lets you switch between 2WD, limited-slip 4WD and a fully locked differential 4WD—all with the simple push of a button. Override button allows engine to make maximum rpm in full Diff. Lock mode.
Fully independent long-travel four-wheel suspen- sion with WideArcTM A-arms up front and five-way preload-adjustable shocks provides maximum ground clearance for unparalleled comfort over rough terrain.
Ground clearance of 10.8 and a high-impact plastic skidplate provide terrainability and undercarriage protection.
Advanced digital instrument panel boasts a multi- function LCD display with speedometer, odometer, dual tripmeter, hour meter, 4WD status, transmis- sion position, clock and fuel gauge.
A sealed rear wet brake provides powerful, consis- tent stopping power with reduced maintenance.

421cc liquid-cooled, SOHC four-stroke single is rugged and powerful.
Electric Power Steering system lightens steering for superior comfort and less rider fatigue.
Semi-oval slide 33mm BSR Mikuni carburetor and high-output DC-CDI ignition deliver fantastic throttle response and engine performance at all rpm.
Pushbutton electric starting.
•Stainless steel muffler and header design provides superior power characteristics, exhaust sound and durability.
Left-side–mounted (Hi/Lo/N/R/P) shift lever is easily accessible.
Large-capacity aluminum radiator provides maximum cooling efficiency and is positioned high in frame for optimal protection.
Compact engine design features a 45-degree cylinder angle for maximum ground clearance and lower seat height for quick, responsive steering and agility.
Gear-driven crankshaft balancer and rubber-damper engine mounts reduce vibration.
Specially designed drive system air intake vent helps prevent overheating and keeps water and mud from entering drive case.
Tool-free air filter box for easy access and quick maintenance.

Lightweight chassis features outstanding durability with superior rigidity for class-leading agility and handling.
Light steering and a class-leading turning radius combine for increased comfort and incredible maneuverability—even in 4WD.
Fully independent four-wheel suspension features a double wishbone suspension front and rear delivering 6.3 inches and 7.1 inches of travel.
Using a newly-designed multi-disc system running in gear oil, the sealed rear wet brake combines strong, consistent stopping power and greatly reduced maintenance requirements.
Large-diameter ventilated hydraulic front disc brakes deliver tremendous stopping power in a variety of conditions.
Direct front shaft drive eliminates U-joint for greater durability and more efficient power transfer when engaged in 4WD.
Heavy-duty composite front carry bar and CV joint guards help prevent damage to boot covers and won’t dent or rust.

Yamaha Grizzly 450 4x4 Utility ATV Additional Features

Grizzly 700-inspired front-end styling boasts convenient water-resistant storage compartment on the front fender.
The water-resistant DC outlet is located to the side of the multifunction instrument panel for convenient access; automotive style receptacle handles a wide range of accessories.
Steel cargo racks with special, extra-durable wrinkle paint finish feature a combined cargo capacity of 264 pounds (88 front, 176 rear).
Available in Realtree AP™ camouflage with a water-dipped process for durability.
Large-capacity, 4-gallon fuel tank has a built-in gauge and easyto- reach petcock valve.
Water-resistant, large-capacity underseat storage box provides added convenience.
Wide, fully integrated floorboards keep rider’s feet dry and feature serrated footpegs for extra grip in wet conditions.
Large front and rear fenders with inner guards offer excellent mud/splash protection.
Easy-access, underseat marine-spec electrical components ensure maximum protection from the elements.
Dual, bright multireflector 30-watt Krypton bulb headlights with high and low beams; rear brake light.
Assembled in Newnan, GA, U.S.A.
