2014 Yamaha Grizzly 550 FI 4x4 IRS Auto Utility ATV Info - Features, Benefits and Specifications

NAVIGATION

Introduction | Grizzly 550 EPS | Specifications

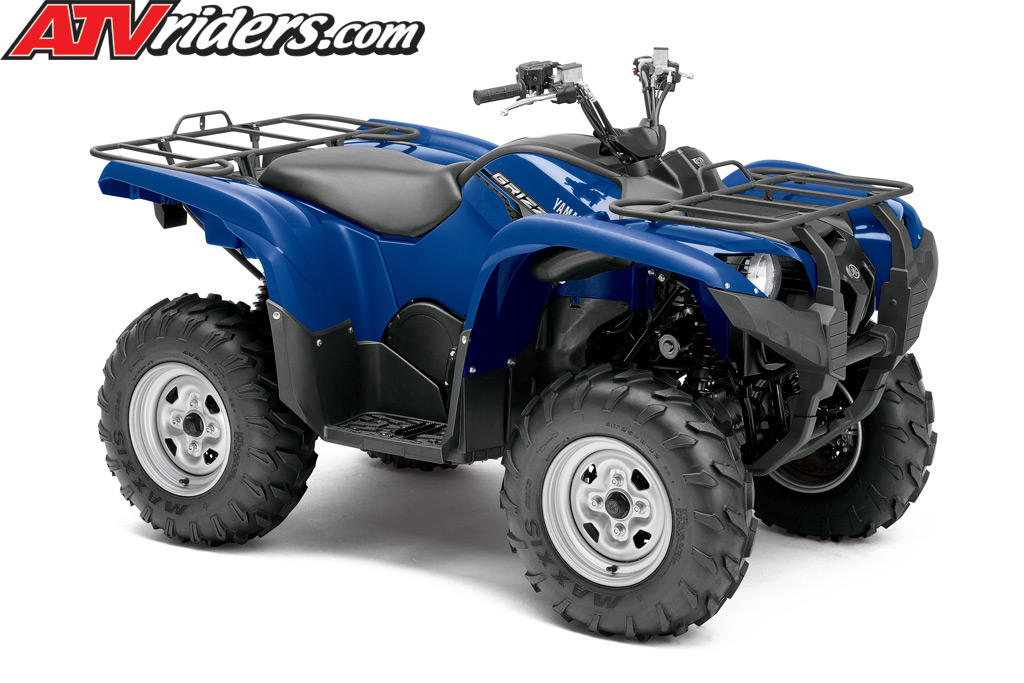

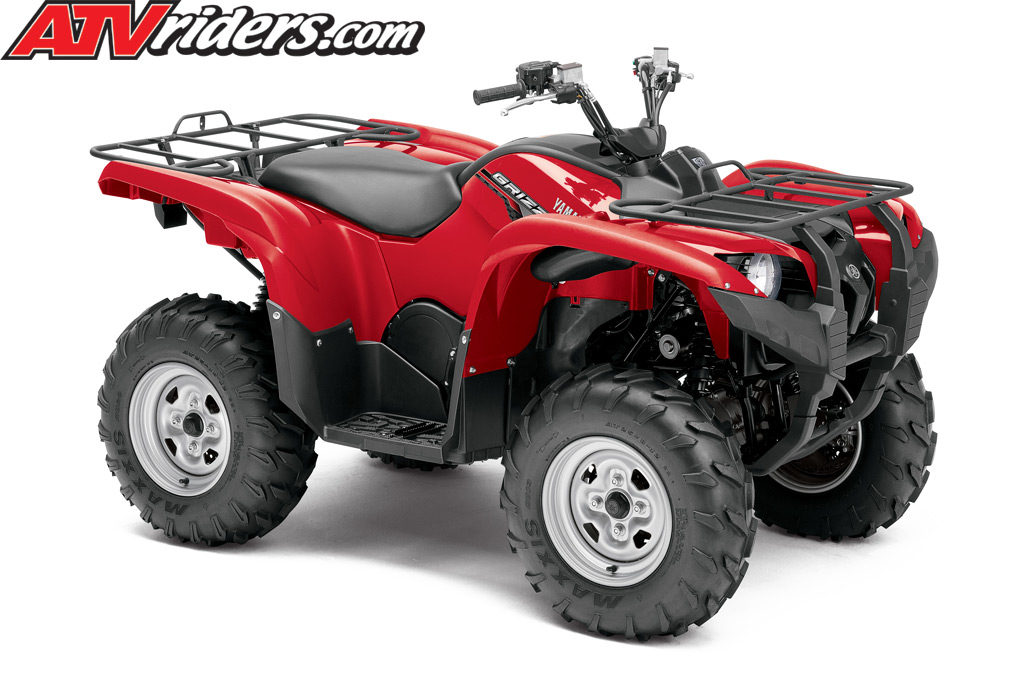

2014 Yamaha Grizzly 550 FI 4x4 Utility ATV - Red	2014 Yamaha Grizzly 550 FI 4x4 Utility ATV - Blue	2014 Yamaha Grizzly 550 FI 4x4 Utility ATV - Green

Yamaha Grizzly 550 FI 4x4 IRS Utility ATV Key Features

The 550cc class has a leader, with a fully featured package based on its best-selling bigger brother, the Grizzly 700 FI, with a largest-in-class 558cc powerplant, Electric Power Steering and excellent value.
Yamaha Fuel Injection means instantaneous cold starts and optimal performance in nearly any condition, from sea level to 15,000 feet.
Ultramatic transmission with dual-range (Hi/Lo) drive and reverse is the most advanced drive system available. An automatic centrifugal clutch maintains constant belt tension for reduced belt wear and uses a sprag clutch for all-wheel downhill engine braking in 4WD mode and reverse..
Three-position On-Command In/Out 4WD feature lets you switch between 2WD, limited-slip 4WD and fully locked differential 4WD—all with a simple push of a button.
Fully independent long-travel four-wheel suspension features double-wishbone suspension front and rear with five-way preload-adjustable shocks for maximum control and comfort over rough terrain. Smoothest-running and -riding Grizzly ever.
Advanced digital instrument panel boasts a multifunction LCD display with speedometer, odometer, dual tripmeter, hour meter, 4WD status, transmission position, clock and fuel gauge.
The Grizzly 550 EPS boasts the lightest weight in its class at only 648 pounds wet weight.

This 558cc 4-stroke SOHC 4-valve liquid-cooled engine is derived directly from the industry-leading Grizzly 700 powerplant.
Compact engine design features a 35-degree cylinder angle for ground clearance and lower seat height for quick steering and maneuverability.
Ceramic-composite cylinder liner provides outstanding durability and heat dissipation; 92mm forged piston is light and strong and rides on a carburized chrome-moly connecting rod.
Two-lobe overhead cam and a pair of needle-roller rocker arms reduce friction by 50 percent for increased fuel efficiency and torque.
Gear-driven crankshaft balancer shaft and 4-position rubber engine mounts reduce vibration.
Yamaha Fuel Injection uses a Mikuni 40mm throttle body and idle speed control valve to provide easy cold starts and flawless fuel delivery in nearly any condition, from below sea level to 15,000 feet.
Stainless steel exhaust system features aluminum heat shields and a screen-type spark arrestor for great power with minimum noise output.
High-capacity aluminum radiator with fan motor delivers maximum cooling efficiency and is positioned high in the frame for optimal protection.
Five-position shift lever with L, H, N, R and P gates has a light shifting feel with easy engagement, providing positive Ultramatic transmission
Specially designed drive system air intake helps prevent over- heating and assists in keeping water and debris from entering the drive case.
Oil access cover allows easy access to check oil level.

Full-size chassis provides the same high level of comfort enjoyed by Grizzly 700 riders.
Gas charged rear shocks offer a quality damping feel and excellent performance over a long period of time.
Front and rear lower A-arm guards offer excellent protection — and Grizzly 550 features WideArcTM front A-arms for outstanding ground clearance that’s 5 inches wider than that provided by ordinary designs.
Gas charged rear shocks offer a quality damping feel and excellent performance over a long period of time.
25x8-12 front and 25x10-12 rear Maxxis® tires provide responsive steering and handling and excellent comfort.
Direct driveshaft design efficiently transfers power while providing outstanding durability with less vibration.

Yamaha Grizzly 550 FI 4x4 IRS Utility ATVAdditional Features

Center-mounted, heavy-duty trailer hitch comes standard and can tow more than 1300 pounds.
Rugged steel cargo racks with special, extra-durable wrinkle paint finish can pack a total of 286 pounds combined (99 front, 187 rear).
Large, specially designed seat is extra plush and widely contoured for all-day rider comfort.
Center-mounted, heavy-duty trailer hitch comes standard and can tow more than 1300 pounds.
Dual 35-watt multireflector halogen bulb headlights with high/low beams provide bright illumination for nighttime work or play.
Assembled in Newnan, GA, U.S.A.
