2014 Yamaha Grizzly 700 FI Auto 4x4
Utility ATV - Specifications
|
|

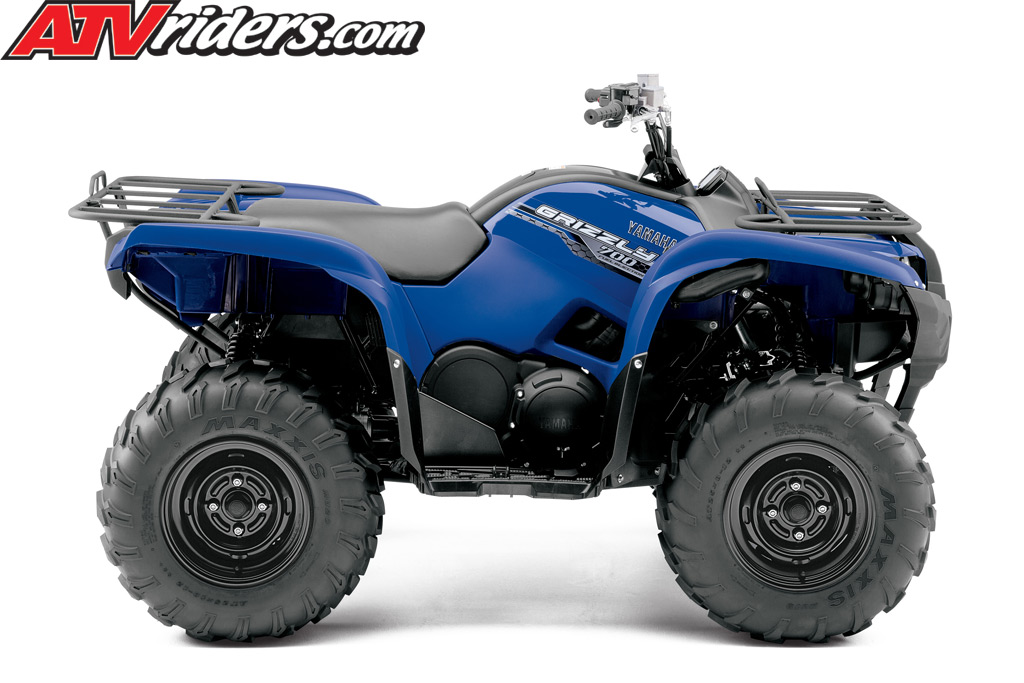

2014 Yamaha Grizzly 700 FI 4x4
Utility ATV - Blue |

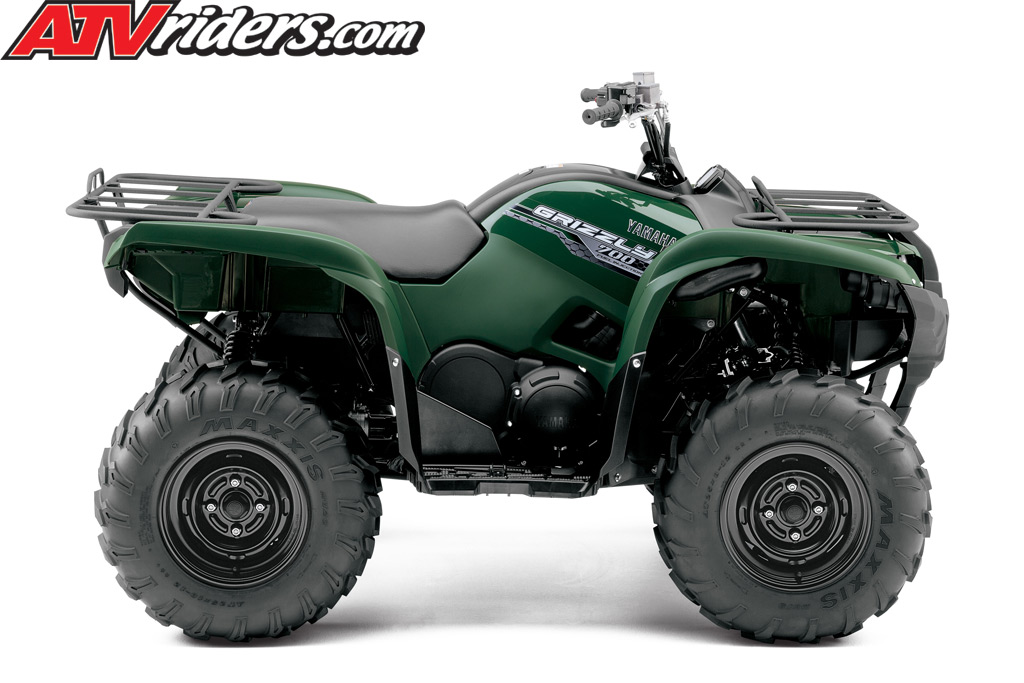

2014 Yamaha Grizzly 700 FI 4x4
Utility ATV - Green |
Yamaha Grizzly
700 FI ATV Specifications:
|
| Type |
686cc, 4-Stroke
Single, Liquid Cooled w/ Fan, SOHC
|
|
| Bore
x Stroke |
102mm x
84mm |
|
| Compression
Ratio |
10.0:1 |
|
| Carburetion |
Yamaha Fuel
Injection (YFI), 44mm |
|
| Ignition |
32 Bit ECU |
|
| Starting
System |
Electric |
|
| Transmission |
Yamaha Ultramatic®
V-belt/H, L, N, R, P |
|
| Engine
Braking |
All wheel |
|
| Drive
Train |
Yamaha On-Command®
pushbutton 3-way locking differential, 2WD,
4WD, locked 4WD; shaft |
| |
|
| |
| Suspension/Front |
Independent
double wishbone, 7.1” travel w/5-way
preload adjustment |
|
| Suspension/Rear |
Independent
double wishbone, 9.2” travel w/5-way
preload adjustment |
|
| Brakes/Front |
Dual hydraulic
disc |
|
| Brakes/Rear |
Dual hydraulic
disc |
|
| Tires/Front |
AT25 x 8-12
|
|
| Tires/Rear |
AT25 x 10-12 |
| |
|
| L
x W x H |
81.3"
x 46.5" x 48.8" |
|
| Seat
Height |
35.6" |
|
| Wheelbase |
49.2" |
|
| Turning
Radius |
126" |
|
| Ground
Clearance |
10.8" |
|
| Fuel
Capacity |
5.3 gal. |
|
| Dry
Weight |
648 lb. |
|
| Rack
Capacity |
99 lb. front/187
lb. rear |
|
| Towing
Capacity |
1,322 Lbs. |
| |
|
| Instrumentation |
Digital
LCD Multi-function display. Speedo, Odo, Dual
Trip, Hour, Clock, Fuel, and Gear Position |
|
| Lighting |
Dual 35W
Halogen Multi-reflector Headlights & 21/5W
Brake light |
| Color |
Steel blue, Hunter Green, Red, Realtree AP HD Camo |
www.Yamaha-Motor.com
|
|
|
|
|
|
|
